Warp-free, lightweight, insulated honeycomb panels

Pricing | Get an Estimate

Architects, Trade Professionals, and Wholesale

Free instant on-screen shop drawing when you fill out length, width, thickness.

Click “View Shops” + instant 3D preview.

See? Panel or post and beam… Just the same, only different measurements.

If the request form is not above, click here.

You will automatically receive SingCore promotional emails.

Opt out at any time. SingCore will never sell your information.

Please Note: Standard lead times are 6-10 weeks. Rush orders are available if required. No “Will Call” pick-up orders.

RUSHED PRODUCTION SCHEDULE

Every order SingCore manufactures is custom made, so please bear that in mind in regards to your project’s timelines. If you require a rush order, rush fees are as follows:

  • Ship in 4 weeks – 20% price increase
  • Ship in 3 weeks – 40% price increase
  • Ship in 2 weeks – 70% price increase
  • Ship in 1 Week – 100% price increase

SING CORE GRADES

Sing products are available in your choice of three formats to accommodate your specifications and expectations:

  • Standard: The strongest, lightweight Eco-friendly building material invented
  • Professional: Specially formatted for non-warp performance, guarantee for 50 years
  • Hot Press Ready: Hot-press-ready (for thin veneer)
  •

INSULATION VALUE

  • R-value 3.5 (EPS foam) per inch
  • R-value 5.7 (urethane foam) per inch

SOLID WOOD EDGE AND LOCK BLOCKS

Customizing options that can help make your order more specific are size and location of internal wood (or other specified material) such as implants, stiles and/or rails (solid wood edges on 4 sides of the Sing panel) and lock blocks or nailing points for adding siding over the surface of the Sing panel. The best way to show us what you need is to by provide us with a simple drawing to show the locations of hard points.
How to block for hardware

SKIN CHOICE (SURFACE MATERIAL)

There are many options for Sing Core panels. (See: Material Options)

  • Paint Grade: 1/8 inch or thicker plywood, MDF, Masonite, laminate, or metal
  • Metal: .20 inch to .125 inch aluminum, cold rolled steel, galvanized steel, stainless steel
  • Wood Grain: Thin wood veneer .020 inch on top of .125 inch mdf over top of Sing panel
  • Wood Stave: .125 inch applied over the top of aluminum the Sing panel substrate or on top of the .125 inch mdf over the top of the Sing panel
  • FRP Fiberglass
  • Galvanized steel
  • Aluminum
  • HPL Formica
  • Masonite
  • Cold Rolled Steel
  • Hot Rolled Steel
  • Magnesium board
  • Marine grade plywood
  • MDF
  • Metal
  • Plastic
  • Stainless steel
  • Fiberglass
  • Concrete
  • Ceramic

WINDOW AND DOOR CUTOFFS

Sing Core provides Sing panels with window and door pre-cut and ready for installation. We will cut 1/8 larger in width and 3/16 inch wider in length to fit your window glass. We build a frame using 1.25 inch solid wood to your specifications.

MOLDING/TRIM

Sing Core windows and doors are profile ready for CNC routing. You may add molding or trim to create your own window or door design, otherwise we will provide you with thicker skin – such as 1/4 inch or thicker MDF, hardboard, etc. – for you to carve or profile by CNC machine. With Sing Core windows and doors you can create a true raised-panel door or any design you desire.
How to add trim to make a stile and rail aesthetic on a SingCore Door

TRIMMED OR UNTRIMMED (RAW EDGES)

The standard ready-to-ship panel condition is, “untrimmed.” This leaves unfinished exterior edges that may have exposed adhesive and might require being built ½ inch over-sized for trimming at your location. An additional fee will be assessed for trimming and sizing in our factory.

All untrimmed edges are 1/2 inch over width and 1/2 inch over length. After trimming, your Sing Panel will be 1/2 inch less (4 x 8 will be 47.5 inch x 95.5 inch). Standard solid wood edging with 1.5 inch will be reduced to 1.25 inch after trimming.

UNTRIMMED PANEL (RAW)

Many of our customers prefer their panels untrimmed because this allows them to trim their panels to exact size on site before installing them in their door openings.  That way they can have the peace of mind that their door will fit the opening exactly as intended.

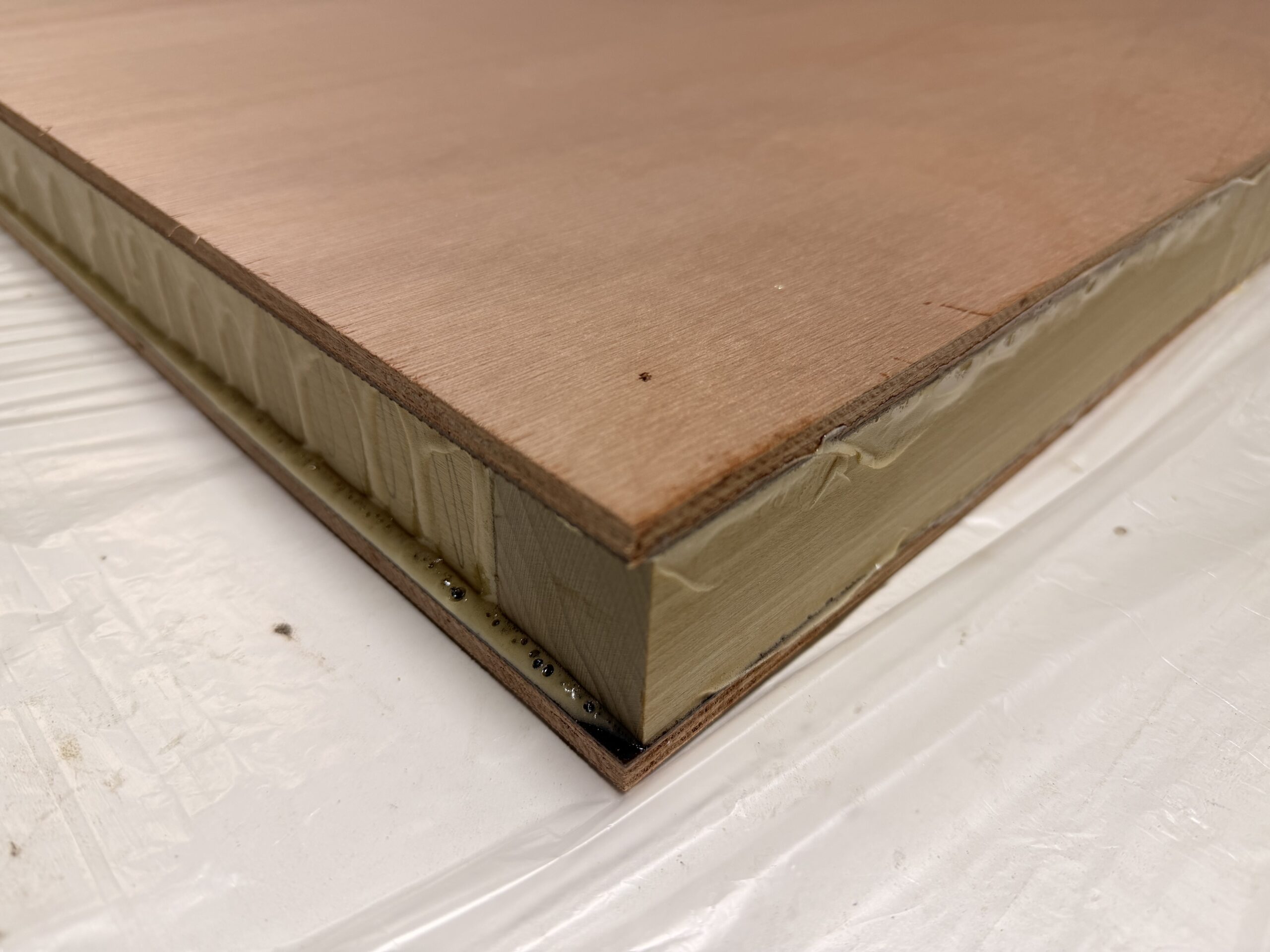

Plywood Skin Untrimmed Panel Corner With Solid Wood Edge

Plywood Skin Untrimmed (Raw) Panel Corner With Solid Wood Edge

TRIMMED PANEL

Customers who want their panels cut to exact size before they receive them should choose the trimmed selection.  This gives them the option of doing less work on site, but it also means they must be much more precise with their measurements before ordering their panels.  Trimmed also costs slightly more because it is more labor intensive to trim the panels in house.

Plywood Skin Trimmed Panel Corner Solid Wood Edge

Trimmed plywood panel with solid wood edge

SING PANELS FEATURES

SING CORE PRECISION

Sing Panels are + and – .006 inch, so with your CNC machine profile you will have the most amazing detailed door design.

WEIGHT

Sing Core panels weigh only 4 to 5 pounds per cubic foot.

COMPRESSION STRENGTH

Our 1-inch small grade panels have been tested to reach 660 psi.

SING PANEL INSULATION

Sing panel cores contain urethane form R 6.5 per inch and EPS form 3.5 per inch insulation.

SOUND-DEADENING

Sing panels, with proper skin design, will reach stc 56.

BULLETPROOF RADIATION-PROOF DOORS

Sing panels are sold to the major specialty door manufacturers to achieve special demands such as bulletproof, radiation-proof, etc.

WARRANTY

Sing Products come with a limited lifetime guarantee. (See http://singcore.com/education/warranty)

OUR 50-YEAR NON-WARP GUARANTEE

All doors are guaranteed to stay true flat for 50 years. This service is only available to trade professionals.

SING CORE TERMS

All orders are subject to Sing Core’s Terms of Service.
