Patented Sing Plywood (PSP)  is engineered plywood and PSP Panels are the main course of Sing Core technology. The benefits of this lightweight, super-strong green building material is the penacle of our process. Leading the way in thousands of applications that can benefit from this new revolution Patented Sing Plywood and Sing Panels are replacing old, solid, overweight building materials that are not created using the same green manufacturing process as Sing Core.

SingPlywood

Sing Core is created using less energy, less manpower in less physical space and produces less waste than other building materials.

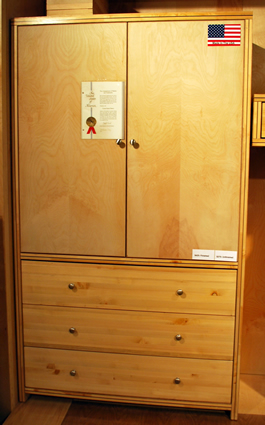

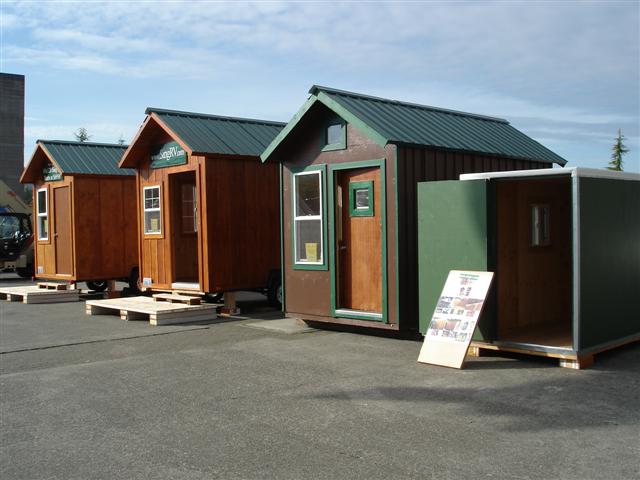

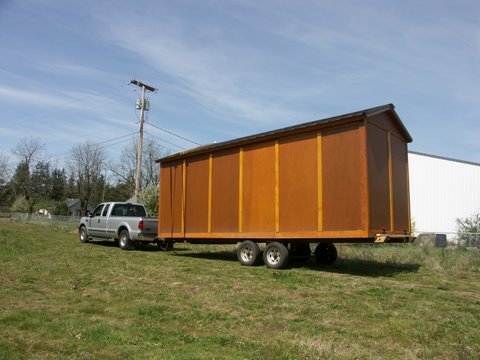

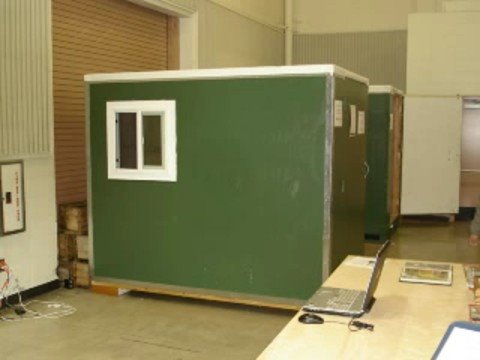

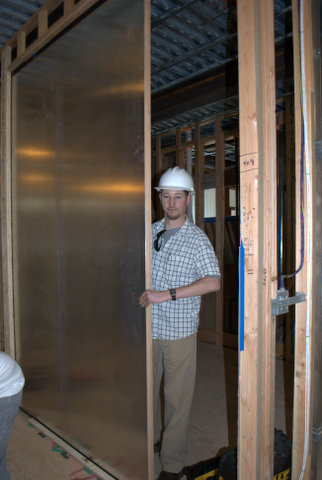

Patented Sing Plywood enables you to use a lightweight, strong, wooden honeycomb panel empowering you to create anything from basic furniture or large sliding doors to create affordable housing with unparalleled longevity. But PSP is less expensive and more environmentally friendly. As unbelievable as it may sound, PSP gives you an incredible advantage over other types of traditional plywood. This new and innovative building material is so much more than lightweight, strong, and durable; it is long lasting, reliable, simple, and affordable.

With an appearance identical to traditional plywood, the physical characteristics are nothing short of shocking in comparison, as Patented Sing Plywood is stronger than steel pound-for-pound, more lightweight than any plywood or solid building material (1/2 the weight of standard plywood or less) and more true flat than any plywood available on the market.

Sing Plywood Comparisons Based on 2″ x 2″ Grids

Sing Plywood Foam Aluminum Balsawood Nomex Plastic Cardboard
Insulation x x x x x
Sound Deadening x x x x x
Lightweight x x
Strength x x x
Solid x x x x
Eco-friendly x x x x
Renewable x x x x
Oversize x x x x x x
Dimensionally Stable
Affordable x x x x x
Waterproof Upgrade? x x
Fire Retardant Upgrade? x
Bullet-proof Upgrade x x x x x
Thickness Available x x x x x x
Skin Options x x x x x x
Easy to Machine x x x x x x
Fast Turnaround x x x x x x

Insulation: Sing Core has built-in insulation value with an R3 to R6.5 rating per inch, depending on client’s needs/specifications.

Sound deadening: Sing Core’s filler material has natural sound-deadening properties. Other sound-deadening options are available at customer request.

Light weight: When compared to other materials Sing Core weighs much less, as much as 50% less, or more, as little as 4 lbs. per sq. ft. yet eco-friendly. This advanced technology used in the aviation industry is now available for use in your home.

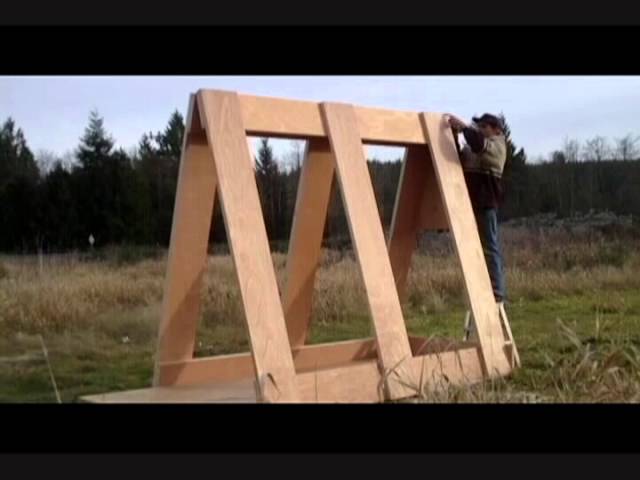

Strength: Sing Core based on 2″ x 2″ grids and 3/4″ thick = 660 PSI. For instance, aluminum 3/8″ grids = 30+ PSI (smaller grids should be more strength). Sing Core’s superior strength comes from its advanced torsion box design.

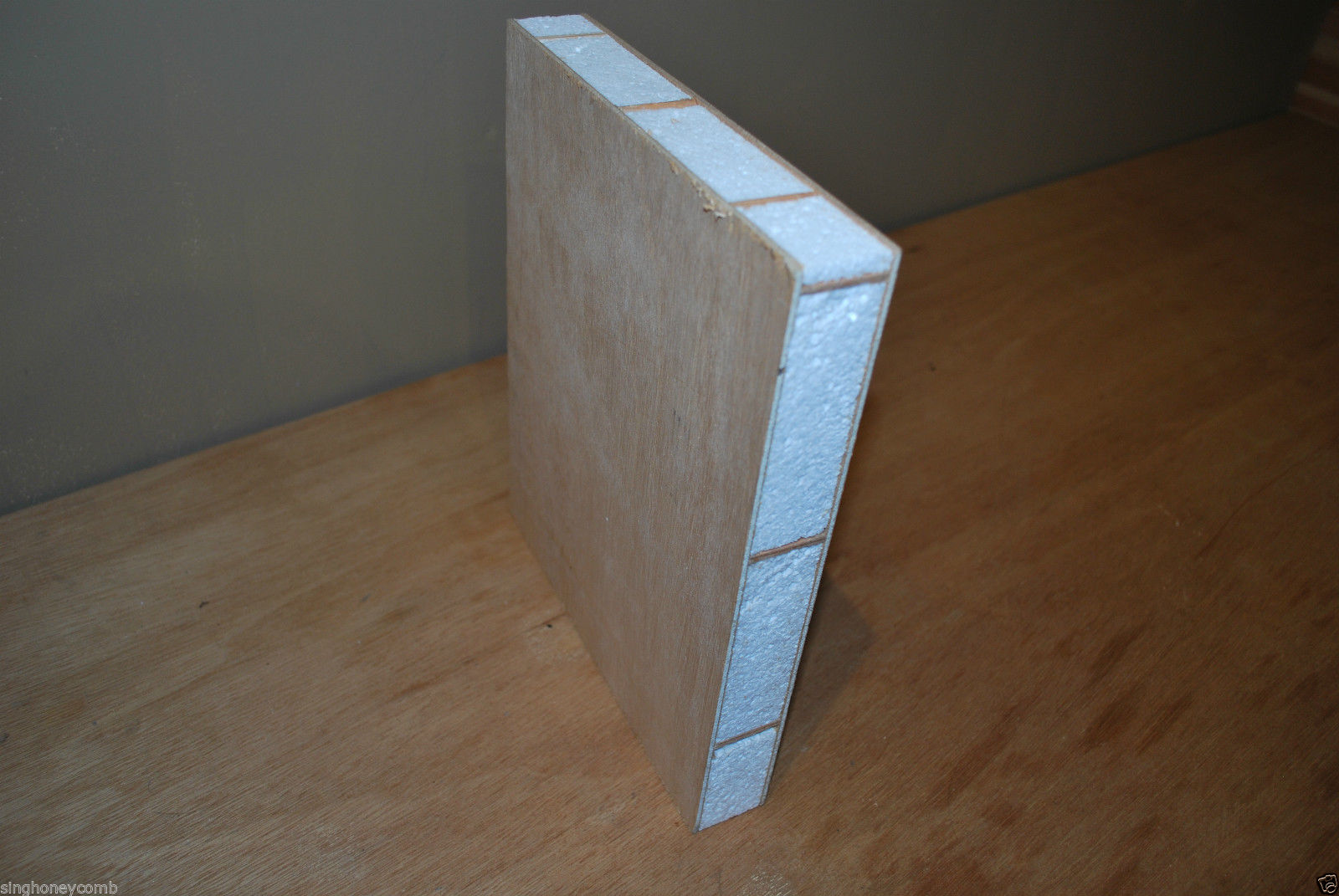

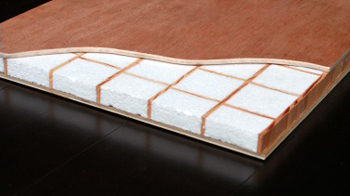

Solid: Sing Core is solid like a rock. While the vertical wood grain torsion box core may be compared to other hollow honeycomb cores, the Sing Core voids are not hollow as they are bonded wall-to-wall and filled with recycled foam for a strong, solid substrate.

Eco-friendly: Sing Core is manufactured using natural wood fibers, no formaldehyde, or toxic chemicals, is created using less energy than any other core material with little or no waste.

Renewable: The structure of Sing Core is 100% renewable (nature-grown) clean fiber and/or recycled material.

Oversize: Sing Core excels in area of large oversize products due to its unique properties and can be up to 50 foot length.

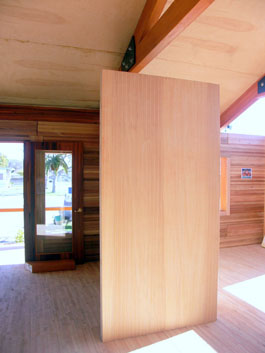

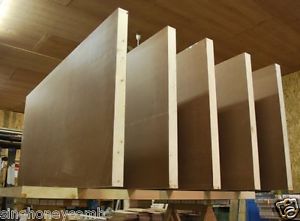

Dimensionally stable: Sing Core is the most dimensionally stable building material allowing us to create large, oversize products (i.e., doors, up to 50 ft.) that are true flat exceeding AWI standards and can be guaranteed to be true flat. Large oversize panels can be truly dimensionally stable without any movement due to temperature and moisture change.

Affordable: Even though Sing Core technology is used in high-end applications, we make it affordable for broad use in a large number of applications. Sing Core performance is comparable to any high-end core but could be as little cost as low-end wood product core.

Waterproof upgrade: Sing Core is available in waterproof upgrade, to accommodate your specific water resistant requirements.

Fire retardant upgrade: When used in fire retardant applications, the Sing Core fire retardant door is the lightweight, super-strong, eco-friendly alternative.

Bullet-proof upgrade: In high-security end products, most cores used in bullet-proof applications are heavy in weight, causing strain on the infrastructure, unlike Sing Core.

Thickness available: Sing Core is readily available in many thicknesses, up to 6 inches in standard thickness, with custom thicknesses available.

Skin options: Available in many different exteriors including (but not limited to) aluminum, cement board, cold roll steel, concrete, ceramic tile, fiber glass, galvanize metal, glass, MDF, metal, plastic, plywood, solid wood, stainless steel, etc…

Easy to machine: Sing Core is easy to work with in the shop or on-site for sawing, sanding, adding solid wood implants, gluing, cutting and fastening.

Fast turnaround: In you’re in a rush, only Sing Core can be custom made within 24 hours and is proudly manufactured for you in the USA.

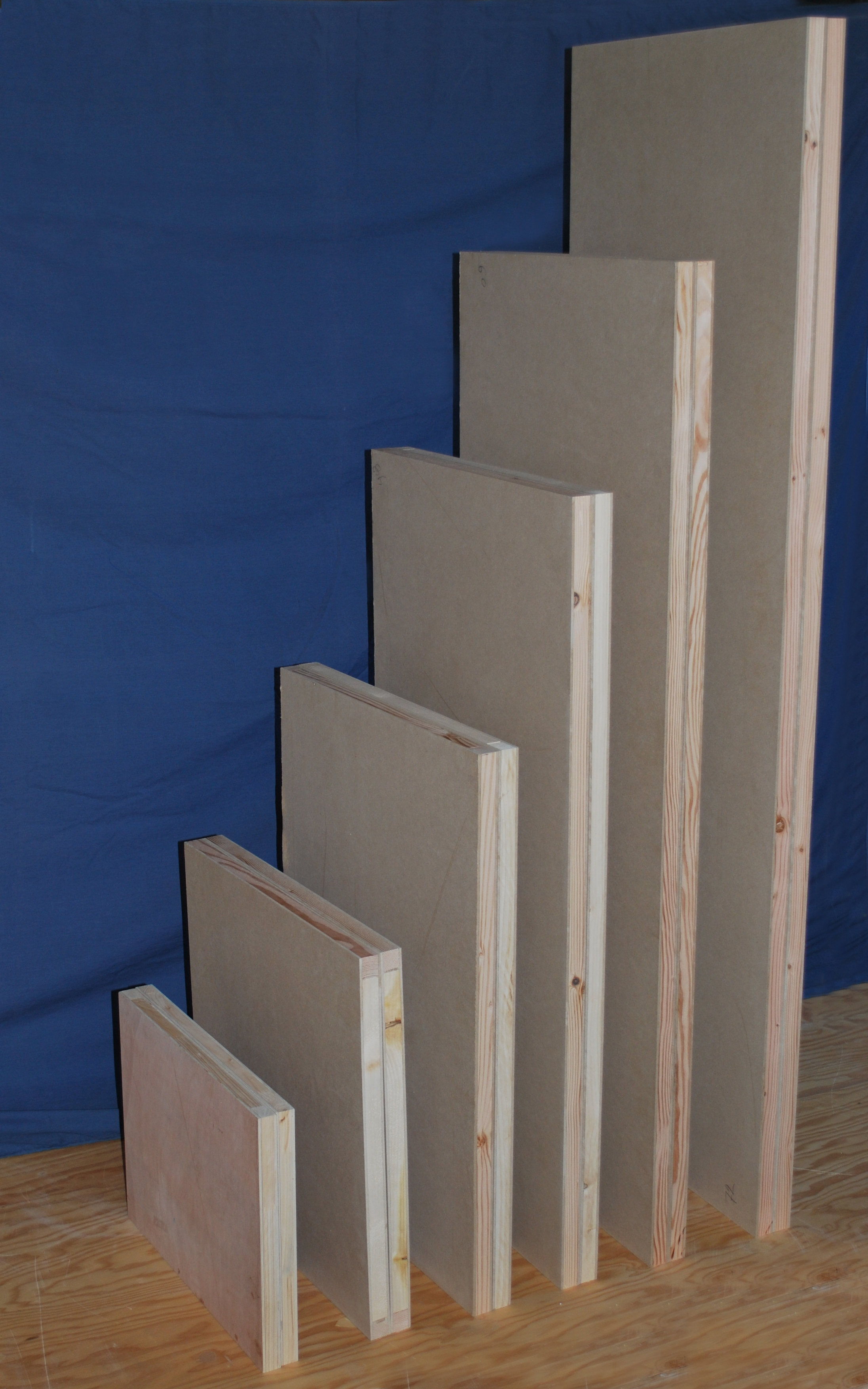

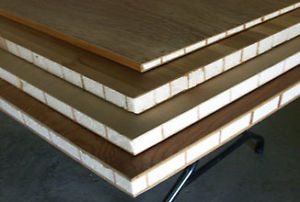

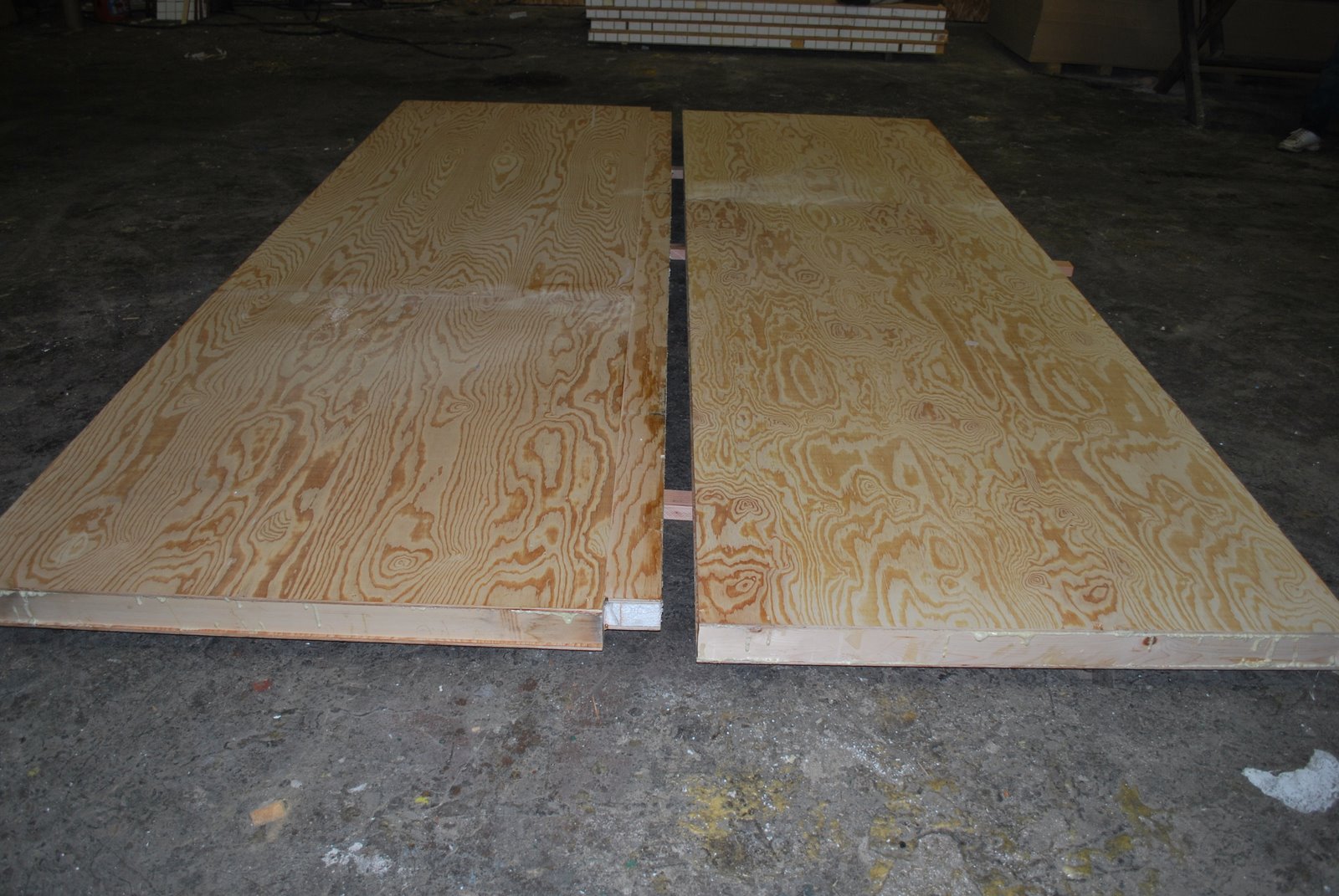

Patented Sing Plywood Dimensions:Plywood

  • wide range of sizes
  • custom to any size from 1 ft x 1 ft to 12 ft x 48 ft
  • available in large almost seamless oversized panels
  • as large as 12 ft wide x 48 ft in length
  • as thin as 1/2 inch
  • Can be as much as 6 inches thick

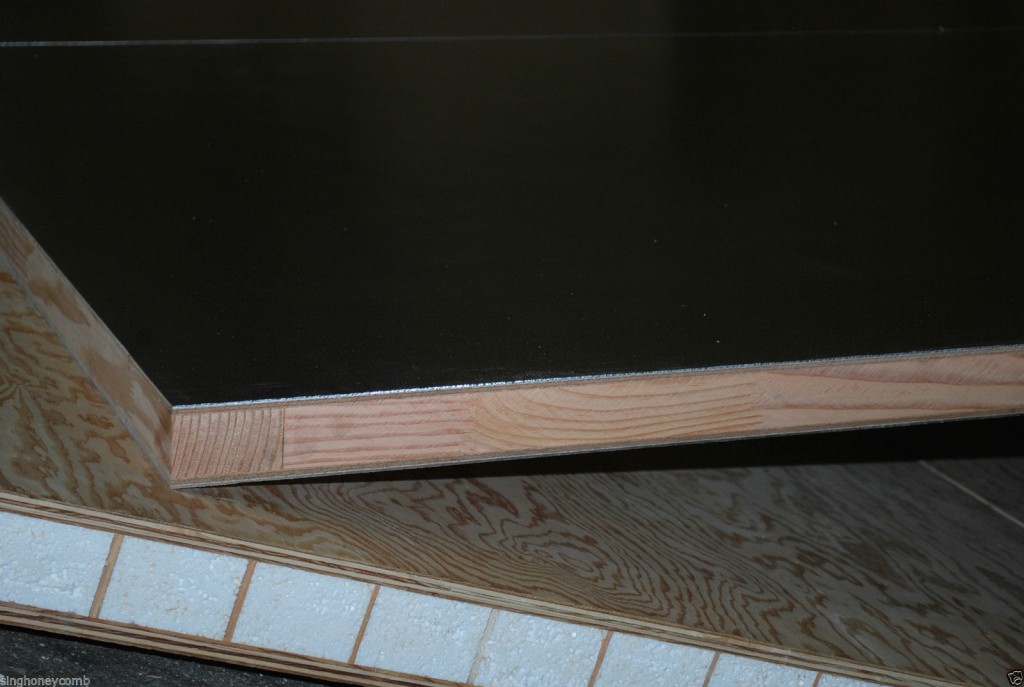

Patented Sing Plywood Skin Options:



  • Plywood
  • Any solid wood
  • MDF

For other non-wood finish skin options, see Sing Panels

Applications of Patented Sing Plywood:

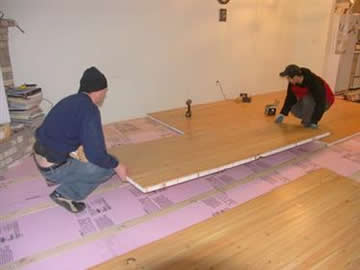

Use as substrate to glue hot press veneer, cold press wood staves, with proper glue, adding skins of any material such as aluminum, metal, fiber glass, plastic, engineered wood, cement board, or paint ready for doors, table tops, walls, floors, ceilings … see Sing Products.

Think about it…

Why use thick plywood- that can be difficult to construct with- when you can use the versatile Patented Sing Plywood’s engineered wood? Through Sing Core, you will have the components to be able to build thousands of Sing Core products, with eco-friendly touch sustainability.

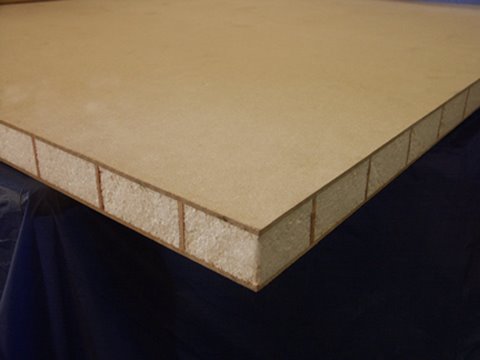

Patented Sing Plywood is Sing Core enclosed and framed with solid wood on four exterior edge sides, any solid implants are pre install before enclosure by top and bottom wood panels.

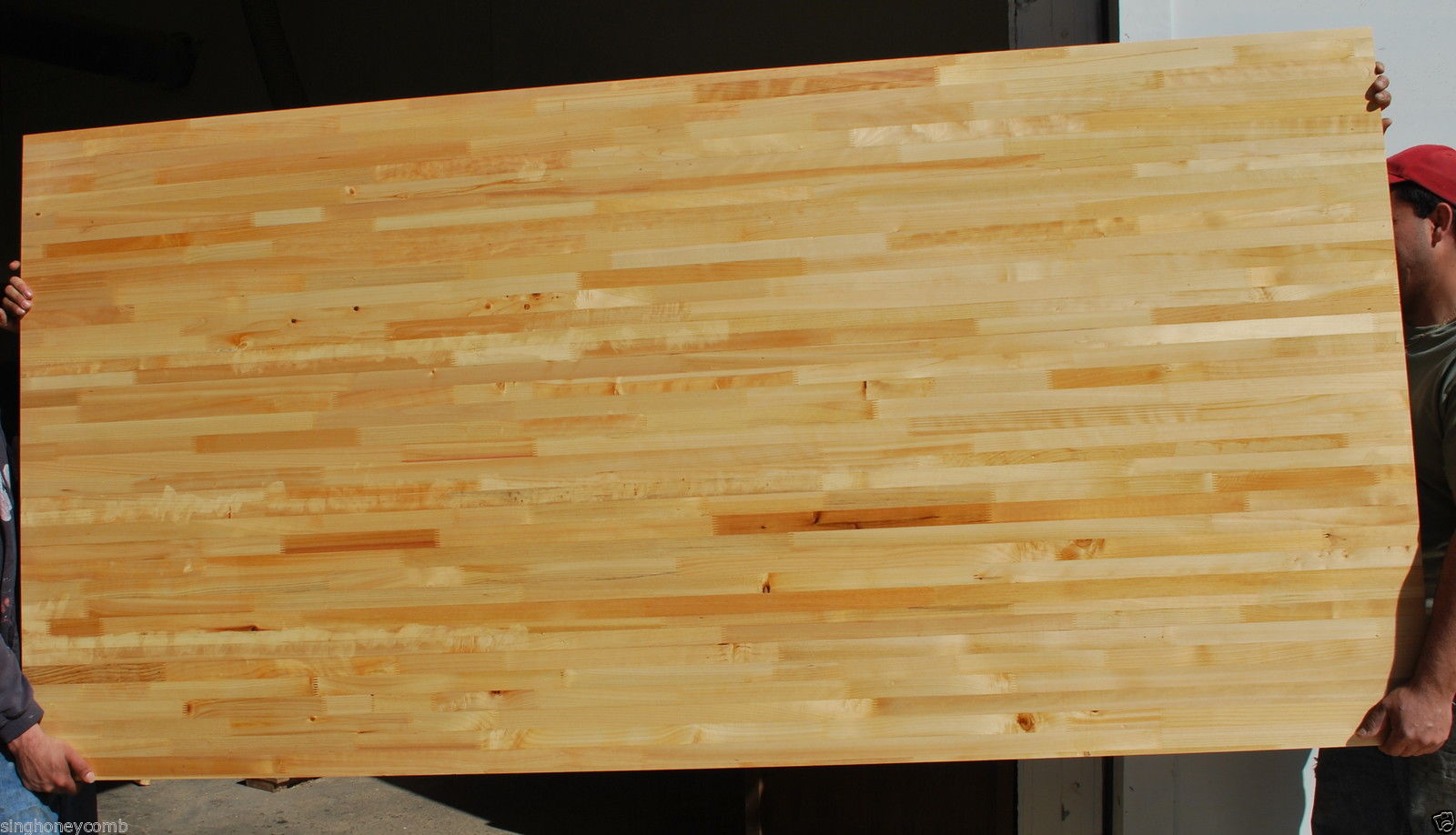

Add the elegance of solid wood butcher block to any project lightweight high strength

Sing Butcher Block

Available in Sing Butcher Block

Engineered Wood and Engineered Plywood is available in nearly any flat surface material to meet or exceed your architectural specifications including our patented non-warping wood butcher block that could be used for almost anything. See: Butcher Block for ideas.

Easy Ordering

All we need to know is the length, width, thickness and what you desire on the exterior, and your custom specialty panels are made to order. Getting a quote for your specialty product, is easy, thanks to our simple online order system.

Bulk Discounts

If you’re looking for a bargain price, remember, the more you order, the less expensive your total order will be per piece. Quantity and wholesale inquiries are encouraged. Feel free to contact us for more information. Click here for Closeout specials.

See Other Skin Options: Sing Wood, Sing AluminumSing Metal Panels , Sing Cold Rolled Steel Panels, Specialty Panels
