Door Drawing

Looking for a door drawing? Look no more because we’re providing you with a free door sketch online just by visiting this page. On that page you can enter your doors specifications and see an immediate 3D rendition of your door rotating on screen. If you like the 3D preview of your door, you can then click on VIEW SHOPS to view, save, or share your door drawing.

This functionality is embedded in Sing Core’s pricing page, but you do not have to submit a price quote to access the power of this user-friendly simple door drawing software.

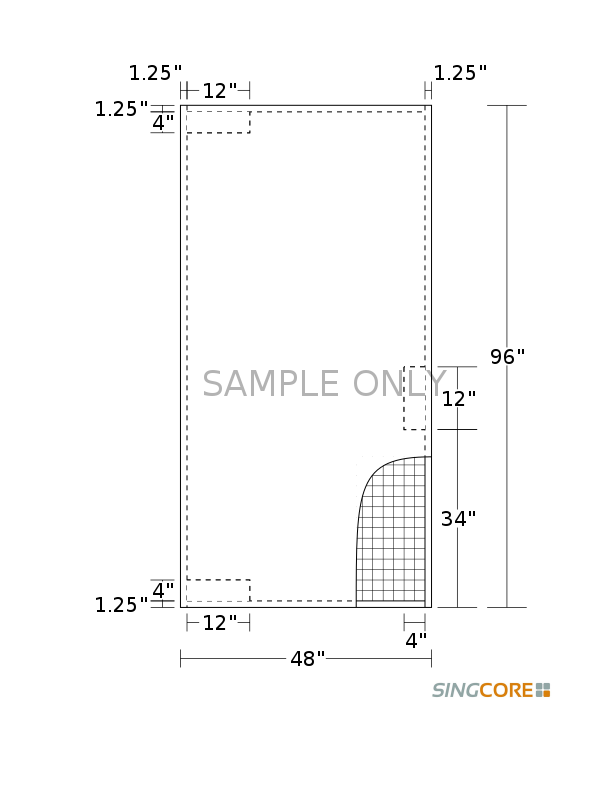

This is how you can make your door drawing easy as entering your door’s measurements, height, width, and thickness, then selecting a door skin. The resulting is a complete door drawing with dimensions, which will help greatly in you’re getting the door that you want, even if it doesn’t have Sing Core inside.

We understand that not all doors need to have Sing Core inside, unless they are over 7 ft. tall and/or 3 ½ ft. wide, but still, the owner/inventor Peter Sing wants to share his software with you, nearly as much as he’d like to see his patented and patent-pending Eco-friendly lightweight, high strength, and fully insulated building material inside every home.

He hopes you’re able to use his online simple door drawings, which admittedly aren’t the fancy door drawing you might receive for your high-end custom door, but the intention is to make it easier for you to get your free door shop drawings, which are far better than just a simple door sketch.

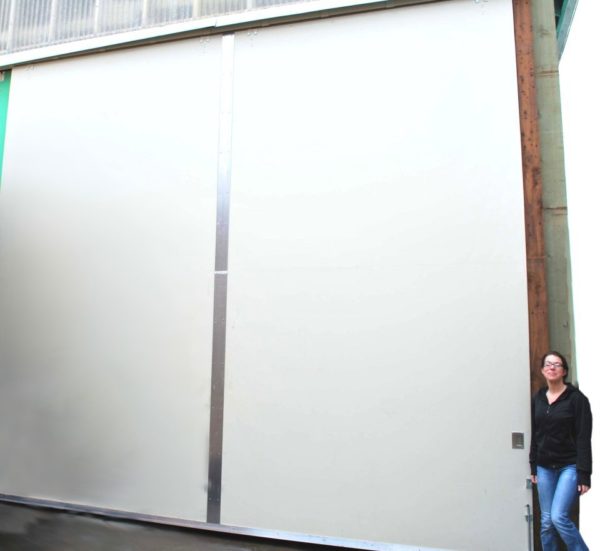

Sing’s specialty is large doors. He provides his patented and patent-pending large door building technologies to the biggest and best door manufacturers, millworks, and custom door builders, enabling them to build enormous doors, up to 50 ft. or more, that are lightweight, high strength, and can be guaranteed to remain warp-free for 50 years.

Building most any kind of large oversized Eco-friendly lightweight high strength door that doesn’t warp is virtually impossible, unless it has Sing Core inside.

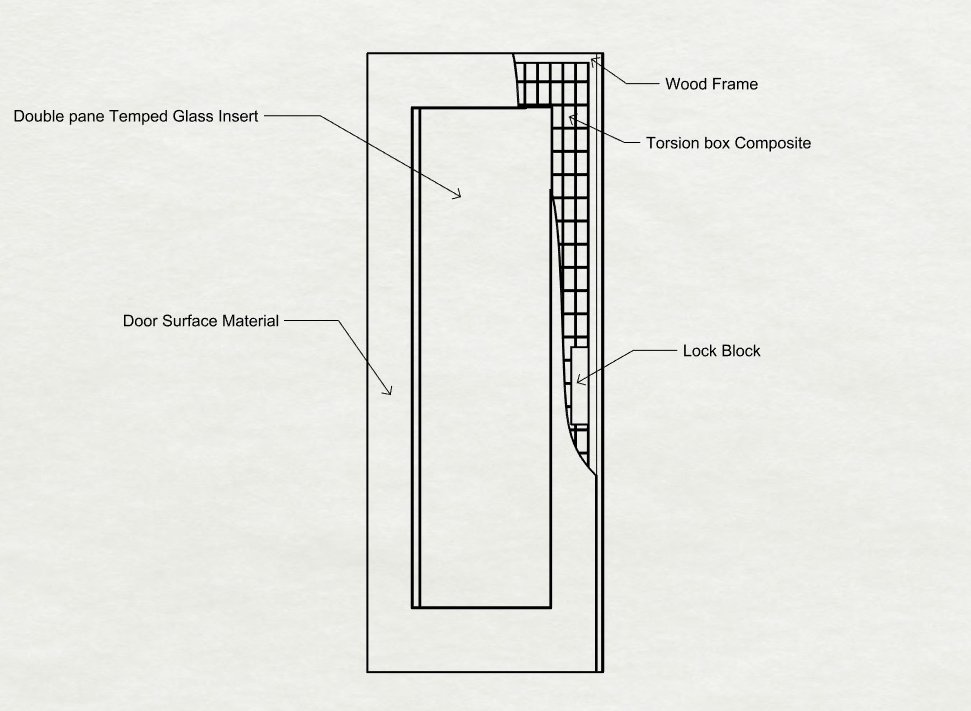

Note that the free door drawings will each represent a flush door drawing which may include a wooden door section detail, or may host other exterior surfaces, such as, aluminum, cold rolled steel, fiberglass, FRP, galvanized steel, hot rolled steel, HPL, or stainless steel, just to name a few.

If you will need glass window lite openings included in your drawing, you will have to annotate those by hand, as this feature is currently unavailable wit your free door drawing.

In this manner you don’t have to worry about how to draw the door as you can use the Sing Core method to provide you with a drawing of a door       which you can then modify to meet your door’s specifications.

Of course, this is not a custom door drawing, but it will indeed get you in the ballpark, certainly enough to express your intentions to get the door you want without having to pay for a professional door technical drawing, and you did it without any expense by taking advantage of Sing’s free custom door drawing online.

No Comments

Basic Sing Door Spec Drawings

The following are standard drawings of doors which you can print and/or modify for marking up your specifications as an alternative to paying for professional shop drawings.

Hinged Door

Pivot Door

Sliding Door

Splined Door

Doors with Professional Sing Core inside are the only Eco-friendly doors that can be guaranteed to remain warp-free for 50 years, including full structure warranty.

Thank you for trusting Sing Core with all your lightweight high-strength door needs for any type or style of door in any size made of any flat building material.
