Standard Pre-hung French Door Specs

General Specifications

Standard insulated French door pre hung door marine grade plywood fiberglass aluminumStandard Sing Core pre-hung doors are manufactured with patented Sing Core material as the base interior substrate of the door. The Sing Core substrate material is created using a vertical grain natural wood torsion box design while the traditionally empty voids are filled wall to wall with recycled foam. The standard foam material is recycled rigid EPS foam. A 10 inch natural wood lock block is positioned centered at 37 inches for door knob and locking mechanism placement. The core material is wood framed by 1.5 inch natural wood for finishing strength and attaching hardware. The torsion box is completed by adhering an exterior surface material (skin) in your choice of marine grade plywood, fiberglass (FRP) or aluminum. Bonding agent used in adhesion of the entire composite material is formaldehyde-free.

Standard Sing Core Pre-hung Doors include frame perfectly suited for the door of your choice and ready to hang. Specify either 2×4 or 2×6 wall thickness to determine frame size for door installation.

Every Sing Core manufactured door is finished to specifications and guaranteed for 10 years for structural integrity.

Detailed Specifications:

Scope: Subject to local building codes, the standard Sing Core door is intended for use in:

  • Single family dwelling interior applications
  • Multifamily dwelling, low-rise professional office, library and low-rise motel interior applications
  • Lighter use industrial building and factory, hotel and retail sales building interior applications

Product Description: 1.5” or 2.25″ side-hinged door panel manufactured by Sing Core with frame, pre-hung.

  • Door component includes paint-grade door panel and frame for 2×4 or 2×6 wall installation

Door Panel Materials: Sing Core doors are manufactured using Eco-friendly cold-press process. Composite materials include:

  • Sing Core vertical wood-grain torsion substrate filled with recycled EPS foam
  • Core material is framed with wood stiles and rails
  • Facings are your choice of marine grade plywood (1/4 inch), 0.09 fiberglass (FRP) or aluminum (.62)
  • Formaldehyde-free bonding agent is used for adhesion of all components

Interior Blocking: Solid wood implant is inserted for door knob and/lock block hard points.

Glass Insert:

  • Single lite opening
  • Dual pane clear tempered glass insert
  • Glass dimensions: 32″ French door =  64-3/4″ x 18″,  34″ French door =  64-3/4″ x 20″,  36″ French door = 64-3/4″ x 22″

Pre-hung Includes:

  • Preassembling of jamb and threshold
  • Mortised and attached hinges
  • 3º bevel on lock side
  • Door is fit and installed into the jamb

Delivery: Reasonable care is taken to ensure safe transportation of your Sing Core door from factory to door shop for finishing and pick-up or deliver to your location.

Storage and Protection: Store your Sing Core door in an upright position and allow to acclimate to room temperature following shipment receipt or prior to finishing or installation.

Preparation: Per manufacturer’s specifications, ensure that door frame openings are constructed plumb, true and level prior to installation. Select fasteners of adequate type, number and quality to assure proper function.

Installation: Installer shall be specialized in the installation of the type of work that is associated with the project and will comply with manufacturer’s installation policies and procedures to ensure proper end use.

  • Verify that hinging and latching assemblies operate freely and correctly

Finishing: The standard finishing and sealing of the Sing Core pre-hung standard door includes Marine grade plywood is paint grade, fiberglass in pre-primed, and aluminum is untreated. Additional finishing options include your specifications at additional charge.

Machining: Sing Core doors are easy to work with in the millwork shop for CNC machining or on-site for finishing, sawing, sanding, cutting and fastening. No specialized skills or equipment is necessary, other than standard woodworking tools. Treat Sing Core doors just like you would any other standard door blank.

Strength Performance: Patented Sing Core has an unsurpassed strength as compared to other lightweight substrate materials tested at 660 PSI (based on 2″ x 2″ grids and 3/4″ thick) for superior structural integrity and is resistant to warp, twist and crack when compared to other materials.

Light Weight Performance: Sing Core weighs much less than other traditional building materials, as much as 50% less; or more, as little as 4 lbs. per sq. ft. yet sustainable and true green technology.

Insulation Performance: Standard Sing Core doors feature built-in insulation value with an R3 rating per inch.

Acoustical Performance: Sing Core standard doors have a natural sound-deadening quality for noise control. Standard sound transmission class (STC) is 30*.

Eco-friendly: Sing Core is manufactured using natural wood fibers, no formaldehyde, or toxic chemicals, is created using less energy than any other core material with little or no waste. The structure of Sing Core is 100% renewable (nature-grown) clean fiber and/or recycled material.

Warranty: Sing Core manufactured doors are structurally guaranteed for 10 years under normal conditions.

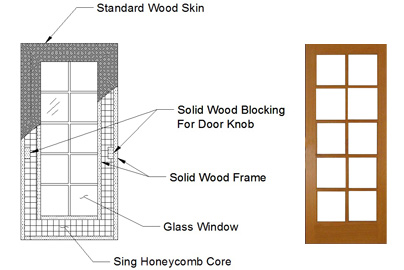

Basic Sing Door Spec Drawings: Click here

Door Specifications

Door Size
Actual Unit Size
Rough Opening Size
32″ x 80″ 33-3/4″ x 81-1/2″ 34-1/4″ x 82″
34″ x 80″ 35-3/4″ x 81-1/2″ 36-1/4″ x 82″
36″ x 80″ 37-3/4″ x 81-1/2″ 38-1/4″ x 82″



See also: Door Technical Information

Appearing regularly in Contemporary Architecture Design



* Note: STC rating varies according to size, thickness, skin, and other factors. Sing Core does not rate doors, although we are fortunate enough to have one of the best sound testing labs in the world, here in the Pacific Northwest. If you require a specific STC rating, Sing Core can build a door to your architectural specifications and have the resulting door tested at our rating facility for an official rating.



singcoreadmin No Comments

Contents of Sing Door

Applications -> Building Components -> Doors -> Contents

Door Products

Sing Door Core

Sing Door Sandwich

Sing Door Panel

Door Applications

Interior Doors

Exterior Doors

Single Leaf Door

Flush Door

Moulded Door

Composite Door

French Door

Panel Door

Stile and Rail

Plank and Batten Door

Ledged and Braced Door

Frame and Filled Door

Wicket Door

Sliding Door

Glass Sliding Door

Bypass Door

Pocket Doors

Barn Door

Interior Barn Door

Ledge and Brace Door



Door Alternatives

Fiberglass Doors

Aluminum Doors

Steel Doors





Rotating Door

Pivot Door

Revolving Door



High Speed Door

Clean Room Door

Refrigeration / Cold Room Door



Blind Door

Gibb (Jib) Door

False Door

Invisible Door



Half Door

Dutch Door

Stable Door



Double Leaf Door

French Door

Garden Door

Rebated Door

Australian Door (double plywood swing doors)

Barn Door



Saloon Doors

Café Doors

Batwing Door



Bi-fold Doors



Garage Doors

Carriage Doors

Overhead Door

Sectional Overhead Door

Roller (Tambour) Door

Roller Shutter



Specialized Doors

Sound Proof Door

Fire Door

Impact Resistant Door

Extreme Weather Door

Weather-proof Watertight Wood Doors

Bulletproof Door

Blast Door

Trap Door

Pet Door



Architectural Doors



Sing Door Data

Types of Wood Doors

Door Blanks

Skin Options

Technical Information

Clients List

Industrial Links

Assembly & Connection

Door Frequently Asked Questions

Door Specifications



Photo Galleries

Carriage Doors Gallery

Sliding/Pocket Doors Gallery

Interior Doors Gallery

Exterior Doors Gallery

Overhead Doors Gallery



How to Build

How to build a true flat door

How We Build Our Doors (The Best Method)

How We Build Our Doors (The Second Best Method)

How to make a Sing Door with glass

Carriage Doors

Sliding/Pocket Doors

Sliding Glass Doors & French Doors

Stile and Rail Doors

Interior Doors

Exterior Doors

Overhead Garage Doors



Sing Door News

New Door Tech vs. Old Door Tech

True Raised Panel Door

True Flat Sliding Doors

Sing Modern Sliding Barn Door

More People Switching from Overhead Garage Doors to Carriage Doors

$58 Door vs $580 Door Comparison

3 Types of Large Wood Grain Doors

New Doormaking Technology

Best Door in Manhattan

Architectural Specification Substitutes

Free Custom Window Glass Openings



Door Cores

Hollow Core

Lattice Core

Honeycomb Core

Corrugated Cardboard Core



Sing Core

Stave Core

Solid Core

Particle Board

Foam

Door Skins

Wood

Veneer

Plywood

HDF

MDF

Metal

Fiberglass

Vinyl



Door Sizes

Standard: 36” x 80”

Exterior and Passage: 2’ 6” to 3’ wide x 6’ 8” height

Closets: (vary)

Oversize / Large Door: 8′ + tall and/or 4′ + wide

Garage: 7’ to 8’ wide

Double-car: 16’ wide



Door Hardware

Hinges

Standard

Bi-fold

Multi-fold

Door Handles

Doorknobs

Crash / Panic Bars

Pull Handle

Door Fasteners

Door Locks

Keyed

Bolt

Latchbolt

Deadbolt

Strike plate

Sliding Hardware

Sliding Door

Sliding Barn Door

Pocket Door

Wall Mount

Bypass

Multi-pass

Accessories

Door Closer

Door Opener

Door Damper

Door Knockers

Finger Plate

Letter Box / Mail Slot

Peephole

Door Safety

Door Stops

Door Guards



singcoreadmin No Comments

Custom Door Window Glass Openings

Applications -> Building Components -> Doors -> Custom Door Lites

CUSTOM WINDOW CUT-OUTS – ANY SIZE – ANY SHAPE

for door professionals  and  manufacturers

Introducing the new, “American,” French door.

Say, “Au revoir,” to the traditional French door that limits your design options, and say, “Hello,” to the new Americanized Sing door that is nearly limitless in your creative design possibilities.

The Sing American door is basically a Sing Panel (that can be any size) custom cut for your window lights (without compromising the strength) to achieve your desired results, and can even be used to duplicate the exact appearance of any other door (and have been used in antique restorations).

The beauty of the traditional French door feature is in the greater light presence due to greater glass insertion and represents the status of traditional values. But, as you know, if you have shopped for French doors, you are limited to few options as to the placement and size of your light openings for glass.

1-piece-true-flat-10-light-door-vs-13-piece-stile-and-rail-french-door-sing-american

Compare Sing American Door solid one-piece design (left) to traditional 13-piece frame (right).

Up ‘til now, the only option for you, if you wanted an extraordinary French door, was to hire a high-end custom door craftsman or millwork to make your custom door to your specifications, even extremely big doors.

1 STRENGTH

Each Sing American Door features a one-piece Sing Panel construction with window light openings cut to your specifications, then install the glass. Traditional French doors are based on stile and rail design, which makes the door weak at the four connection points and all the joints in between the glass are the weakest points of your door.

2 SIMPLIFIED DOOR MANUFACTURE

The unique one-piece Sing American Door uses patented Sing Core as the foundation of the process in contrast to conventional French glass door construction which is solid wood, stile and rail or features a sandwich panel design with foam, wood based, paper or hollow core which does not have the strength of Sing Core (one kick will delaminate other cores and they will warp, while kicking a Sing door will break your leg and can be warp-free). See core comparison used in door and many other industries.

3 COST EFFECTIVE

Custom high end doors or even regular import panel doors and French doors are created laboriously via craftsman-like intense processes. Alternatively Sing American Door require a fraction of the labor cost. You could pass these savings on to your customer or have a better profit margin by promoting high quality, long lasting true flat doors made in the USA.

4 SAFETY

Sing American Doors are lightweight. It is safer for families that have children (with precious fingers and toes). Another safety concern is due to the possible risk of injury or breakage due to kicking glass at the bottom of the door. Many designers are looking for options of reducing the glass exposure at the bottom of the door without compromising the overall appearance.

5 BE CREATIVE

Enter the Sing American Door, the door inspired by the traditional French door but allows you to have complete control of the design process. The Sing American Door is our most popular of all the Sing Doors that we manufacture.

There are many other reasons (below) that explain the advantages of Sing American Doors vs. other conventionally manufactured doors.



Sing American Door French Door
New Technology x
True Flat x
Lightweight x
High Strength x
Insulated x
Sound Deadening x
Any Size x
1-piece Construction x
Custom Glass Light x
Any Shape x
Any Thickness x
Any Surface Material x
Easy Glass Install x
Fast Turnaround x
Eco-friendly x

A new technology for manufacturing doors – especially doors with glass – is used by all major high end millwork professionals and some leading edge door manufacturers. It starts with a patented Sing Core flush door, then cut window openings in any shape or size without compromising the strength of the door.

french-door-americanized-custom-design-glass-anywhere-7-inchesSing Outside the Box

Embrace your creativity and let your imagination run wild!

Now you can sing with us and have your own Sing American Door customized to have glass openings custom cut to your specifications.

We see so many different and unique custom requests and styles that are unrestricted. We love enabling our clients to make their custom door dreams come true and so enjoy this creative process.

Plus, Sing American Doors have the super-strong benefits of being a solid structure without any weak connecting points to compromise your door and are resistant to warp, twist and rot over time, designed and constructed for lifetimes of maintenance-free enjoyment.

Eco-friendly Sing Doors are manufactured with our true green patented process using 92% less precious raw materials, with much less labor, energy expended and waste than any other door.

Sing American Doors come to you ready to install the glass and finishing by your door installer, or we can have the door finished for you.

For optimal strength and resilience we suggest that you keep your window light opening locations within a 7 inch door perimeter, and you enjoy extra safety and security due to having an elegant solid door without weak spots that is fully customized by you.

The Sing American Door Secret

The secret is in the strength of patented Sing Core (click here to see Sing Core vs. other cores) that is 4-to-5 times the strength of aluminum honeycomb core used in the aviation industry. The superior compression strength (can be 700 PSI or more) and built-in insulation makes the Sing Panel the most high-performance door. Sing Core is 20-to-60 times stronger than the foam core found inside foam-core doors. A regular foam-core door is not strong enough to cut and support glass installation without reinforcement.

Doors made of Sing Core provide the possibilities of adding more trim and molding or the highest rating(s) for fire proof, bullet proof or sound deadening to build specialty doors with a designer look.

handcrafted-true-flat-high-end-eco-friendly-french-door-lightweight-high-strength-singHigh-end Sing Doors

We make the most exclusive, precision high-performance door for our most exclusive clients. To achieve these spectacular results each door is custom crafted by hand. The Sing American Door is the economical alternative allowing you to duplicate the results of the custom handcrafted Sing door, saving you $1,000 or more on each door.

Sing American Doors are proudly made in the USA for you.

Any Surface Material

While French doors or doors with windows are normally considered to be wood or wood grain finished, with your Sing American Door, you can specify what material your door is made of, like aluminum, ceramic, concrete, glass, fiberglass, metals, plastics, steel, even fire-resistant mag-board and bulletproof Kevlar. So whether you are looking for an interior door with glass or an exterior door with glass, even a steel entry door with glass or any other type 1 metal door with glass, you can be certain that your door with glass insert will outperform any other door with glass insert and method. When you care to have the best interior door with glass insert, your Sing American Door with glass panels is guaranteed to be the best affordable solution.

What is a French Door?

A French door is a door style consisting of a frame around one or more transparent and/or translucent panels (called lights or lites) that may be installed singly, in matching pairs, or even as series. A matching pair of these doors is called a French window as it resembles a door-height casement window. When a pair of French doors is used as a French window, the application does not generally include a central mullion (as do some casement window pairs), thus allowing a wider unobstructed opening. The slender window joinery maximizes light into the room and minimizes the visual impact of the doorway joinery when considered externally. Often, the doors of a French window open outward onto a balcony, porch, or terrace and they may provide an entrance to a garden. (Wikipedia.)

You, our client, your dreams and desires are our priority. Let us help you achieve your American dream with your Sing American Door.

General Specifications

architectural-door-specs-illustration-torsion-box-coreStandard Sing Core doors are manufactured with patented Sing Core material as the base interior substrate of the door. The Sing Core substrate material is created using a vertical grain natural wood torsion box design while the traditionally empty voids are filled wall to wall with recycled foam. The foam material is available in various forms depending on your specification. The default is EPS foam. Natural wood lock blocks are positioned at locations as necessary for locking mechanism placement or as anchor points. The core material is wood framed by 1 ¾ “ natural wood for finishing strength and attaching hardware. The torsion box is completed by adhering an exterior material (skin) according to your specifications. The default is a wood-grain (Luan) material. Bonding agent used in adhesion of the entire composite material is formaldehyde-free.

Click here for tips on How to Create the Right Sing Panel for your specific project.

Every Sing Core manufactured door is unfinished (unless specified otherwise) and is guaranteed for 10 years for structural integrity.

Detailed Specifications:

Scope: Subject to local building codes, the standard Sing Core door is intended for use in:

  • Single family dwelling interior applications
  • Multifamily dwelling, low-rise professional office, library and low-rise motel interior applications
  • Lighter use industrial building and factory, hotel and retail sales building interior applications

Product Description: 1 ¾” side-hinged door panel manufactured by Sing Core

  • Door component includes paint-grade door panel only

Door Panel Materials: Sing Core doors are manufactured using Eco-friendly cold-press process. Composite materials include:

  • 5x10-lockblock-2-sideSing Core vertical wood-grain torsion substrate filled with recycled EPS foam
  • Core material is framed with wood stiles and rails
  • Facings are wood veneer (Luan)
  • Formaldehyde-free bonding agent is used for adhesion of all components

Interior Blocking: Solid wood implants are inserted as lock blocks or anchor points.

Delivery: Reasonable care is taken to ensure safe transportation of your Sing Core door from factory to your location including proper crating to protect the natural beauty of your door during transport.

Storage and Protection: Store your Sing Core door in an upright position and allow to acclimate to room temperature following shipment receipt or prior to finishing or installation.

Preparation: Per manufacturer’s specifications, ensure that door frame openings are constructed plumb, true and level prior to installation. Select fasteners of adequate type, number and quality to assure proper function.

Installation: Installer shall be specialized in the installation of the type of work that is associated with the project and will comply with manufacturer’s installation policies and procedures to ensure proper end use.

  • Verify that hinging and latching assemblies operate freely and correctly

Finishing: The finishing of the Sing Core standard door is the responsibility of the client due to the product being delivered in paint-grade quality unless specified otherwise in writing. Any sealing must be in accordance with manufacturer’s specifications to protect against a variety of environmental conditions as necessary.

  • Seal all 6 surfaces with two coat minimum on operable panel(s)
  • Finishing or re-finishing must be completed following acclimatization and installed within 7 days
  • Avoid finishing after rain (or damp) or during periods of higher than average humidity
  • At least once a year, conduct periodic inspections of coating to ensure no door components are exposed
  • Reseal the surface as necessary

Machining: Sing Core doors are easy to work with in the millwork shop for CNC machining or on-site for finishing, sawing, sanding, cutting and fastening. No specialized skills or equipment is necessary, other than standard woodworking tools. Treat Sing Core doors just like you would any other standard door blank.

Strength Performance: Patented Sing Core has an unsurpassed strength as compared to other lightweight substrate materials tested at 660 PSI (based on 2″ x 2″ grids and 3/4″ thick) for superior structural integrity and is resistant to warp, twist and crack when compared to other materials.

Light Weight Performance: Sing Core weighs much less than other traditional building materials, as much as 50% less; or more, as little as 4 lbs. per sq. ft. yet sustainable and true green technology.

Insulation Performance: Standard Sing Core doors feature built-in insulation value with an R3 (can be upgraded to to R6.5 or more) rating per inch, depending on architect’s specifications.

Acoustical Performance: Sing Core standard doors have a natural sound-deadening quality for noise control. Standard sound transmission class (STC) is 30*. Additional noise control specifications can be met at the behest of the customer or designer and must be noted in advance.

Eco-friendly: Sing Core is manufactured using natural wood fibers, no formaldehyde, or toxic chemicals, is created using less energy than any other core material with little or no waste. The structure of Sing Core is 100% renewable (nature-grown) clean fiber and/or recycled material.

Warranty: Sing Core manufactured doors are structurally guaranteed for 10 years under normal conditions.

variety-of-design-options-for-architectural-doors-illistration-sing-core

Door Specifications

Door Width
Rough Opening Width
Rough Opening Height 6/8
2/0 (Single) 26″ 82-1/2″
2/4 (Single) 30″ 82-1/2″
2/6 (Single) 32″ 82-1/2″
2/8 (Single) 34″ 82-1/2″
3/0 (Single) 38″ 82-1/2″
4/0 (Double) *50″ 82-1/2″
4/8 (Double) *58″ 82-1/2″
5/0 (Double) *62″ 82-1/2″
5/4 (Double) *66″ 82-1/2″
6/0 (Doulble) *74″ 82-1/2″

See also: Door Technical Information

How to Order

Simply determine the dimensions of the door you have in mind, the height, the width and the thickness. Then determine

  • The external skin material
  • Any internal implants required and their locations
  • Any performance specifications desired

Now, you’re ready for our easy ordering process, using our online price quote.

How to BuyMetal Composite Sing Core panels are true straight, light and strong.

To order Sing Doors w/glass openings submit an order form either by email, info@singhome.com, or print and fax it to: 360.495.4585. We’ll provide a quote within one business day. If you have questions, please contact us.

Easy Ordering

All we need to know is the length, width, thickness and what you desire on the exterior, and your custom specialty panels are made to order. Getting a quote for your specialty product, is easy, thanks to our simple online order system.

Bulk Discounts

If you’re looking for a bargain price, remember, the more you order, the less expensive your total order will be per piece. Quantity and wholesale inquiries are encouraged. Feel free to contact us for more information. Click here for Closeout specials.

Fast turnaround: In you’re in a rush, only Sing Core can be custom made within 24 hours and is proudly manufactured for you in the USA.

Fast delivery: Any thickness and almost any length, less than 5 ft wide, can be made with in 48 hours if it is rush order.

SINGCORE Door with wndow light openings are easy to order. You may choose from our stock panels or order custom sized panels. Our price is based on the length, width, thickness, and quantity. Submit a Work Order by fax or email, and we will give you a quote within one business day. If you have a tight budget, give us a call, we might have an alternative solution tailored to your needs.



* Note: STC rating varies according to size, thickness, skin, and other factors. Sing Core does not rate doors, although we are fortunate enough to have one of the best sound testing labs in the world, here in the Pacific Northwest. If you require a specific STC rating, Sing Core can build a door to your architectural specifications and have the resulting door tested at our rating facility for an official rating.

singcoreadmin No Comments

French Doors

Applications -> Building Components -> Doors -> French Doors

sing-core-french-door-10-light

See: New American French Door

Sing Core French Doors are exquisite elegance with high function and performance in the most elite applications in homes and patios. When transitioning from one environment to another Sing Core French Doors offer a spectacular gateway, or offer protection from the elements when used as a barrier or access portal between interior and exterior conditions, while providing a beautiful panoramic view of the landscape.

Sing Core French Doors come complete with complimentary lite opening cutouts allowing the beauty and luminance of the outdoors to visit the interior of your home when installed either in single or multiples to provide an impressive focal point to your classic home, office, restaurant or other commercial application.

Sing Core French Doors are available in any size (up to 50 feet) or shape per your specification and can be used in sliding door configurations. Sing Core specializes in large oversize doors.

The Sing Core Difference

Due to the unique advantages of the Sing Core heart of Sing Core French Doors, they are imbued with qualities that are far superior when compared to other traditional or commercially available French Doors. Our patented new door technology incorporates the space-age core that is extremely lightweight, yet stronger than any other material used in the aerospace industry at a fraction of the cost.

Lightweight

Sing Core French Doors are much more lightweight than French Doors manufactured by other door companies due to the unique properties of the patented Sing Core used in the design of these doors.

Strength

sing-core-french-door-architectual-drawingIn terms of strength, Sing Core is stronger than steel pound-for-pound and compression strength is rated at 660 PSI. Our solid Sing Core Door design is warp, twist and rot resistant, can be extreme weather proof, and is much stronger than traditional stile and rail configurations that breakdown and weaken overtime, or fail at the joints under extreme conditions.

Insulated

Sing Core French Doors are pre-insulated; allow sunlight in for natural solar advantages and energy efficiency. Enjoy enhanced peace and quiet between varying environments due to the superior sound-deadening qualities of Sing Core French Doors.

Eco-Friendly

Sing Core French Doors are manufactured of natural wood and recycled foam components and bonding materials (adhesives) are formaldehyde-free. The construction process uses less energy, manpower and produces little or no waste. Due to Sing Core French door lightweight properties shipping, transportation and installation costs are reduced.

Economical

Though used in high-end designs, Sing Core French Doors are competitively priced, and even though they are handcrafted in the USA, can still compete with inexpensive imports.

Click here for more information on Sing Core Doors

How to BuyMetal Composite Sing Core panels are true straight, light and strong.

To order Sing French Doors submit an order form either by email, info@singhome.com, or print and fax it to: 360.495.4585. We’ll provide a quote within one business day. If you have questions, please contact us.

Easy Ordering

All we need to know is the length, width, thickness and what you desire on the exterior, and your custom specialty panels are made to order. Getting a quote for your specialty product, is easy, thanks to our simple online order system.

Bulk Discounts

If you’re looking for a bargain price, remember, the more you order, the less expensive your total order will be per piece. Quantity and wholesale inquiries are encouraged. Feel free to contact us for more information. Click here for Closeout specials.

Fast turnaround: In you’re in a rush, only Sing Core can be custom made within 24 hours and is proudly manufactured for you in the USA.

Fast delivery: Any thickness and almost any length, less than 5 ft wide, can be made with in 48 hours if it is rush order.

SINGCORE French Doors are easy to order. You may choose from our stock panels or order custom sized panels. Our price is based on the length, width, thickness, and quantity. Submit a Work Order by fax or email, and we will give you a quote within one business day. If you have a tight budget, give us a call, we might have an alternative solution tailored to your needs.

singcoreadmin No Comments

How to Make a Sing Door with Glass

Applications -> Building Components -> Doors -> Sing Glass Inserts

Patented Sing Door Methods

Sing American Doors are versatile and customizable. Every order is custom designed with the client’s project in mind. Each door is constructed using methods that specifically cater to our customers’ individual needs. We construct our doors using the following methods: pole barn grade, paint grade, wood grain grade, and plank grade.

How We Build Our Doors (The Best Method – Sing Torsion Box Panel Method)

This is how to build a 12 foot tall Sing American Door by using sing panels and cutting the light open and installing glass… ‏

Step 1 – Apply Glue to the Skin

Step 2 – Build Solid Wood Frame

Step 3 – Install the patented Sing honeycomb torsion box core & press on the skins.

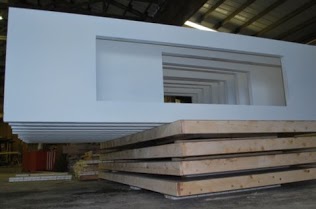

Step 4 (optional) – Cut hole for window and prepare window trim.

Step 5 (optional) – Install glass and finish the door to desired look and function.

Step 6 – Install the door onto jam.

Whether you are looking for an interior door with glass or an exterior door with glass, even a steel entry door with glass or any other type 1 metal door with glass, you can be certain that your door with glass insert will outperform any other door with glass insert and method. When you care to have the best interior door with glass insert, your Sing American Door with glass panels is guaranteed to be the best affordable French door solution.

Method 2 – How We Build Our Doors (The Second Best Method – Stile Rail)



On the left are patented Sing honeycomb stile and rail. On the right is veneer (walnut) ready for gluing onto the patented Sing honeycomb stile and rail.



Apply glue to our patented Sing honeycomb stile and rail.



Press veneer to patented Sing honeycomb stile and rail. Most honeycomb panels cannot handle the high pressure and temperatures of the hot press, Sing honeycomb can.



Stile and Rail after the veneer has been pressed on.



See how straight the patented Sing honeycomb stile and rail are, yet they are still incredibly strong and lightweight.



Drill holes to accept dowels.



Doweled and glued.



Router out the end if hardware is to be installed

Stained and ready for glass and installation.

Pictures courtesy of Robert Shaw – www.robertshawmfg.com
Doors 8′ – 7″ tall

How to Buy

Sing Door Panels are easy to order (link). You may select panels of standard dimensions from our inventory, or you may order custom sizes and shapes. Please submit a Work Order by fax or email, and we will get back to you with a free quote within one business day. You only need to submit the length, width, thickness and quantity. Even if you have an unorthodox idea or a tight budget, give us a call. Our representatives will help devise an alternative solution tailored to your needs.

Sing Core allows you to design your own doors. Just add trim, paint, and hardware*. Exceptional pricing is available to distributors, manufacturers, and retailers
. Doors Pamphlet For Distributors

Yellow Sing Honeycomb Carriage Door

Door Panel Pricing

Simple Price/Order Process

Simple Price/Order Process


Sing Door Assembly  Sing Door Strength Demo
