Large Cold Rolled Steel Pivot Door Specifications

General Specifications



Standard Sing Core Cold Rolled Steel Pivot Door Blanks are manufactured with patented Sing Core material as the base interior substrate of the door. The Sing Core substrate material is created using a vertical grain natural wood torsion box design while the traditionally empty voids are filled wall to wall with recycled foam. The foam material is available in various forms depending on your specification. The default is recycled EPS foam. Natural wood lock blocks can be positioned at locations as necessary for locking mechanism placement and/or as pivot hardware anchor points. The core material is framed by 1.25-inch wood stiles and rails for finishing strength and attaching hardware. The torsion box is completed by adhering 20 gauge cold rolled steel as exterior material (skin) according to your specifications.

Cold Rolled Steel Pivot Door Surface Material

The door blank surface material is made of 20 gauge cold rolled steel unless otherwise specified. Bonding agent used in adhesion of the entire composite material is formaldehyde-free.

Click here for tips on How to Create the Right Sing Panel for your specific project.

Every Sing Core manufactured door blank is unfinished (unless specified otherwise) and professional grade is guaranteed for 50 years for warp-free and structural integrity.

Detailed Specifications:

Scope: Subject to local building codes, the standard Sing Core pivot door blank is intended for use in:

  • Single family dwelling interior applications
  • Multifamily dwelling, low-rise professional office, library and low-rise motel interior applications
  • Lighter use industrial building and factory, hotel and retail sales building interior applications



Cold Rolled Steel Pivot Door Materials: Sing Core cold rolled steel door blanks are manufactured using Eco-friendly cold-press process. Composite materials include:

  • Sing Core vertical wood-grain torsion substrate filled with recycled EPS foam
  • Core material is framed with solid wood stiles and rails
  • Facings are 20 gauge cold rolled steel
  • Formaldehyde-free bonding agent is used for adhesion of all components

Architectural Specifications Substitutes

For information on some of our architectural substitutes click here.

Interior Blocking: Solid wood implants can be inserted as lock blocks or anchor points. Also additional stiles (vertical wood implants) or rails (horizontal wood implants) can be positioned at any desired location inside the cold rolled steel pivot door. (Note: Depending on your expectations, solid wood implants should be supported by at least 12 inches of Sing Core material to maintain true flatness.)

Delivery: Reasonable care is taken to ensure safe transportation of your Sing Core large cold rolled steel pivot door from factory to your location including proper crating to protect the natural beauty of your cold rolled steel doors during transport.

Storage and Protection: Store your Sing Core large cold rolled steel pivot doors in an upright position and allow to acclimate to room temperature following shipment receipt or prior to finishing or installation.

Preparation: Per manufacturer’s specifications, ensure that openings or attachment walls are constructed plumb, true and level prior to installation. Select fasteners of adequate type, number and quality to assure proper function.

Installation: Installer shall be specialized in the installation of the type of work that is associated with the project and will comply with manufacturer’s installation policies and procedures to ensure proper end use.

Verify that attachment, hinging and latching assemblies operate freely and correctly

Finishing: The finishing of the Sing Core large cold rolled steel pivot doors are the responsibility of the client due to the product being delivered in unfinished condition unless specified otherwise in writing for use in interior applications only. Any exterior use must be approved in advance to avoid warranty exception and sealing must be in accordance with manufacturer’s specifications to protect against a variety of environmental conditions as necessary. In reference to exterior applications:

  • Seal all 6 surfaces with two coat minimum on operable panel(s)
  • Finishing or re-finishing must be completed following acclimatization and installed within 7 days
  • Avoid finishing after rain (or damp) or during periods of higher than average humidity
  • At least once a year, conduct periodic inspections of coating to ensure no wall panel components are exposed
  • Reseal the surface as necessary

Machining: Sing Core large cold rolled steel pivot doors are easy to work with in the metal shop for machining or on-site for finishing, and fastening.

Strength Performance: Patented Sing Core has an unsurpassed strength as compared to other lightweight substrate materials tested at 660 PSI (based on 2″ x 2″ grids and 3/4″ thick) for superior structural integrity and is resistant to warp, twist and crack when compared to other materials.

Light Weight Performance: Sing Core weighs much less than other traditional building materials, as much as 50% less; or more, as little as 4 lbs. per sq. ft. yet sustainable and true green technology.

Insulation Performance: Standard Sing Core door pivot blanks feature built-in insulation value with an R3 (can be upgraded to to R6.5 or more) rating per inch, depending on architect’s specifications.

Acoustical Performance: Sing Core standard pivot door blanks have a natural sound-deadening quality for noise control. Standard sound transmission class (STC) is 30*. Additional noise control specifications can be met at the behest of the customer or designer and must be noted in advance.

Eco-friendly: Sing Core is manufactured using natural wood fibers, no formaldehyde, or toxic chemicals, is created using less energy than any other core material with little or no waste. The structure of Sing Core is 100% renewable (nature-grown) clean wood fiber and/or recycled material.

Warranty: Sing Core pivot door blanks come with a 10-year warranty, while professional manufactured pivot door blanks can be structurally guaranteed and warp-free for 50 years under normal conditions.

Basic Sing Door Spec Drawings: Click here

variety-of-design-options-for-architectural-doors-illistration-sing-core
Custom-cut Window/Lite Openings: Lite openings for glass inserts can be custom cut per your specifications (drawings above show examples of standard openings) for glass insertion.

Door Specifications

Door Width
Rough Opening Width
Rough Opening Height 6/8
2/0 (Single) 26″ 82-1/2″
2/4 (Single) 30″ 82-1/2″
2/6 (Single) 32″ 82-1/2″
2/8 (Single) 34″ 82-1/2″
3/0 (Single) 38″ 82-1/2″
4/0 (Double) *50″ 82-1/2″
4/8 (Double) *58″ 82-1/2″
5/0 (Double) *62″ 82-1/2″
5/4 (Double) *66″ 82-1/2″
6/0 (Doulble) *74″ 82-1/2″

See also: Door Technical Information

Appearing regularly in Contemporary Architecture Design

* Note: STC rating varies according to size, thickness, skin, and other factors. Sing Core does not rate doors, although we are fortunate enough to have one of the best sound testing labs in the world, here in the Pacific Northwest. If you require a specific STC rating, Sing Core can build a door to your architectural specifications and have the resulting door tested at our rating facility for an official rating.



No Comments

Insulated Wall Panels

When it comes to insulated wall panels, one company is head and shoulders above the rest. SingCore insulated wall panels are the only Eco-friendly lightweight high strength insulated wall panels imbued with climate control and sound deadening characteristics helping to create the best solutions for wall partitions.

insulated-wall-panels-museum-quality-insulated-wall-panel-systems

There’s never been an easier or more sustainable solution for semi permanent walls than SingCore’s insulated wall panels, which thanks to their high performance patented structure which is more high precision (+/- .006 in.) lightweight (a fraction the weight of other solid insulated wall panel core materials) and stronger than steel (660 PSI) pound for pound.

Insulated Wall Panel Insulation Materials

For discriminating architects, artisans, builders and contractors, Sing insulated wall panels can be customized to feature the rigid interior insulation material to maximize the R-value of your insulated wall panels for the use they were intended such as room partitions, temporary walls, walls, moveable walls, temporary walls, operable partitions, curtain wall room dividers, wooden room dividers, or room dividers, Eco friendly room divider.

All our insulated wall panels are manufactured by hand in our custom insulated wall panel manufacturing facility nestled into the pristine Pacific Northwest of Washington State.

Sing cam lock panels

Ease of Assembly

You get to select any of the many methods of assembling your insulated wall panels. We do not lock you in to any particular connection method as every situation and application for Sing insulated wall panels is completely unique as are the connection methods specified for any particular insulated wall panel application.

You can completely manage the connection method you desire, or we can custom manufacture your insulated wall panel system to be pre-configured with your connection method built in to each insulated wall panel.

Some of the more sought after insulated wall panel connection methods include using cam lock insulated panels which connect easily and completely. The only tool necessary for connecting two or more insulated wall panels is a simple Allen wrench. And because each Sing insulated wall panel is so lightweight, on person can easily assemble insulated panel walls.

Another high end connection method includes integrating Sing T-slot Panels.

Insulated Interior Wall Panels

For inside the home, restaurant, store, hotel, factory, yacht or government facility, the Sing insulated wall panel solution is the primary problem-solver when it comes to strength, reliability and ease of use. When not in use, these insulated interior wall panels pack flat for easy storage and can feature any flat building material on the exterior surfaces to match any interior design.

insulated-wall-panels-aluminum-t-slot-panels

Exterior Insulated Wall Panels

You never know where you’re going to find Sing insulated wall panels, as they could be beneath the sea (US Navy) or in outer space (NASA) and anywhere in between. Exterior insulated wall panels can be custom designed and built to architectural specifications to endure any climate (even Arctic expeditions) and are reusable and easy to assemble, disassemble, transport and store.

How Can I Get Your Insulated Wall Panels?

It’s easy, if you’re an architect, millwork or other commercial or industrial manufacturing facility you will likely qualify for a wholesale account and can click here for pricing. Otherwise, you can get your Sing insulated wall panels at any supplier or retailer where you find insulated panels for sale. All you have to do is to specify that you want, “SingCore inside,” and we will handle the rest. Homeowners, click here.

No Comments

Arched Doors

Sing Core helps door manufacturers and millworks build the best doors in any size, type or style including arched doors. The Sing arched doors aren’t like any other arched doors, because they can be any size – even large, oversized arch doors – that can be guaranteed not to warp, bend, twist or fail for 50 years no matter what the size.

patented sandwich door

The true flat professionals can assist in the creation of an arched front door that out performs all other wood round top doors made. You start with a high precision radius top door core, then make sure to include patented warp-free stiffeners to assure your arched doors remain warp-free.

Sing core arched doors are the only oversized wood arched doors that can be guaranteed not to warp over time. That’s why you see Sing Core elliptical doors in service as arched top storm doors in high end homes and as exterior arched wood doors. Because, who wants a warped round top entry door? (Nobody I know).

Large Arched Doors

Most people and arch top French door manufacturers know that if a door is over 7 ft tall, you’re going to have problems with the radius top door moving with environmental changes due to moisture and weather patterns. Unfortunately, this is the main problem with large arched top doors which compromises the radius top door’s seal and could cost in terms of extra expenditures due to energy loss.

Some large arch top aluminum door companies have countered this problem by adding weight and steel to the door to help keep it straight, but this puts added stress and strain to the door frame and structure, requiring heavy duty hardware and adding maintenance costs to the door and building over time.

Solving the Problems for Large Arched Doors

Finally, high-end arched front door manufacturers, millworks and custom arched door builders can supply warp-free round top doors to their clients that can even be guaranteed not to warp, bend, twist of otherwise fail (including full structure guarantee) for 50 years!

No other Eco-friendly arched front door can achieve such high precision or high performance.

Having Sing Core Inside imbues your large arched doors with impressive characteristics, such as:

Lightweight (a fraction of other solid core arched doors)
High-strength (stronger than steel pound for pound)
Insulated (for climate control and sound dampening)

Eco-friendly Arched Doors

Sing arched doors are made in the USA. A labor of love, manufactured with natural and recycled materials expending very little energy are bonded with waterproof formaldehyde-free adhesives with the intention of helping to make the world a better place for the Earth and all creatures.

This unique, patented torsion box composite core material is changing the way large arched doors are made, as well as many other products, making the world a better place.

50 Year Warp-Free Guarantee

Only elliptical top doors with premium warp-free Sing Core inside can be guaranteed not to warp for 50 years.

Don’t you want all your arched doors to have insulated, warp-free Sing Core inside?





No Comments

Save Energy in Taiwan and the World

house within a house

House within a house to save energy

It’s about time to take action and save drastic amounts of wasteful energy consumption in Taiwan. Inventor Peter Sing was born there, and desires to offer his energy saving knowledge and technology to help Taiwanese to consume less energy without having to restart the nuclear power plant.

How to Save Energy at Home and at the Office

Easy, simply use insulated interlocking patented Sing Panels to assemble a small insulated climate controlled space, like the house within a house (photo at right). No need to heat or cool such a large space when only a limited amount of space is actually occupied, saving 80% in energy consumption.

Savings vs. Penalty Incentive

To encourage participation in this energy saving program, new government incentives could be initiated. For instance, if you can save 50% of your previous energy consumption you would pay less per Kilowatt hour. If you can save 75% of your previous energy consumption you could pay less or even get your energy free of charge. If there is no change, or if you consume even more, you would pay an inflated amount per Kilowatt hour.

In this day and age, the energy consumption of available resources creates an ever increasing demand. To accommodate the requirements of individuals seeking to power basic creature comforts including heating when cold and cooling when hot presents two distinct problems.

Advantages of Sing Zoned Space
1 Lightweight. So lightweight, easy to move, assemble/disassemble for housewife or youth.
2 Easy to build. Simply use cam-lock-style modular panel connector.
3 Easy to pack and store. Entire house within a house easily dismounts and flat packs.
4 Affordable. Low initial cost, reusable and reconfigurable  structure build to last (government could reimburse some of the cost).
5 New Energy Saving Initiative incentivized by the government.

On one hand, the wealthy are not considerate of their energy consumption, so on hot days they can keep their entire large home maintained at 60 F degrees inside. This creates a drain on the energy supply, but the homeowner with a higher standard of living is not concerned with the cost of the average of 15 cents per kilowatt hour for electricity.

On the other hand, individuals with moderate or low income have other issues. Certainly everyone should be able to maintain a certain level of comfort when it is hot or cold outside, but the cost of electricity is a real concern for the less fortunate energy consumers; they may only be able to enjoy an inside temperature of 75 degrees when it is 90-100 degrees outside, and they may only be able to maintain cooling in one room or area within their home.

In fact, in the impoverished senior population, death from heat stroke – from not being able to afford adequate cooling for temperature control within their living environment – is a real concern in America. That is why it is important to have a variety of energy conservation techniques to fall back on in case of either an energy supply shortage, or in an effort to reduce energy consumption or deal with the rising cost of electricity.

How to Save Electricity

Take turns at attempting to create new alternatives for addressing the heating and cooling drain on our energy systems as well as alternative approaches and other ways to save energy as we move throughout the various seasons of the year.

One Energy conservation expert Pro. Charlie Brown had been pioneer of energy saving, He design his own home with Sing panel approach on how to save electricity in remodeling his own home that sets a good example for responsible heating and cooling control. Architect Professor G. Z. (Charlie) Brown has reconfigured his home to command complete control of the temperature maintenance of each individual zone within his home.

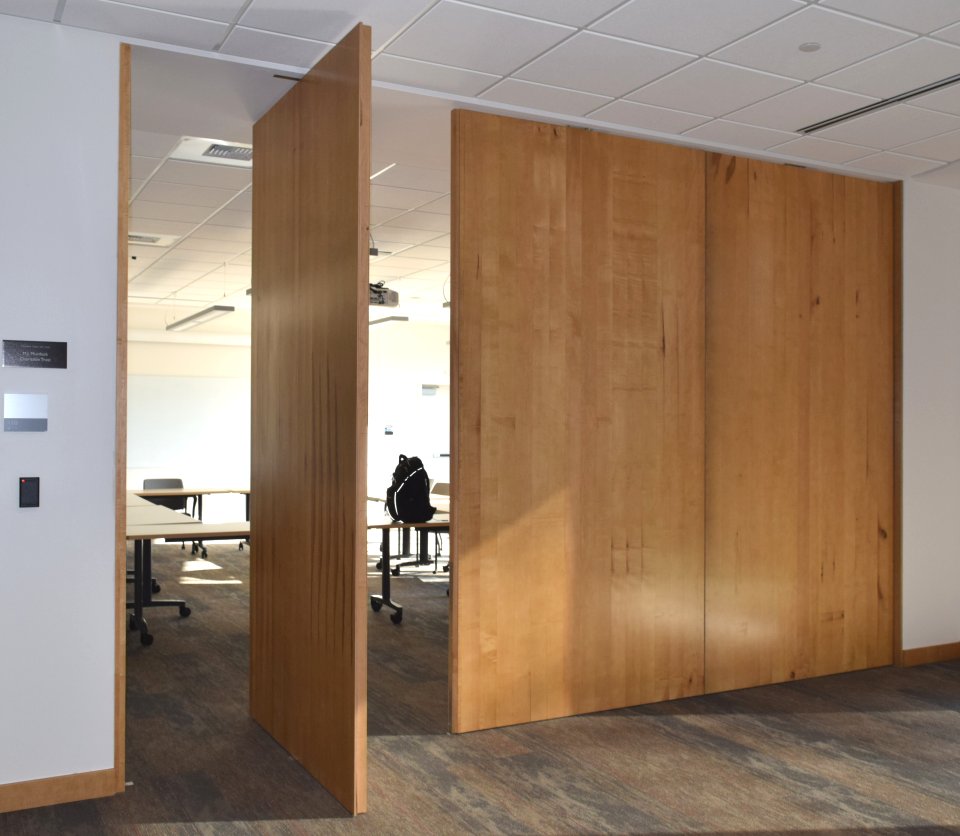

sliding panels room dividers insulated non warpingA home owner can divide his home into independent zones, each with its own independent heating and/or cooling apparatuses (standard portable heating and cooling devices (portable air conditioners) are readily available via big box and hardware stores) for greater temperature control with insulated temporary walls (with man doors for egress).

When Brown sought to cordon off specific portions of his home to maintain separate zones, he chose to seek out the Sing Sandwich panel to create a series of insulated sliding walls to maintain separation and climate control within his own home. Unique properties of the patented Sing Sandwich includes an ergonomic natural wood vertical grain torsion box matrix where the voids are filled wall to wall with rigid foam insulation creating an insulated substrate that is strong and lightweight.

How to save electricity insulated Sing Sandwich rigid foam insulation torsion box core wall panels

Sing Sandwich Insulated Walls

There is another approach – using the very same material that is readily available via your local Lowe’s Home Improvement Warehouse Pro Desk – that does not require a high level of architectural expertise and is a simple DIY approach for the average do-it-yourselfer.

Insulated Sing Sandwich temporary wall panels are available in 8 ft tall, 4 ft wide and inch-and-a-half thickness. By simply standing up these wall panels end to end, anyone could cordon off a separate living area within a larger vacant area for maintaining better climate control. The walls have an R value of R5.25 while being lightweight and stronger than steel (660 PSI) making the Sing Sandwich panel the perfect affordable solution for creating a manageable space separation.

For instance, one value and ecologically-minded individual with a master bedroom size of 26.6 x 17.6 in a home with central heating (controlled by a single thermostat) was able to reduce their winter heating costs by $220 per month by simply creating a separate insulated room within the larger master bedroom to manage the heating costs in the colder seasonal months.

The free-standing 9 x 10 room-within-a-room concept is empowering people to enjoy saving energy (and making their heating and cooling expenses more affordable).

House Within a House

In Brooklyn, New York a couple of artists have built a pair of tiny houses inside their open loft area. They rent them for $2310 per month each. They have the advantage of being in an excellent location within the heart of Brooklyn within walking distance of just about everything and a scenic view of the Manhattan skyline.

Brooklyn New York couple builds house within a house

Room dividers insulated lightweight modular portableIn fact, the New York area is the primary location of people seeking out ways to divide living spaces (this loft area is an excellent example) by using insulated Sing Sandwich panels to create separate rooms not just for energy savings but to make separate private living areas for roommates who share a common area.

Currently a trend throughout the greater New York area, it is expected that the Sing insulated, lightweight-high-strength room divider solution will continue to spread across the United States and into other countries, where space and energy are at a premium.

As energy gets more expensive and as income medians continue to plummet, insulated Sing Sandwich temporary wall panels used as room dividers continue to be one of the best ways to conserve energy and help mitigate the damages facing people trying to maintain a safe and secure quality of life on a budget.

Viva Zone Control!

For Government Consideration

It’s time for a change of lifestyle by public and school education

The U.S. Department of Energy should function as the leader in the world to change the culture-of-lifestyle approach toward energy consumption. Instead of recklessly chasing the American Dream – i.e., more highways, cars and trucks instead of more responsible railways and public transportation, and living in a 3000 sq. ft. average sized home – we all could do this together and it would be great if the DOE could help us all create and maintain a better world.

No Comments

How Can You Get Sing Core?

Sing Core is the manufacturer of patented Sing Core products, like Sing Core panels and Sing Core post and beam that could be used for nearly any application when you would like to take advantage of eco-friendly Sing Core’s insulated, lightweight, high-strength characteristics.

To Get Sing Core in Your Home

  1. Know what you want

    1. Have at least an idea or drawing of what you want
    2. Determine how many and what size of panels you will need for your project
    3. Know what exterior material you want on your panels
  2. Decide how you will manufacture your project

    1. Seek out a professional
      1. Architect, Designer, Design/Build, General Contractor, Mill Work, etc…
        1. Give them your drawing
        2. They will deal directly with us
  3. Congratulations!

    1. You are the proud owner of your new completed project that is
      1. Eco-friendly
      2. Lightweight
      3. High-strength
      4. Insulated
      5. High-performance (non-warping true flat doors, walls, furniture, etc…)
      6. Will last longer than anything made with any other material with these benefits

Regrettably, we are unable to provide patented Sing Core products for retail or directly to homeowners as we only support architects, millworks and door companies.  See full apology.

As the manufacturer we are unable to sell to the general public, only wholesale to businesses positioned, authorized and licensed to deal with consumers.

If you are an architect, millwork, manufacturer or distributor, you are probably qualified for a wholesale account to buy directly from Sing Core.

By specifying that you want “Sing Core inside” we will do everything we can to work hand-in-hand with your trade professional to get the results you want, including our 50 year warp-free and full structure guarantee. See a sample of our Clients List

Feel free to Ask Us and questions that you have, and we are sincerely grateful for your support in helping us spread the word for a better world.

The best way for homeowners to get Sing Core is to contact your local trade professional, like:

• Architect
  They can learn the best use of Sing Core product for your project. If you are working on a high end project then you need a designer or architect to fully develop the best results of your Sing Core products whether it is a door, prestigious furniture, or any building components.
• Millwork
  Millworks have the right equipment and experience to use Sing Core to build almost any product that you are looking for with the highest quality and result.
• Manufacturer
  Find the trade professional expert who specializes in the product that you are looking to achieve for the best quality.
 > Door & Window Manufacturer
 > Table Manufacturer
 > Garage Door Manufacturer
 > Furniture Manufacturer
• Homebuilder
• Contractor
  (make sure they have millwork support to finish your Sing product at a proficient standard, otherwise they may not be able to achieve the expected quality or performance.)

Find a trade professional in your area, simply Google millworks in (insert your geographical location). For instance, if you live in New York your search would look something like:

Google millworks in new york

Thank you,

Your friends at Sing Core

Fill out my online form.

Some of the industries we supply include:

SingCore serving AIA Turner Construction Reilly Windows and Doors I M Pei NASA

No Comments

Desk Gallery

No Comments

Collapsible Dresser

New, Revolutionary Furniture Built to Last Forever: Sing furniture is the new method to build high quality furniture that can be easily knocked-down and flat-packed for easy storage, transport and/or moving. The best apartments and condos provide modular Sing Furniture for pre-furnished units for rent and/or lease. While other flat-pack furniture is available it quickly deteriorates with use and needs to be replace, while Sing furniture is built to last forever, and easily broken down and flat packed for easy storage and/or transport in between uses.

With Sing Furniture, you can go from this





to this





in 5 minutes

We put Sing panels to the test of building furniture. We found this to be the easiest way to make a collapsible dresser drawer that can be assembled and reassembled in minutes and will last forever.

Things You’ll Need:

  • Sing honeycomb panels
  • Screws
  • hand drill

Assembling the dresser drawers is easy.

Lay panels for your collapsible drawers out flat so you have the right & left sides matching. Slide the front and back of the drawer into pre-cut slot. Add screw to each corner of drawer. No need to add glue. After sides are built screw on the bottom and your flat pack drawer is ready to be installed in dresser box.

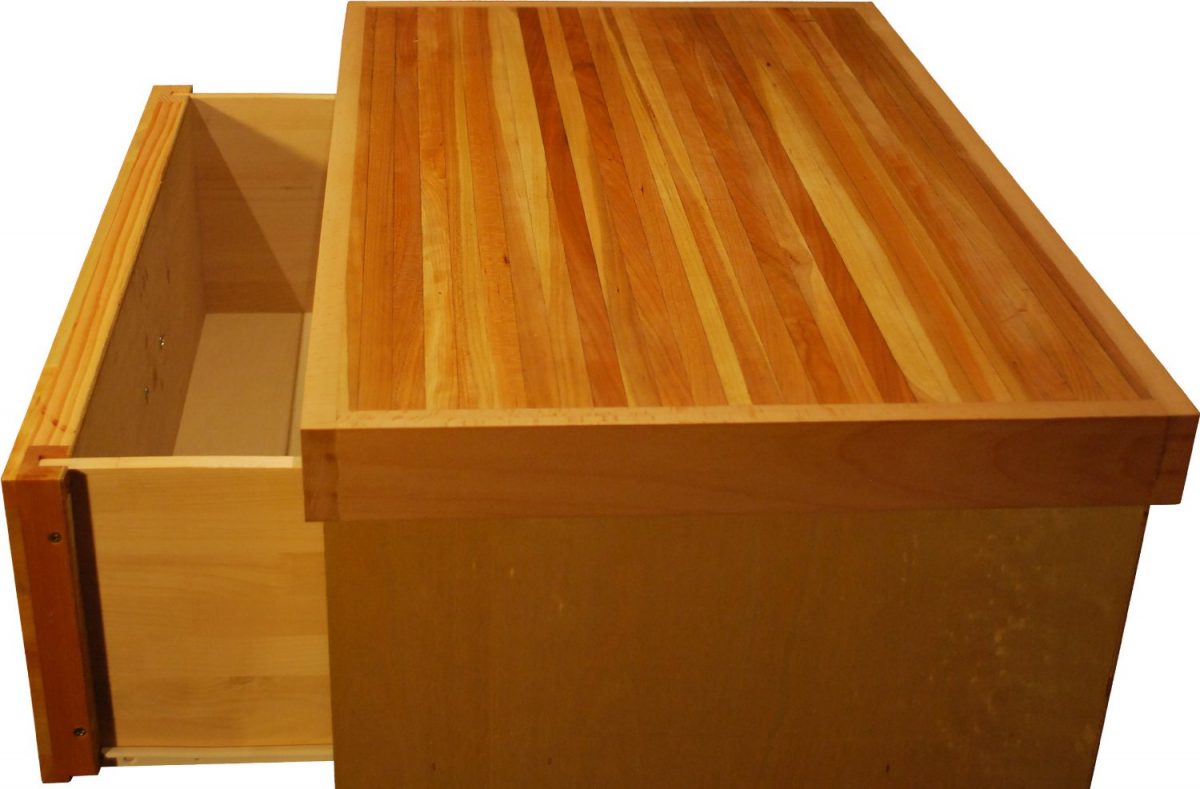

How to Build Your SH Dresser

Your cedar modular dressers are designer quality furniture pieces that are customizable to your needs. We ship you our patented furniture panels.  Choose how many drawers and the size you’d like.

Total size of finished flat pack dresser is 5’2″W x 23 1/2″ D x 34″ H

Drawers are 5 ft wide x 22” deep x 9 ½” tall.

Totally collapsible flat pack furniture for convenience of easy shipping. Each collapsible dresser can be packed in 10″h x 24″w x 60″ L box.

Things you’ll need

  • Sing honeycomb panels
  • Screws
  • A screwdriver or hand drill

Dresser

Slides are pre-installed at factory for drawer box.

Slides are pre-installed at factory for drawer box.

Drawers

Step 1:

Order your panels from Sing Honeycomb. You can order different sizes and they are cut to order. The slides are installed at our factory.

Step 2:

Lay panels for your collapsible drawers out flat so you have the right & left sides matching. Slide the front and back of the drawer into precut slot

Step 3:

Add screw to each corner of drawer. No need to add glue. After sides are built screw on the bottom and your flat pack drawer is ready to be installed in dresser box.

Step 4:

Insert drawer into dresser. You’re done. Sing collapsible drawers are constructed with 8 screws on the ends to hold on the sides, no need for glue this is so you can assemble and disassemble for moving or easy storage

All of our products start as our basic Honeycomb core panels from there they can become almost anything you can imagine:

3″ screws to fasten each corner of wide dresser, no glue used for easy dis-assembly

Slides are pre-installed at factory

Corners of drawer are screwed together for strength

Strongest Drawer box without any glue

Collapsible dresser drawer has strength to hold 160 lbs on 5 ft span

Patented Honeycomb material is lightweight yet high strength so this collapsible dresser even though lightweight will last a lifetime.

Flat pack furniture 10″h x 24″w x 60″ L box.



Ian Sage No Comments

Why and How to Use Sing Sandwich Core

Sing Sandwich Core (lightweight panel, sandwich panel, honeycomb panel)

1. What is Sing Sandwich Core?

The revolution or evolution of wood working, metal fabrication, plastic and cement meets the invention of patented Sing Sandwich Core (see the many uses of Sing Core). Sing Sandwich Panel provides the wood worker with pre-built torsion box at an affordable price.

Traditional-Torsion-Box-Diagram

Traditional torsion box (above) which could take all day to build

or insulated pre-built Sing Sandwich (reinforced torsion box see below)

torsion box plywood cutaway sing core lowes home improvement warehouse

2. Why Torsion Box?

Because other methods of building a table top are basically inefficient. For instance, a table top built of a solid material will shift and move over time compromising its degree of flatness. Also solid materials that are less likely to move are extremely expensive, heavy and would only be considered for a permanent fixture.

The torsion box table top design gives as flat a surface area as possible while reducing the weight of the table top due to the hollow areas in the center of the boxes. Using a torsion box design, a craftsman can build the most flat surface using 1/10th the solid material.

3. How does Sing Sandwich Core work?

aka: lightweight panel, sandwich panel, honeycomb panel

Examine the theory behind the torsion box/sandwich panel/lightweight panel/honeycomb panel

please click link below:

Sandwich Panel Core

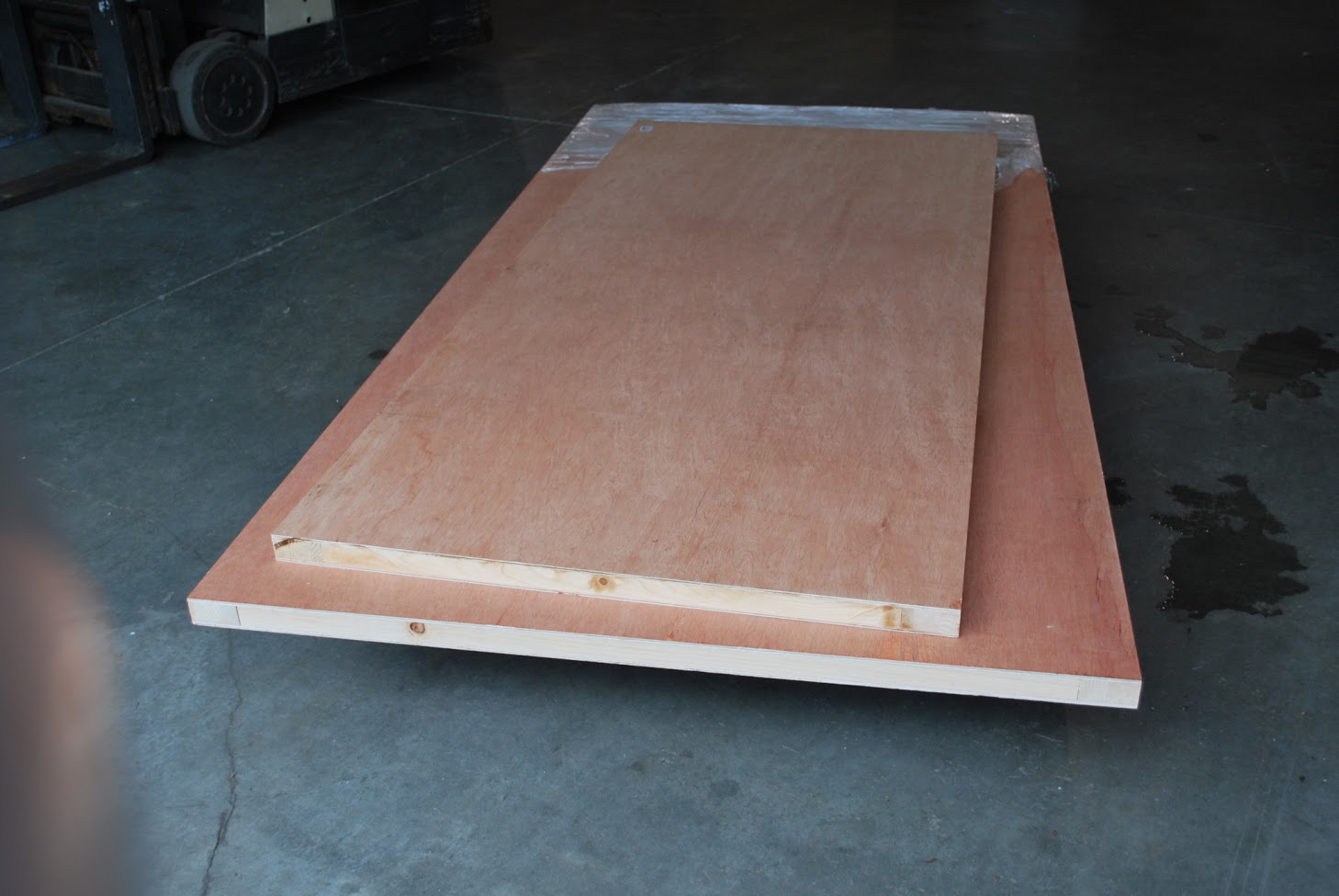

Use Sing Sandwich Core’s torsion box to replace conventional wood core, particle board core for the true flat, light weight and high strength characteristics.

There are several core materials also widely used to function as torsion box such as:

* Wood core
* Furniture wood core
* Table wood core
* Solid wood core
* Wood core table
* Wood core furniture
* Wood door core

Google Search: wood core

Why do craftsmen use wood core? Because it reduces the cost of exotic woods and by alternating grain orientation – like plywood – it can help to minimize warping; but even plywood warps and is very heavy. Using lightweight Sing Sandwich Core may eliminate warping altogether.

* Sing Sandwich Core is 10% of the weight of solid wood based core.
* Sing Sandwich Core is stronger than steel lbs for lbs.
* Sing Sandwich Core is safe to work with
fewer injuries if the object is a large door
table or large piece of furniture.

Get your torsion box pre-built for you in 2 ft. x 4 ft. Sing Sandwich Core sections.

Imagine being able to build a torsion box work table and hundreds of lightweight, high-strength true flat, non-warping panels – endless applications – without the time, energy and cost of building the torsion box yourself?

Sing core torsion box plywood lowes home improvement warehouse

lightweight panel honeycomb high strength guaranteed true flat table tops4. How to work with Sing Sandwich Core


Just use your normal wood working tools and treat it just like you would solid wood core, particle board core (substrate) or any other core materials (lightweight core, sandwich core, honeycomb core). The best core (click here to see charts to compare) material at an affordable price.

Patented Sing Core supplies the military, high-end millworks, general contractors and architects across the USA (see clients list) with massive torsion box structural panels that are lightweight, stronger than steel pound for pound and perfect true flat –> click here <– to see professional Sing Panel for large door applications guaranteed to be true flat and stay flat for 50 years.

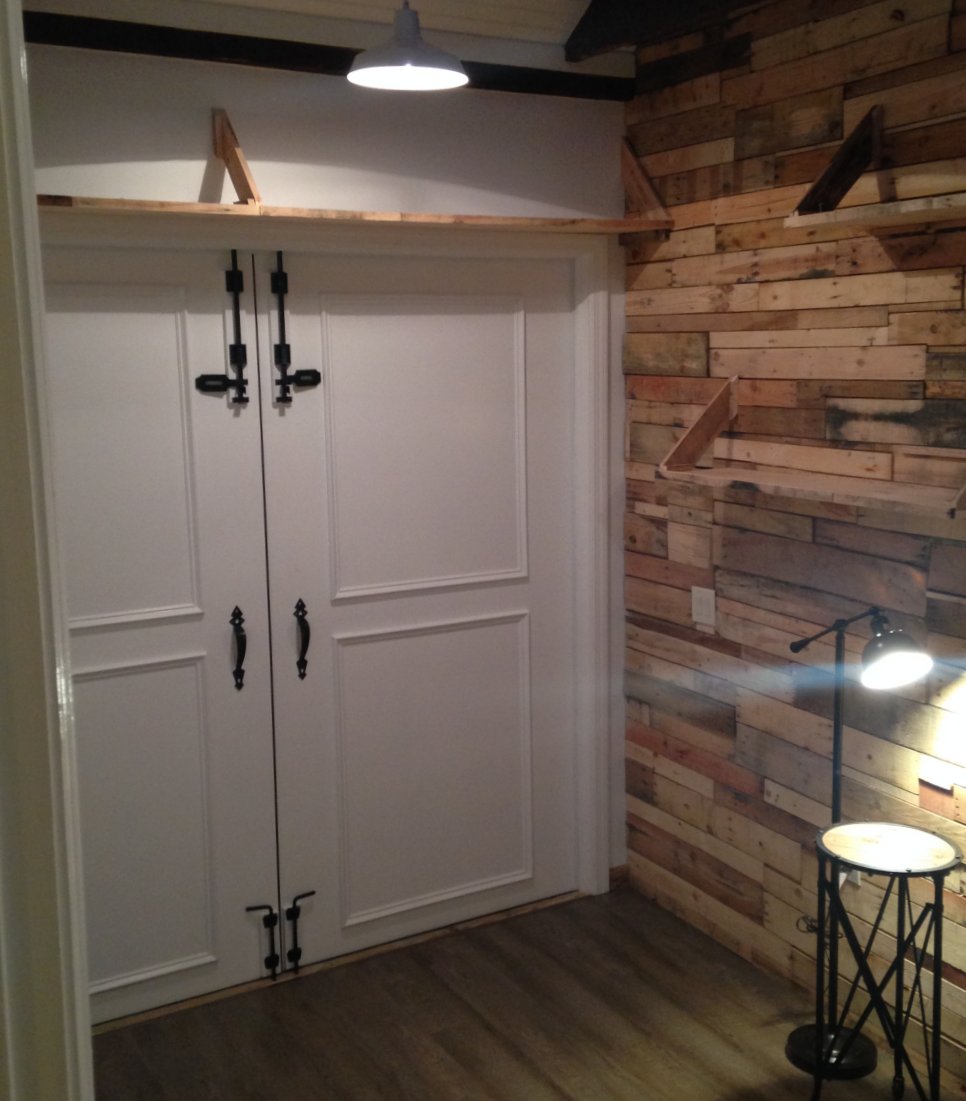

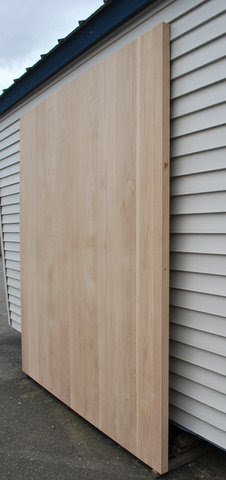

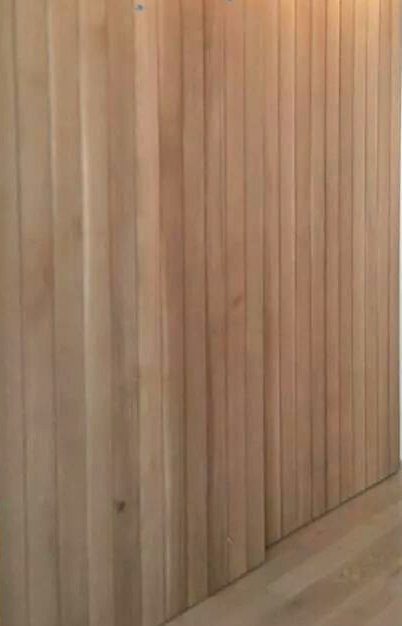

Solid wood and metal will move and adapt to temperature compromising the functionality and seal of the most elegant hand-crafted wood door. Diligent woodworkers have sought out Sing’s solution to the oversized wood door.

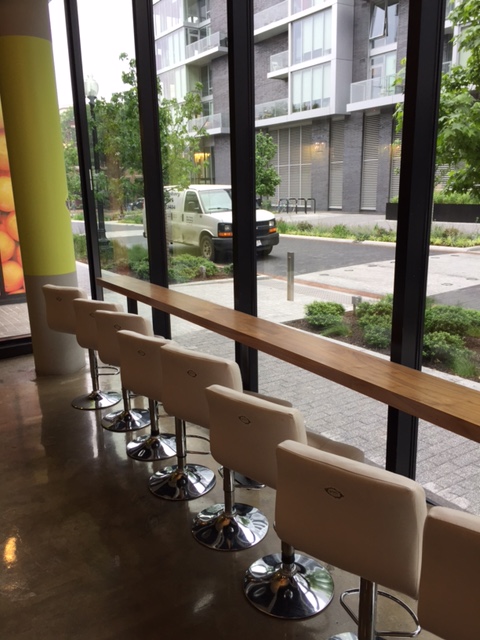

The same scientific solution of reinforced torsion box applies to tables and other structures that can be built without traditional wood framing for furniture or stick-built homes.

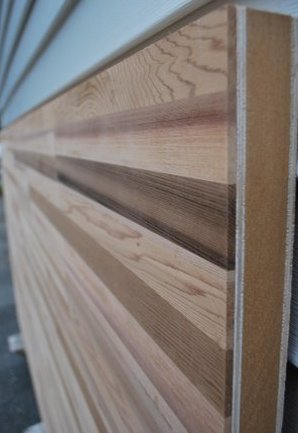

Close up side view of exposed torsion box honeycomb foam core sandwich panel

5. How to build with Sing Sandwich Core

Make-your-own-Sing-Panel-Cold-press-methodIt’s easy to build your own products on demand, as you need it in any size you want.

This is the most popular in-house Sing technology used by craftsmen and millworks.

You might have never known how easy it is to build using this cold-press drop-in method.

How Easy Is It?

This is how simple it is to for you to use our Sing Sandwich Core (pre-built insulated and reinforced torsion box).

1-Apply-regular-carpenter-glue-to-bottom-skin

All you have to do is to coat the underside of your bottom skin with regular carpenter glue…

2-Assemble-wood-edges-on-top-of-glued-skin

Place your wood edges atop the glued-side of the skin…

3-A-Insert-Sing-Sandwich-Substrate-material3-B-Insert-Sing-Sandwich-Substrate-material











Then fill the void with pre-built torsion box pieces until full.

4-Place-glued-top-skin-in-place

Place glued top skin onto your completed work…

Cold-press-until-dry

Finally cold-press until dry (those two pc of panels to hold the gluing object are made of Sing panels).

This simple cold press (above) is made of two pieces of Sing Panel (one on the top and one on the bottom) and clamped together with pipe clamps.

It’s that easy: Congratulations; you just made your own insulated reinforced torsion box panel!

6. $50 to Share Your Sing Project with Sing Core

Eco-friendly Sing Core for a better more sustainable worldSubmit a copy of your receipt along with drawings and photos of your project built with Sing Sandwich. You will receive a $50 cash reward for sharing your project and helping to make the world a better place. You will also receive a certificate recognizing and honoring your sustainable efforts.

Thanks for a Better World

It’s our way of saying thanks for helping us make a sustainable planet for all creatures using patented Sing Sandwich panels.

Details, photos and instructions compliments of Lightweight University.



No Comments

Truss Trade Show Booth Alternative

Use t slot embedded in t slot panels for trade show boothsOne of the most popular solutions for building a flexible trade show system has been the trade show truss displays. This has offered a degree or flexibility in altering the layout and design of a trade show booth that was unavailable in previous traditional trade show booth systems.

The popular conundrum in trade show design and management is that of lightweight and high strength. In most cases, the engineering and design staff will have to sacrifice either weight or strength having to choose one over the other depending on the expectations of the exhibitor.

This led to success of trade show truss systems that weigh less than a stick-based carpenter-built trade show display that would be disposed of following the trade show because it weighed less and could be knocked down and re-assembled for use in the next trade show event.

For many years the trade show truss system has set the standard for portable trade show displays; that is until Sing Core introduced the best trade show booths imbuing trade show engineers and designers with a whole new level of prolific design options without sacrificing due to the limitations of materials lacking in either lightweight or high strength.

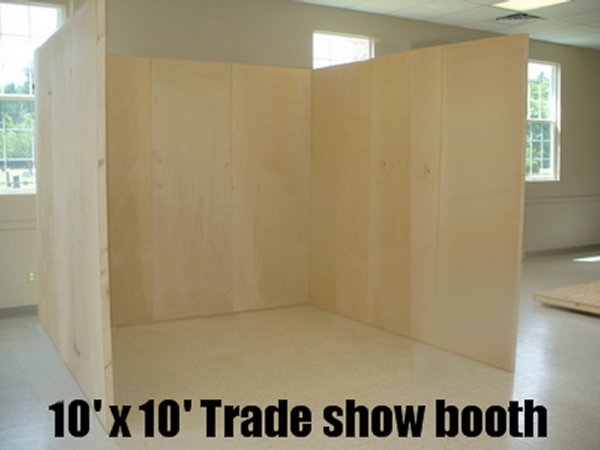

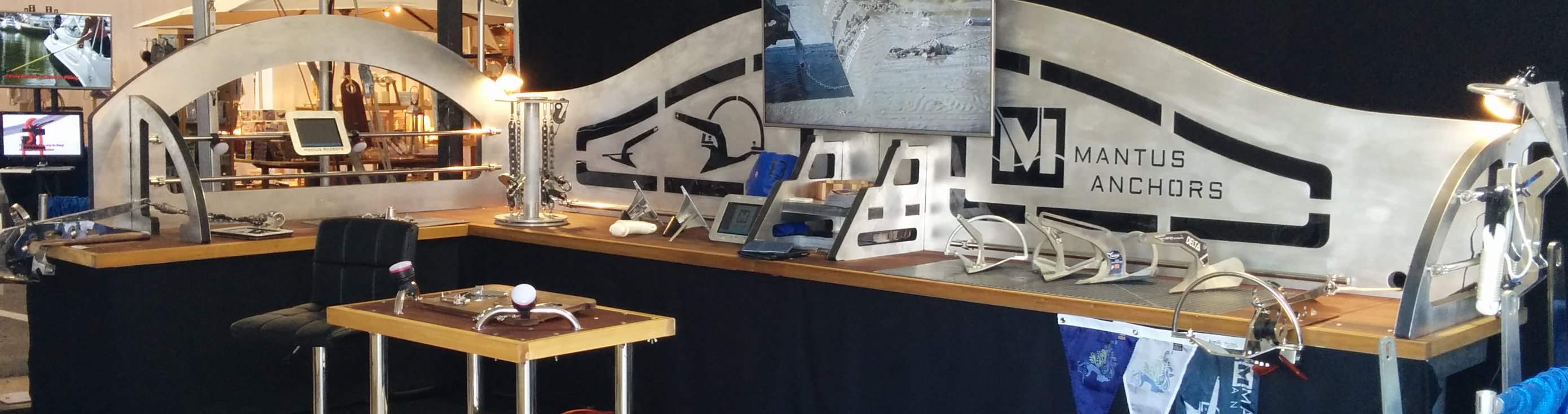

one man easily assembles 70 ft x 10 ft trade show display booth lightweight high strengthThe Best Trade Show Booths

This new generation of trade show displays has made a decisive impact on trade shows and the trade show designers who are always on the lookout for leading edge trade show booth ideas. Imagine a modular building material that is lightweight yet stronger than steel (660 PSI) pound for pound, taking trade show design to a whole new level.

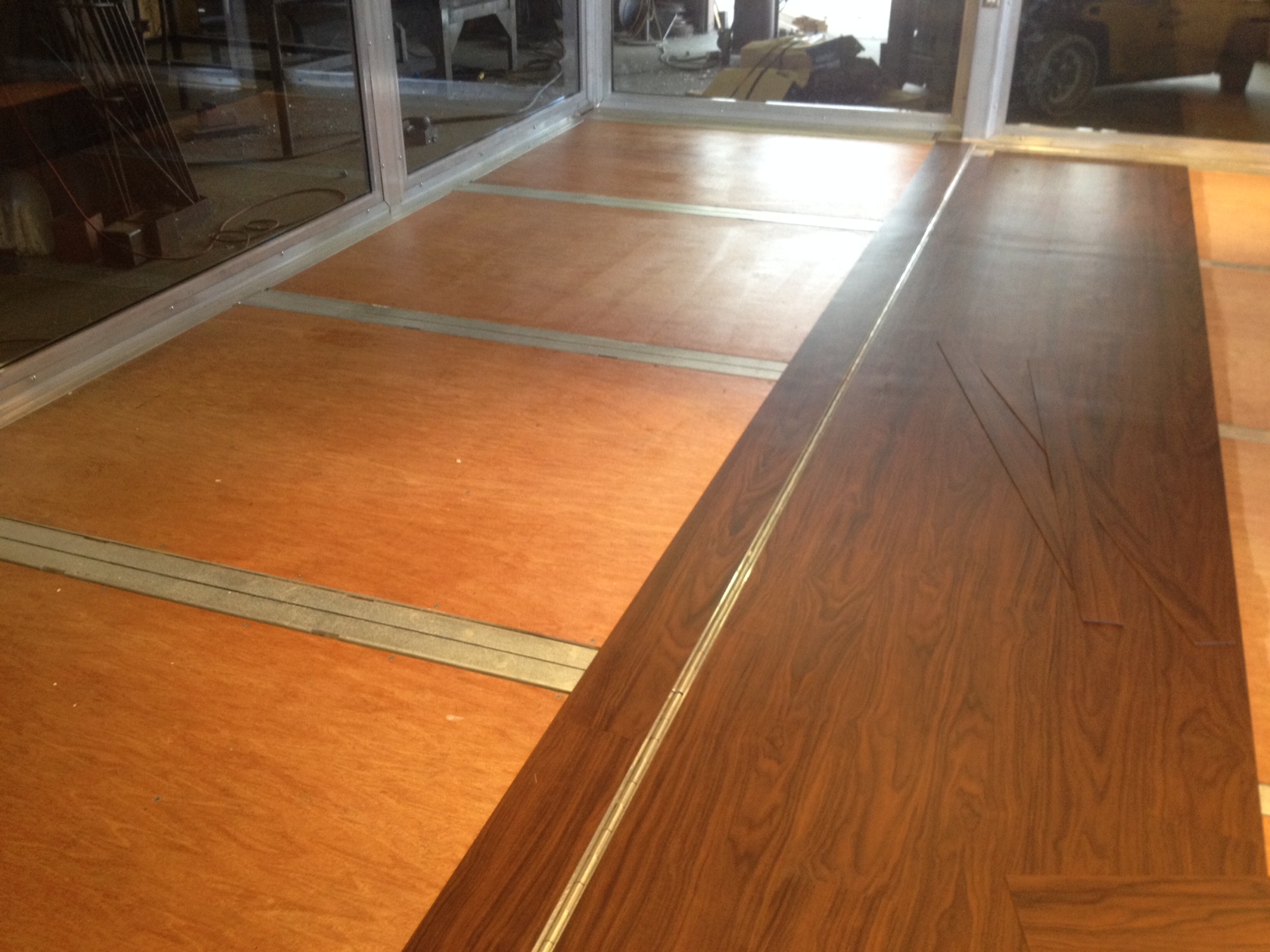

These exciting new components for portable trade show displays consisted of the most advanced high precision display panels that are also the key component used in making the best trade show tables, trade show flooring as well as trade show walls.

These new trade show booths were completely modular, could quickly and easily assembled, disassembled flat-packed, transported and stored ready for the next trade show. See a 70 ft. trade show display including two offices, assembled by one man in less than an hour. See the video.

But the technology did not stop there. The unbridled savvy trade show engineers and designers pressed Sing Core through to an even greater level of high precision composite technology…

t slot wall panels and t slot sliding door as t slot componentsT Slot Trade Show Booths

A staple in high-end industrial applications is the t slotted aluminum extrusion when enabled engineers and designers to create high precision projects. Still, with all the benefits of the aluminum t slot stiles and rails, the project could (and probably would) fail due to the instability of the other structure material that was weak or had the potential to warp, bend, twist, rot or otherwise fail over the lifespan of the project.

Sing Core is the secret ingredient in the most high performance t slot projects industry-wide. The lightweight high strength attributes in tandem with t slot empowered the most advanced architects specify the most complex components that would not have been able to meet the most stringent performance specifications.

It was no surprise to see this new technology spill over into trade show booth design, which faced the same design limitations of trade show truss displays.

Now, trade show designers are able to use the most sophisticated modular trade show structure system to build the ultimate trade show booths, including multiple stories and mezzanines that are lightweight, high strength and can be guaranteed not to warp, bend, twist or otherwise fail for 50 years!

If you’re ready to have the best award winning trade show booth at your next presentation, contact us, for more information.
