Master Quality Door Veneer Surfaces

Our Master Quality Doors are Complimented by Our Ultra High Quality Skin and Surface Choices

Wood Veneers

Veneer allows us to create a high end finish with less weight and cost while offering a wide assortment of beautiful door surfaces.  There are a number of different types of veneers that all provide excellent options that will compliment the styles of your structures.   Difference species generally demand a different price.  Some popular examples are Maple, White Oak, Mahogany, Cherry, Alder, and Hemlock.  Veneers are sold in bundles and range in price, but generally use the most flawless wood to provide the absolute most appealing visual aspects for your doors.  Standard veneer thickness is .020″, and is often used to decorate high end furniture, cabinetry, cabinetry, floors, and even plywood. You can trust Sing Core to veneer your doors, alternatively you can get substrate only and have your veneer applied locally.*

The beauty of veneer is the high quality wood grain appearance that provides you with the most natural aesthetics.  Each piece is completely unique, because it is cut from the actual logs.  Not only does this allow you an amazing modern appearance, but also you can achieve a more vintage, timeless, or antique look.  Normally, better quality veneers are used for doors, because customers want the best looking doors they can possibly get.  Door grade veneer comes in a few distinct grades.

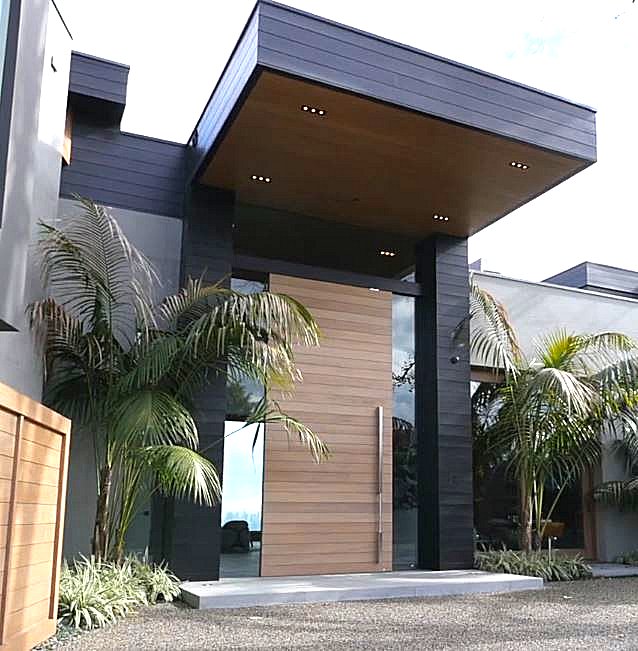

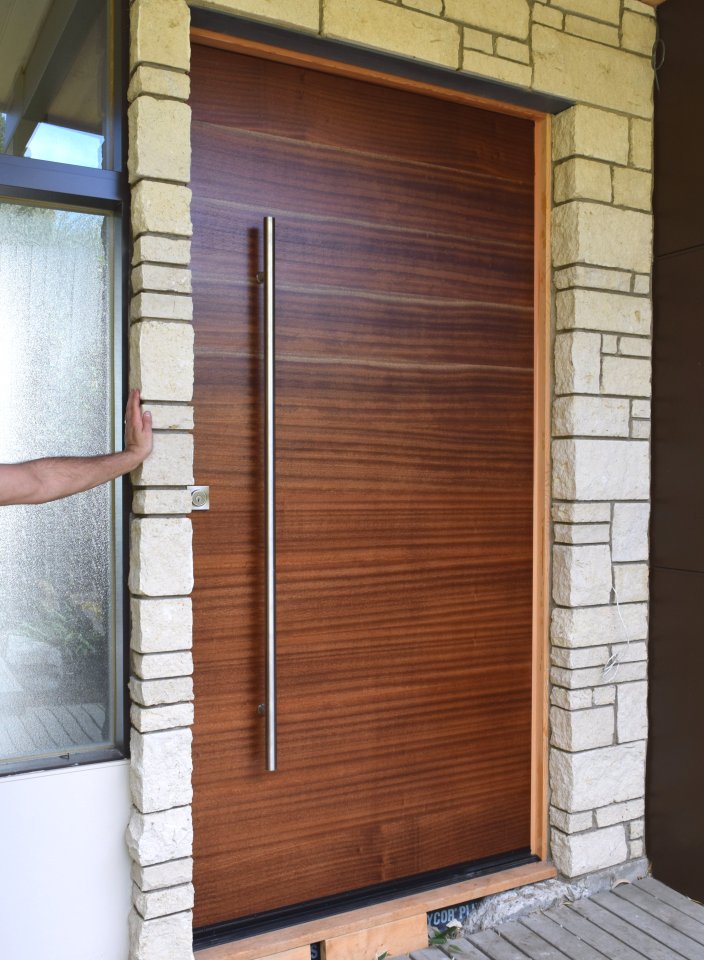

Huge Pivot Door Mahogany Wood Veneer

Gorgeous Massive Mahogany Wood Veneer Door

Face Cut Options

Rotary Cut Veneer – Created by spinning the log and peeling off sheets, almost like unrolling a roll of toilet paper, rotary cut veneer is the most common type of veneer.  The advantage of this type of veneer is that it results in one continuous sheet.  It is a very cost effective way of producing veneer, but it results in a very unpredictable grain pattern.

Plain Sliced or Flat Cut Veneer – This is the second most common cut.  In this method, thin layers are sliced one at a time along the width of the log.  The slices, which are also called leaves, because the blade works its way from the top of the log to the bottom, there is a gradual transition in the grain pattern.  This method of cutting parallel to the growth rings results in a V-shaped pattern that is often seen on sheets of plywood.



Rift Cut Veneer – Another interesting method is the rift cut process, which allows for a more straight-grained look.  In this method the log is quartered, then cut perpendicular to the grain in repeating arches.  The advantage to this is that you get a relatively uniform grain appearance.  The disadvantage to rift sawn veneer is that it costs more, because the process is more time consuming.

Quarter Sliced Veneer – This type of veneer is also sometimes called quarter cut or quarter sawn veneer.  This cut is often specified when the customer wants an exceptionally straight grain appearance.  First, the log is quartered, which allows each quarter to be sliced perpendicular to the growth rings.  Since leaves are cut more narrowly than plain sliced, they are much more easily lined up with other leaves, allowing for superior uniformity.  Despite it’s vast advantages, this method requires a larger log diameter compared to the alternative methods.  This method also achieves a sort of flaking appearance, created when the veneer knife bisects medullary rays in the tree.

Beautiful Maple Veneer Skin

Beautiful Maple Veneer Skin



Veneer Matching Options

white-oak-tall-pivot-door-16-ft-x-3-ft-warp-free-wooden-pivot-doors-50-yr-guarantee



No matter what cut of veneer is applied, without proper veneer matching, your project will not turn out as expected.  Veneer matching is a true art form.  The job of matching veneer is a precise job that requires a detailed approach.  The appearance is partially determined by how the veneer slices are lined up on the doors.

Book Match Veneer – Every other veneer leaf is turned over, like the pages of a book.  With this method, the veneer will be mirrored between each consecutive two leaf section, resulting in a repeating series of symmetrical patterns.  This method is preferred by many, because of the continuity of grain.  This method produces both ascending and descending prominent characteristics of the grain.  Not all cuts of veneer can be used with the Book Matching method, however, but plain, quarter, or rift sliced veneers can all be used for this purpose.  This book end formation tends to reflect light and accept stains differently.  With this method there is also potential for wide color variation, known as “barber pole” in some species or flitches.  Despite these variations, they are still considered desirable.

Random Match Veneer – This method produces a more chaotic appearance, because pieces are generally unmatched, as if the applicator has taken a series of boards and lined them up on the surface of the door.  This produces a more old fashioned look, as something that was perhaps built before modern methods of veneer were invented.  With this method, there is often a deliberate method to reduce grain consistency.

Continuous Match Veneer – This is when the pieces of veneer are used for both the door and the transom, allowing for a very consistent look between the door and the transom.

End Match Veneer – This is generally selected for doors with transoms.  This match uses a single piece of veneer that runs from the bottom to the top of the door.   Veneer can be turned turned at the joint to achieve this appearance.

Slip Match Veneer – This is one of the quickest methods of matching veneer, but requires higher quality veneer that is fairly uniform in appearance.  Sheets are slipped out on the the surface one after the other, creating a wave of repeating patterns.  Some frown on this method, because of the abrupt joints.  This differs from book match veneer in that book match is better at hiding the joints.  Uniformity of color is superior in this method, because each piece has a similar level of light refraction.  It also allows for a relatively straight grain pattern.

Natural Variations

Because wood is an organic product, each piece has its own characteristics.  There is a vast array of grain patterns and formations, which can vary among trees and different flitches.  Because of that, some trees may not meet standards.  Other trees may considered of exceptional quality.  Prices may also vary depending on the quality and appearance of the veneer.  Because of variations in natural grain of each tree and differences in cuts, you can experience amazingly unique grain, pattern, and color, for each leaf of veneer, which translates into an an unlimited variations in door appearances.

In all cases, the natural wood quality will improve and compliment design elements, especially if the wood is applied in its natural state, unfettered by paints and enamels which might hinder the actual beauty of the wood.

Some species, like maple and birch can show a wide variety of color ranges.  When it comes to maple and birch unlimited amounts of sapwood and heartwood, large portions may be unusable, because of unacceptable color.  Sapwood lighter in color, while heartwood is darker in color.  There is also the issue with light, dark, and color streaks, spots, and color variation that results from mixing sapwood with heartwood.  If these sorts of variants in color and grain are not desired by you or your customers, veneer must be selected accordingly.  If lighter shades of veneer are desired, you must specify sapwood maple or birch.  If darker shades are required, you should select heartwood, however, this type is often limited in supply.

 * = Professional veneering can be very tricky. If you are getting substrate from Sing Core and having your millwork (or someone else) apply the veneer, be certain to affirm that they have the expertise to apply the veneer appropriately. We use the highest level of professional veneer professional and techniques. We can guarantee our veneering, if you have veneering done off-site, it is their responsibility to do it correctly. A faulty veneer could jeopardize your Sing warranty.



Door Graphics and Murals

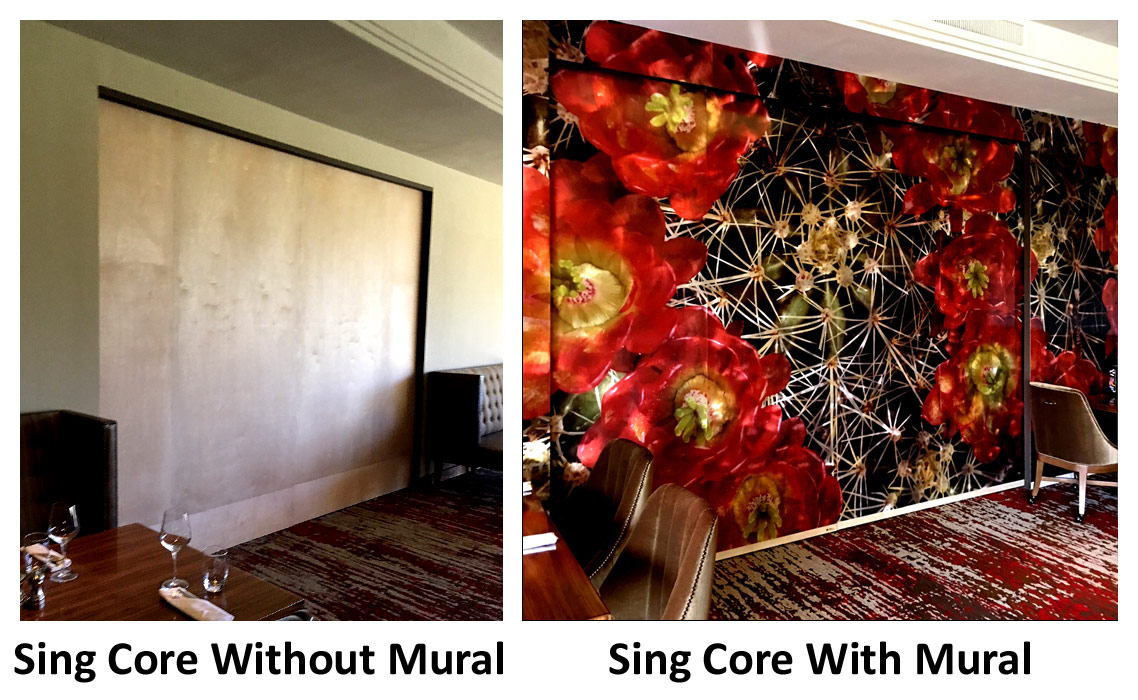

Very Large Sliding Door With and Without Mural

Our doors make an exceptional surface for applying murals, canvases, or printed wraps and images.  This is an excellent way to make an otherwise standard looking door, beautiful and vibrant.

In recent years, graphics, scenes, or photos applied to the surfaces of doors that turn your openings into true works of art.  This style of door is only limited by your imagination!  Some examples are as follows:

  • Fine Art: Amazing portraits, scenery and landscapes, animals, objects like cars and still life images
  • Photos: Nature, wildlife, underwater scenes, forests
  • Designs: Patterns, colors, shapes, and other abstract art
  • Wood Grains: Any sort of wood species, style, or colors
  • Plants: Beautiful flowers, leaves, barks, and other plant based imagery
  • Textures: Pebbled, rusted, grainy, smooth, baked earth and other textures
  • Other: Anything you can imagine can be printed Sing Core doors as long as you have high quality electronic images and graphic files.

We start with a smooth tempered board or Medium Density Overlay (MDO) for a best quality finish, or select a wood veneer or paint grade option for your highest quality finishes.  This is only limited by your imagination!





singcoreadmin No Comments

Lightweight Strong 3/4 inch MDF Torsion Box Cabinetry Panels

Sing Sandwich cutaway exposing patented Sing CorePatented Sing Core is bringing the latest development in lightweight and high strength technology to visit the cabinet industry. Imagine being able to use a lightweight building material that is commensurate with high-tech aerospace technology at 20 percent of the price.

This new cabinetry alternative to MDF 4×8 sheets delivers many times the strength of solid MDF at a fraction of the weight with no headaches. Sing MDF cabinetry panels come in 4×8 and 5×12 sizes in convenient 3/4 inch thickness.

How are 3/4 inch Sing cabinetry panels made?

Start with patented Sing torsion box (2×3 inch grid size) where the voids are filled with recycled rigid foam insulation wall to wall with and sandwich it all between two sheets of 1/8 inch MDF and bond it altogether with formaldehyde-free adhesives for an Eco-friendly lightweight high strength composite MDF panels that out performs any other lightweight building material in terms of strength, weight and longevity.

Compare to other lightweight panel material

Compared to any other lightweight panel building material, like honeycomb panels made of paper honeycomb, aluminum honeycomb, cardboard, or even high-tech aerospace panels (costing five times as much per sheet) Sing 3/4 inch cabinetry panels are a bargain at twice the price.

Secret Ingredient Inside

High precision lightweight high strength warp resistant insulated reinforced torsion box Sing Core high performanceThe secret ingredient inside the Sing 3/4 inch cabinetry panels is the torsion box composite core that is the same product used by the US Navy and other high tech industrial applications where strength and weight are both considerations. This is the same technology used to build large doors – of any size or style – that can be guaranteed not to warp, bend, twist or otherwise fail for a full 50- years.

Imagine having this material inside your cabinetry and/or furniture… Say, “goodbye,” to disposable furniture and heavy cabinetry which are highly desirable qualities sought in aircraft, marine and recreational vehicle platforms for both less weight and less maintenance over time.

Lightweight high performance cabinetmaking material

Lightweight Sing Bookcases

Lightweight Sing Bookcases

Even though plywood and particleboard are fairly standard fare in cabinet shops around the world, certain high end cabinet makers are seeking to embrace this new technology which is the perfect combination of old (torsion box) and new (composite) fine woodworking craftsmanship. Plus (as you undoubtedly already know) both plywood and particle board are heavy and prone to warp and rot; unlike Sing 3/4 inch torsion box cabinetry panels.

Structural integrity

The structural integrity of these hybrid cabinetry panels surpasses anything know in the affordable lightweight composite material and is increasingly finding its place amongst the transportation and general construction categories as an impressive upgrade alternative to plywood or other materials.

Built-in insulation

Sing composite cabinetry panels feature built in insulation (the rigid foam insulation filling the torsion box voids) that is a unique added feature whether you are building cabinets and/or other furniture.

Easy to work with

Standard woodworking tools are all that is required to take full advantage of Sing cabinetry panels, treat them just like you would any standard 4×8 piece of 3/4 inch panel.
Sing cabinetry panels are revolutionizing the industry as they are increasingly being found as a standard commodity in cabinet shops, millworks and furniture manufacturers throughout the United States and the world.

Edges

Sing cabinetry panels have unfinished (exposed, i.e. you can see the core) edges. This is easily remedied by adding edge trim, or closing the edge by any method desired. Also, the core material can easily be routered to accommodate insertion of wood implants where desired or necessary.


Simply CNC router out Sing Cabinetry Panels to insert any desired material.

Made in the USA

Eco-friendly Sing cabinetry panels are proudly made in the USA

singcoreadmin No Comments

Sing Panel Solid Edge Options

Sing Panel 4 ft x 8 ft x 1.5 inch with embedded solid wood edges

Here at Sing Core, we’re proud to be providing the Custom Sing Panel to the high end architects, millworks, designers, engineers, and contractors around the world. It is our sincere desire to see Sing Panel in use in all American industries and applications.

A Sing Panel has Sing Core inside and solid or closed edges. Enclosing and encapsulating patented Sing Core can take on a variety of forms depending on specifications, function, the useful purpose and high performance standards of your application. Many different options are available and there are no hard-and-fast rules. Or Sing Core true flat experts will be able to assist you in having the performance and connectivity options that you (or your clients) seek, meeting and likely exceeding expectations.

Edge-banding

Edge banding sing sandwich lightweight high strength honeycomb panelEdge-banding can take on many different forms. The first method, as when working with a standard Sing Sandwich with plywood surface, would be to use a similar strip of wood to match the surface material cut to the thickness of the panel, then gluing the strop to the exposed area and finish the edges to your specifications. You may use a material that does not match the surface as edge-banding materials are readily available in almost any material including nylon, plastic, aluminum and other composite materials. See also: T Molding

Interior Blocking

Interior blocking solid wood closed edge sing sandwich lightweight high strength honeycomb panelYou can use any solid material cut to size for interior blocking to seal the edge of your Sing Panel. In most cases, this is a slender piece of wood that can be used not only as an edge but for purposes of connecting hardware (perfect for using cam locks) or joining to other panels. The default material is a 1.5 inch solid wood edge that is evenly flush with the edges of the surface material.

T Slot Panel

Interior T slot closed edge sing t slot panel lightweight high strength honeycomb panelAdding T Slot stiles and/or rails to our patent-pending T Slot Panel is one of the most high precision methods used by our most exclusive industrial clients that enhances all the attributes of Sing Panels without compromising the most precise connection methods while taking advantage of all the readily available hardware options offered by the growing T slot industry.

U Channel

The U channel is an effective manner of closing the edge of a Sing Panel and it can be used in three alternative fashions depending on your intended application of your Sing Panel. Having three closed sides and one open side, the U Channel could be made of any material, like wood, plastic, aluminum, etc… and it can be embedded and pre-bonded into place when the panel is manufactured in any one of these ways.

1 End Cap Closure

U channel end cap closing sing sandwich lightweight high strength honeycomb panelEmbedding the U cannel to the exterior of the exposed edge seals the edge nicely. While this is quite common it is the method that leaves a slight lip that may or may not affect the end product. The other U channel methods leave smooth edges without a ridge.

2 Embedded Open Cavity

U channel inside open cavity sing sandwich lightweight high strength honeycomb panelEmbedded open cavity reverse U channel extruded aluminum closing the edge of sing panelUseful in many high tech designs, the embedded U channel with the cavity exposed can be elegant and useful when integrating your Sing Panel into your design. Possibilities about with the exposed cavity for running utilities, adding hardware, using as a track over rollers, and joining panels.

3 Embedded Closed Cavity

U channel embedded concealed cavity sing sandwich lightweight high strength honeycomb panelFor a sleek, smooth effect using an embedded U channel, embedded inside with the closed edge exposed is an excellent way to use your U channel. Certain advantages come with using this method, especially if your U channel is made of aluminum or steel for machining, etc…

Embedded Aluminum Square Tube

Embedded aluminum square tube sing sandwich lightweight high strength honeycomb panelLike the embedded closed-cavity U channel, extruded aluminum tubes in a square format (closed on all four sides) can also be embedded in your Sing Panel offering extra reinforcement and connection options.

Edge Fill

Edge fill closure sing sandwich lightweight high strength honeycomb panel Edges can be mildly routed out to your specifications and filled with any specified materials, like epoxy, to achieve the closed end results that you desire.

… And these are only some of the most popular ways of closing the edge of a Sing Panel.





singcoreadmin No Comments

Semi-Custom Panels

Length x Height are fully customizable to your project’s needs. Select a standard skin (Birch or Luan plywood) at standard panel thicknesses of 1.5″ or 2″. These semi-custom orders provide expedited shipping and a price reduction.

Skin Options

¼” Skin: Birch or Luan



Panel Thickness

  • Panel Thicknesses: 1.5″, 2″

Example Standard Order Spec

8′ x 4′ x 1.5″ Standard Panel || ¼” Birch Skin and 1.25″ Birch Edging || Small (2″ x 2″) Torsion Box

8' x 4' x 1.5" Standard Panel || Birch Skin and Edging || Small (2" x 2") Torsion Box



singcoreadmin No Comments

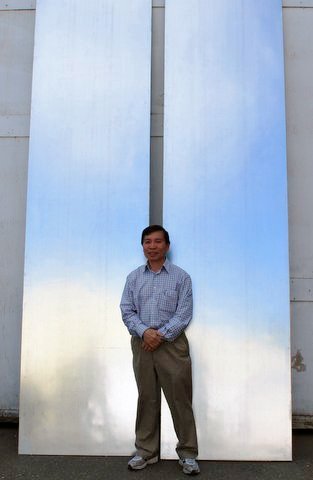

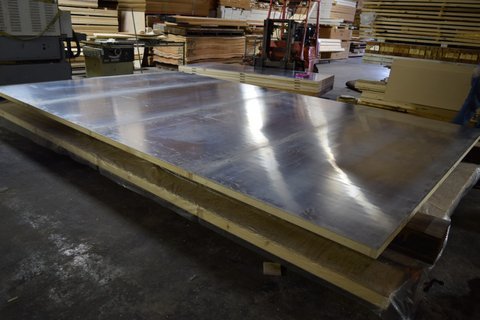

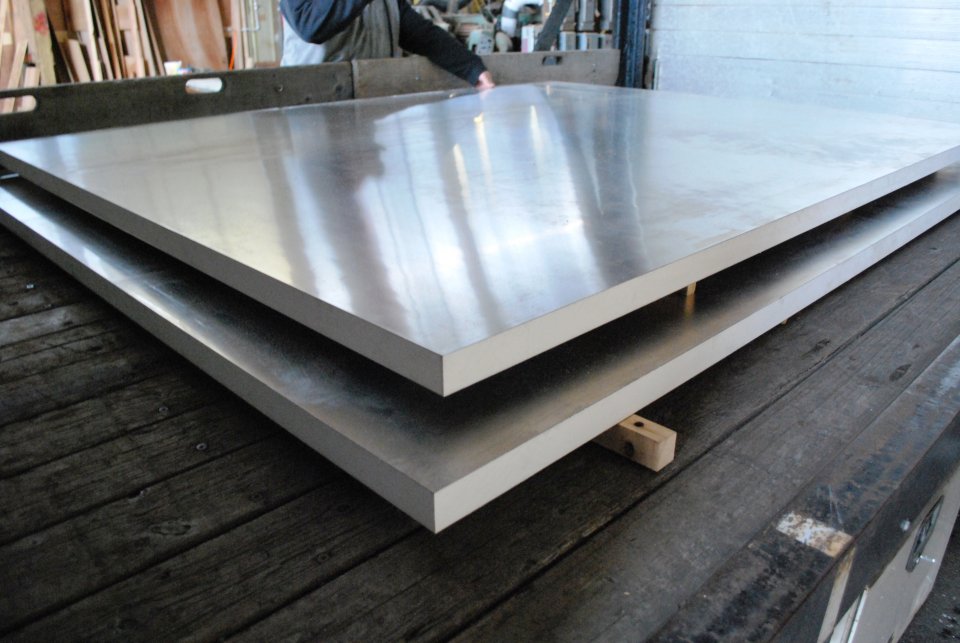

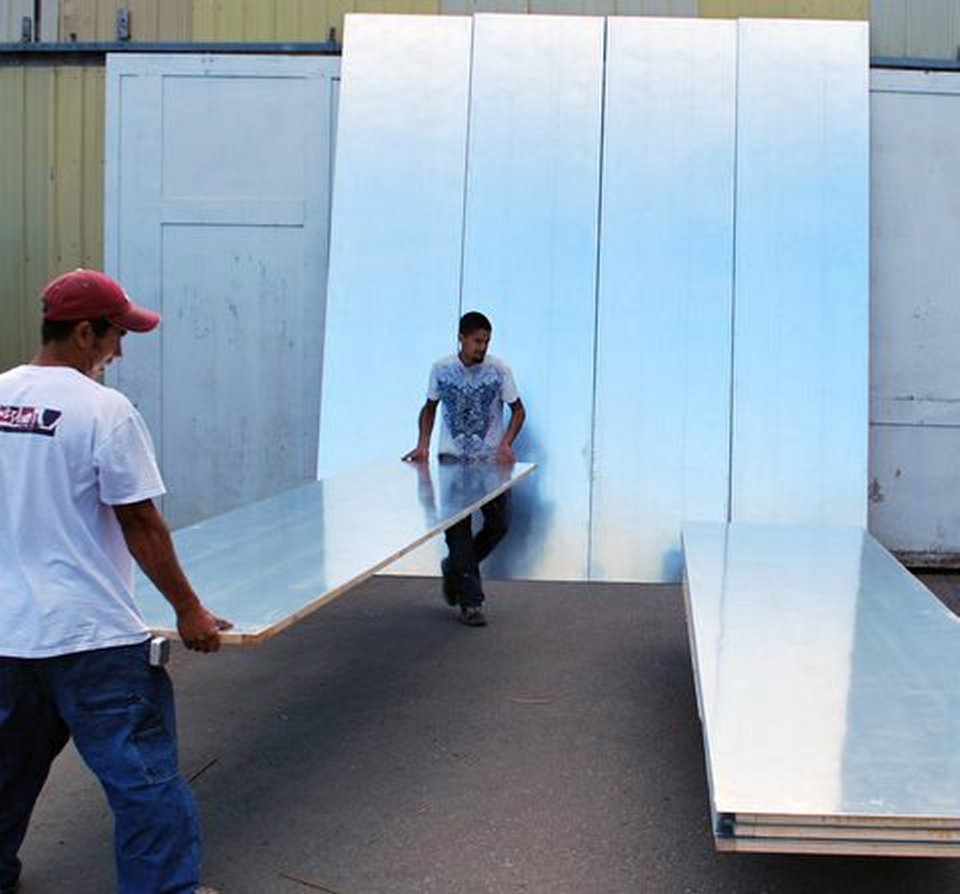

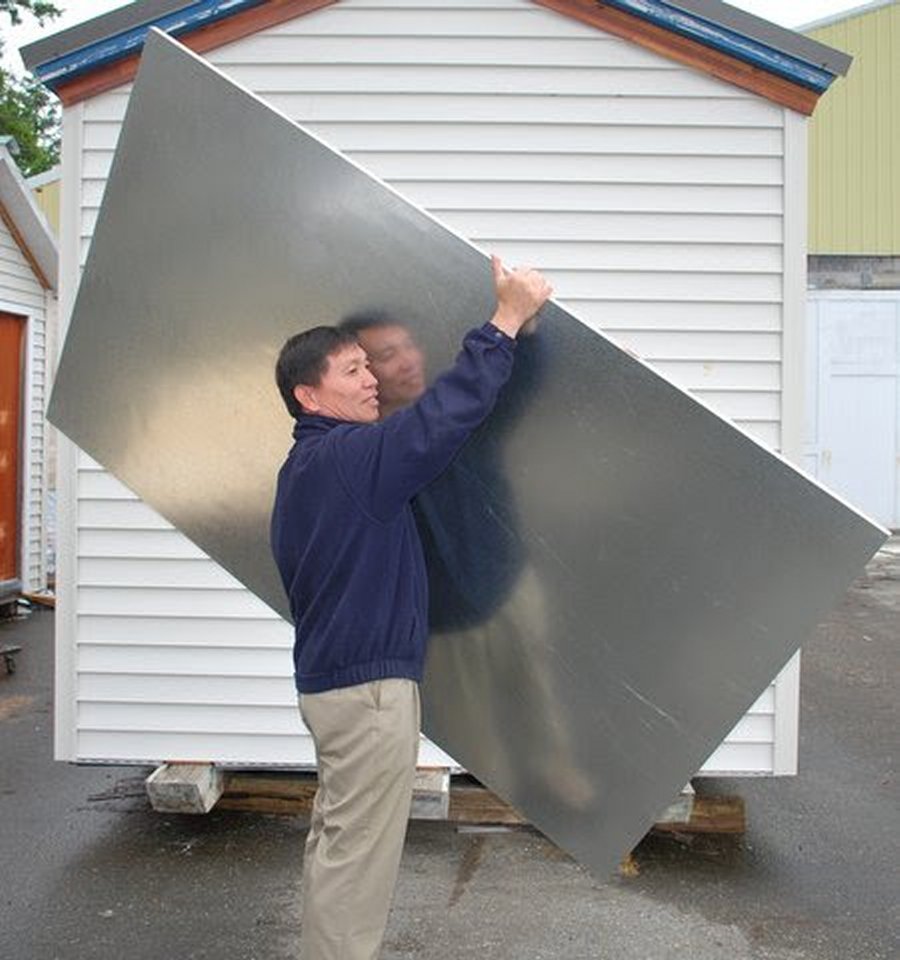

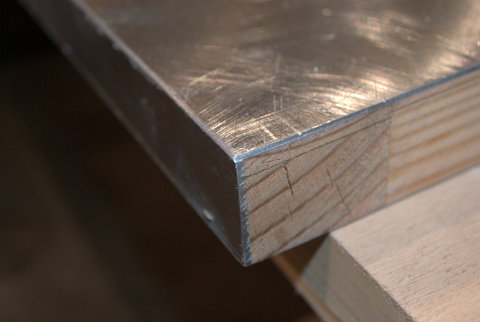

Sing Core Metal-Skinned Panels

lightweight panel honeycomb high strength sing aluminum

Click on picture to see our aluminum page.

Click on picture to see our cold-rolled steel page.

Click here to see our galvanized steel page.

Click on picture to see our galvanized steel page.

Click here to see our stainless steel page.

Click on picture to see our stainless steel page.

Our patented Sing Core honeycomb/torsion box panels can be covered in a metal skin of either aluminum , cold-rolled steel, galvanized steel, stainless steel, etc., depending on the desired effect and/or use.  (See applications.)  When covered in metal skin, our lightweight 2 x 2 inch grid panels include the following features to order:1)          Inch per inch stronger than steel (tested at 660 PSI);2)          True flat to 1/16” per 8’ (for 50 years with our professional guarantee);3)          Lightweight;

4)          Flutter/rattle resistant;

5)          Rust resistant:

6)          Non-combustible;

7)          Highly resistance to moisture corrosion/waterproof/water resistant/storm proof;

8)          Resistant to fungi;

9)          Available in a variety of finishes, thicknesses and densities with numerous panel edge options;

10)        Sound deadening;

11)        Insulated from R3 to R6.6;

12)        Standard panels come embedded with solid wood edges for easy assembly;

13)        Available in almost unlimited custom shapes and designs; and

14)        Many more custom features.

In addition, our Sing panel cores are made with our patented, formaldehyde-free, non-toxic eco-friendly glue and recycled foam.  Overall, metal Sing panels are the superior choice for strong yet lightweight building materials and are proudly made in the USA.

For projects requiring long panels, Sing Core’s special invisible seam technology creates extremely long/tall panels with unsurpassed strength and rigidity that still remains true flat up to 50 feet. Thus, metal-skinned Sing Core panels exceed AWI standards.  Our large Sing panels stay dimensionally stable regardless of temperature and moisture changes.

For projects requiring special features, our metal Sing panels can be specially upgraded. For example, Sing core panels can be made fire retardant, bullet-proof, radiation-proof, etc, according to need.  Sing panels can also be manufactured up to 6 inches in standard thickness (custom thickness available).

Metal-skinned Sing panels can be used to make projects ranging from kitchen tables to walls to doors to metal roofing to metal floors to truck panels to electrical towers to outdoor benches to magnetic panels to modern art.  The possibilities are virtually unlimited!

Rush jobs can be custom made within 24 hours with material availability and delivered within 48 hours if less than 5 feet wide.

To determine pricing and to order see our pricing page.

Compare the available gauge:

(click to enlarge)

Metal guage weight table
singcoreadmin No Comments

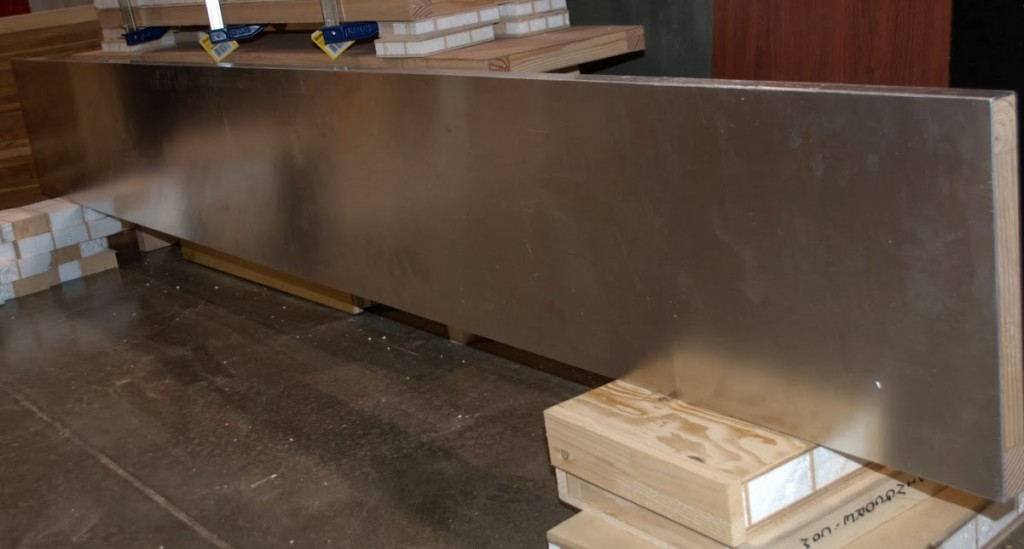

Sing Wood Planks

Home -> Products -> Material Options -> Wood -> Wood Planks

Sing-Core-Wood-Planks-are-LightweightSing Core Wood Planks are elongated and rectangular solid wood on six sides, a lightweight super-strong eco-friendly alternative to solid wood material used in carpentry and the construction of ships, houses, bridges and other structures.

In stock standard sizes of Sing Planks:

  • 2×8
  • 2×10
  • 2×12

Though our most popular is our 2×12, Sing wood planks are available in any width from eight to twelve inches, any thickness from 1/8 inch to six inches and any length up to 50 feet long.

Wood Plank Doors

Sing Core wood stave door blanks are the only solid wood doors that will not warp, bend, twist or cup following installation.

Only patented Sing torsion box core/foam composite with our years of experience in providing guaranteed solutions for oversize doors that are guaranteed not to fail will deliver the high performance that discriminating clients seek.

Sing-Core-Wood-Plank-Walls-and-Wood-Plank-FlooringWood Plank Floors

Returning to our early American roots, many homes and buildings are returning to the natural beauty of wood plank floors. Sing Planks are available in a variety of options that include:

  • Tongue and groove
  • Any available natural wood finish
  • Ceramic tile (fire proof)

Wide plank flooring adds an unmistakable feel of warmth, tradition and comfort to any home.

Advantages of Sing Plank wood floors is that they are

  • Insulated
  • Sound deadening
  • True flat
  • Lightweight
  • Easy to install
  • Eco-friendly
  • No warping
  • Long lasting

Sing-Core-Wood-Plank-Home-InteriorsWood Plank Ceiling

Sing wood plank ceilings are rapidly gaining popularity in the Americas. More than just the addition of beams, planked ceilings add visual texture and interest creating great focal points in a room.

Wood Plank Siding

Since colonial times, Americans have protected their houses from the weather with thin, overlapping wood planks known as clapboards.

Sing Plank Siding is available in any wood surface including:

  • White pine
  • Hemlock
  • Spruce
  • Cypress
  • Western red cedar
  • Mahogany
  • Redwood
  • Teak wood
  • Cherry wood
  • Walnut wood
  • Cedar wood
  • Ipe wood
  • Sapele wood
  • Poplar wood
  • Ebony wood
  • Ash wood
  • Oak

And is also available in a wide variety of man-made materials such as fiber-cement.

Wood Plank Scaffolding

Sing Planks are commonly used as a work surface on elevated scaffolding; therefore need to be wide enough to provide strength without breaking when walking on them.

Sing-Core-Wood-Plank-Stairs-and-StaircasesSing Planks are also used in

  • Shelving
  • Stairs tread
  • Staircases
  • Wood plank walls
  • Cloud ceiling
  • Table top
  • Crown molding
  • Stair railing
  • Post and beam



If you’re checking with your favorite lumber liquidators, ask them about Sing Planks as your eco-friendly alternative to

  • Hardwoods
  • Laminates
  • Lumber
  • Plywood
  • Timber
  • Wood lumber

dsc_0083 DSC_0443 DSC_0523-1

See Also: Sing Post and Beams as well as our other find eco-friendly products

How to BuyMetal Composite Sing Core panels are true straight, light and strong.

To order Sing Large Doors submit an order form either by email, info@singhome.com, or print and fax it to: 360.495.4585. We’ll provide a quote within one business day. If you have questions, please contact us.

Easy Ordering

All we need to know is the length, width, thickness and what you desire on the exterior, and your custom specialty panels are made to order. Getting a quote for your specialty product, is easy, thanks to our simple online order system.

Bulk Discounts

If you’re looking for a bargain price, remember, the more you order, the less expensive your total order will be per piece. Quantity and wholesale inquiries are encouraged. Feel free to contact us for more information. Click here for Closeout specials.

Fast turnaround: In you’re in a rush, only Sing Core can be custom made within 24 hours and is proudly manufactured for you in the USA.

Fast delivery: Any thickness and almost any length, less than 5 ft wide, can be made with in 48 hours if it is rush order.

SINGCORE Large Doors are easy to order. You may choose from our stock panels or order custom sized panels. Our price is based on the length, width, thickness, and quantity. Submit a Work Order by fax or email, and we will give you a quote within one business day. If you have a tight budget, give us a call, we might have an alternative solution tailored to your needs.



singcoreadmin No Comments

New Revolution in Trade Show Display Material

These new, lightweight, high-strength and true flat patented panels are sold by the square foot, just like traditional plywood and sheet goods.

Click Here for Economy Trade Show Panels

Sing-Core-Long-Carry-Bangkok-Thailand

40 ft engineered plywood: 2 inch thick weighs in at only 2 lbs. per sq. ft.

20 ft x 5 ft x 1 in galvanized steel panel high strength demonstration with 2 men standing on lightweight honeycomb panel 375 lbs

Metal panel: 20 ft. in length x 5 ft. wide x 1 inch thick weighing in at 3.75 lbs per sq. ft. and strong enough to hold 2 people. See pix.

Assembly of storage unit in trade show display lightweight high strengthHPL Trade Show Display Panels

Watch the video for slatwall, track wall, magnetic wall, two story trade show office, floating shelf, cable hanging shelf, etc… You design and we will build the panels for you – this 70 ft. custom trade show system be assembled in less than an hour by 1 man; including 70 ft. of back wall, side walls an enclosed office and storage area.

Now available in affordable lightweight slatwall trade show displays

All Sing Panels are sold like plywood by per square foot.

Fast price quote within 24 hours for custom trade show displays made to your specifications.

Your choice of material options including (but not limited to) HPL, plastic, any type of metal, plastic, plywood, etc… in many colors ready to trim to almost any size and/or add vinyl or metal skin for magnetic sign or hook. Available in almost any size thickness and/or shape.

the-secret-inside-true-flat-doors-oversized-large-doors-larg-sliding-doors-honeycomb-coreHigh performance engineered plywood

See pictures of Sing Panel and Sing Post and Beam supplied to high-end mill works from coast to coast. Click here to see clients list.

How is it possible?

The secret is in our patented natural vertical-wood-grain-torsion-box-filled-with-foam core that allows your team to build huge displays (even 2 stories) without framing.

Wholesale to trade show manufacturers

Click here to see our retail price and compare how much per sq. ft. your cost for the untrimmed patented Sing Panel. You will find out Sing Panel will not only become your top performer in the trade show display industry but reward you with a good profit margin by using Sing Panels.

sing-core-made-in-the-usaMade in USA high quality

All Eco-friendly Sing Panels, post and beams are proudly made in the USA.

We can produce hundreds of panels per day by our state of the art technology.

For your viewing please we are providing your with some extra photographic representations of some of the many possibilities of teaming your trade show display company with Sing Core. Feel free to view our Trade Show Display Gallery.

singcoreadmin No Comments

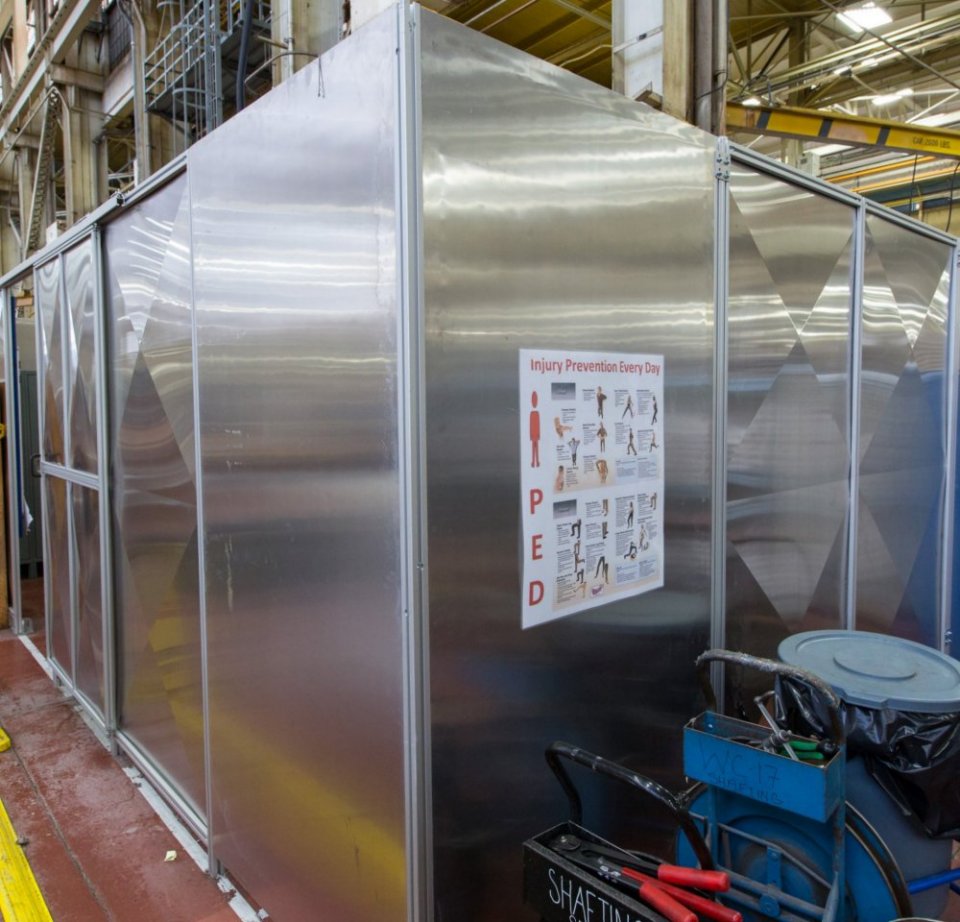

Aluminum Panel Applications

Sing Core Aluminum Panels have a wide variety of applications.

Quite frankly, when most people think of using patented Sing Core aluminum homeycomb panels as solutions to their eco-friendly design challenges, they have something in particular in mind…In comparision to other aluminum honeycomb panels, sing core aluminum panels are lighter in weight, stronger than steel pound-for-pound and are “true green” building materials.Many people are surprised to find that sing core panels are used in such a wide variety of methods covering nearly every category of project design and development.



When your project demands lightweight, superior strength, and sustainability, Sing Core metal composites are the logical solution.



To the right, is a general list of just ome of the many applications, where people have accepted the Sing Core challenge.











sing-core-animal-enclosuresAnimal Housing Labs & Vivariums
Barricades
Clean Room Walls
Ceiling Panels
Cleanrooms
CMM Rooms
Cold Storage Rooms
Computerized matte cutting tables
Controlled & Critical Environments
Decking
Digital X-Ray Systems
Doors
Elevators
Equipment Enclosuressing-core-clean-room-laboratory
Fixturing Panels
Flooring
Gangplanks
Impact Attenuation Panels
Inspection Rooms
Interior and exterior cladding
Laboratories
Laser Rooms
Machine Components
Machine Enclosures
Manufacturing Cells
Metrology Labs
Microelectronics Manufacturingsing-core-laboratory-environment
Moveable Floors and Covers
Nano Technology
Oil Mist Enclosures
Packaging Rooms
Paint Finishing Enclosures
Paint System Enclosures
Parts Storage & Control
Pharmaceutical Packaging
Plant Space Dividers
Powder Coating Enclosures
Reflector Panels
RV panels
Server Rooms
Shelterssing-core-solar-reflector-panels
Sidewalls
Signage
Specialized Doors
Sporting electronics
Storage Rooms
Telescope Mirror Covers
Temporary rooms
Truck/trailer doors
Walk Ways and Platforms

Transportation – Ships, railcars, semitrailers, truck bodies, luxury yachts

sing-core-truck-trailersing-core-yachtsing-core-rail-car



Can be used inside transportation vehicles as raised floor, storage, or handling cargo.

Raised floor in van for handling cargo (see photos above)



singcoreadmin No Comments

Aluminum Honeycomb Panels

Lightweight & High Strength Aluminum Honeycomb Panels

Aluminum face sheets over patented Sing Core. Sing aluminum honey panels are lightweight, dent resistant and stronger than steel in inch-per-inch independent tests. Sing Core aluminum honeycomb panels are used where impact is likely to occur.

Unlike other aluminum honeycomb panels, Sing aluminum honeycomb panels are manufactured in the USA (which is better for the earth because here at home we care about the environment and have strict regulations to follow) using less energy, creating less waste and our grids are not hollow. In contrast, sing aluminum honeycomb panels are solid, insulated, sound deadening and stronger than steel pound for pound.

Our sing core aluminum honeycomb panels are the solution for a wide range of applications requiring guaranteed flat, light weight, and rigid specifications.

Sing core aluminum panels are the best choice when it comes to aluminum honeycomb panels.

Why Use Sing Core Aluminum Honeycomb Panels?

Superior Strength

Patented sing core aluminum honeycomb panels are stronger than steel, utilizing a 2×2 inch grid with our patented design and process ensures more strength in comparison to aluminum core.

More Lightweight

Sing core aluminum panels are more lightweight than aluminum core without compromising strength.

Green-eco-friendly-sing-coreInsulated Aluminum Panels

Sing core aluminum panels are fully insulated and have sound deadening properties are are intrinsic to the patented process and design.

Not Hollow

Sing core end product compares in weight to hollow core aluminum panels, but sing core is a solid core that out-performs any other honeycomb core (or even solid cores) available elsewhere.

Limitless Production

Amazingly, compared to other panel manufacturers, sing core aluminum honeycomb panels can be manufactured to your specifications, leading to nearly limitless opportunities for designers. Imagine: any size, any length, any width, any thinkness… We even peoduce sing core aluminum posts and beams

Eco-Friendly

The patented sing core process and end products are considered “true green” technology. The process uses less manhours, energy and equipment to create than any other panel product. Our patented process also creates less waste, making the world (and your project) a better place.

Lightweight, Strong, Corrosion Resistant

Sing core aluminum honeycomb structural panels are ideal where lightweight and high strength are requirements. Sing core panels offer exceptional corrosion and heat/fire resistance (some even fire-rated) along with the highest weight-to-strength ratio and dimensional quality (flatness, etc.) plus the benefit of being organically inert and naturally anti-microbial.


The Best, Lightweight Aluminum Panel Super Strong Ever

Sing core aluminum honeycomb panel applications include:

• Transportation – trailer, rail, marine, used in floors, walls and ceilings
• Cleanrooms
• Temporary rooms
• Structures and barriers

Sing core aluminum structural panels offer:

• Lightweight
• High strength-to-weight ratio
• High moisture and corrosion resistance
• Noncombustible; fire resistant
• High mold and fungus resistance
• High thermal conductivity

Lightweight aluminum honeycomb creative solutions:

• Aluminum I beam
• Aluminum frame
• Aluminum planks
• Aluminum building panels
• Aluminium roofing

Sing Core Aluminum Panels

When applications require a lightweight, high strength composite panel, sing core aluminum panels are often the best solution. These panels are non-combustible and have high resistance to moisture, corrosion, and fungi.

Sing Core Anodized Aluminum Panels

High strength architectural soffit panels are available in a variety of finishes, thicknesses, and densities with numerous panel edge options.

Sing Core Aluminum Treadplate Panels

These structural aluminum panels feature a stainless steel treadplate face for applications requiring a walkable ceiling plank. They can be installed in the same basic manner as ceiling tile and are available in Kynar, epoxy, and anodized finishes on the opposite side.


We have helped a great many people and designers overcome their complicated engineering challenges by using sing core aluminum panels as their solutions. For example, sing core has been used in the following applications:

Animal Housing Labs & Vivariums, Barricades, Clean Room Walls, Ceiling Panels, Cleanrooms, CMM Rooms, Computerized matte cutting tables, Controlled & Critical Environments, Decking, Digital X-Ray Systems, Doors, Elevators, Equipment Enclosures, Fixturing Panels, Flooring, Gangplanks, Impact Attenuation, Panels, Inspection Rooms, Interior and exterior cladding, Laboratories, Laser Rooms, Machine Components, Machine Enclosures, Manufacturing Cells, Metrology Labs, Microelectronics Manufacturing, Moveable Floors and Covers, Nano Technology, Oil Mist Enclosures, Packaging Rooms, Paint Finishing, Enclosures, Paint System Enclosures, Parts Storage & Control, Pharmaceutical Packaging, Plant Space Dividers, Powder Coating Enclosures, Reflector Panels, RV panels, Server Rooms, Shelters, Sidewalls, Signage, Specialized Doors, Sporting electronics, Storage Rooms, Telescope Mirror Covers, Temporary rooms, Truck/trailer doors, Walk Ways and Platforms, etc…

We are making a positive impact in the transportation industry by providing solutions to Marine (everything from sailing ships to luxury yachts), Railroad and railcars, Trucks and semitrailers.

Contact us today or request a quote to find out how singcore can help deliver the aluminum structural panel system best suited to your project.

Click here for more information on sing core metal materials and options…

aluminum i beam
