The simplest and least expensive way to join sing panels is to join in any way according to your budget and/or expertise.
Due to Sing Panels being so straight and true it is easier to join panels together because they line up perfectly unlike other building materials.
In many cases, for instance, standard 4×8 panels can be nailed, glued or channel-joined quickly and easily with satisfactory results.
Other options for fastening panels may include cam locks (see examples left and right) that can be pre-installed, making assembly and joining easy and more secure.
The Sing cam-lock panel solution is a high-demand solution for panels that are routinely assembled and disassembled, especially in moveable walls, trade show booths, and various wall cladding applications. See: Cam Lock Panels
Connect multiple panels together in any configuration
Add lightweight high strength Sing modular shelves
Lightweight + Strong
L & T Connectors
X Connector 4-way
One of the most inexpensive and secure ways to join sing panels is by utilizing a simple nut and bolt connection method, especially, if the panels will be routinely or repeatedly assembled and disassembled.
Stainless steel nuts and bolts offer the safety and security when joining sing panels.
In many cases, Sing Panels can be pre-configured for biscuit joining at your site of factory.
Especially for large projects, this enables Sing Core panels to be sent individually, reducing shipping and handling costs, for assembly at your facility or job site.
See images below for example of biscuit assembly of Sing Panels
Unless specified Sing Panels do not ship edge-banded as 93% of our wholesale customers do their own edge-banding when finishing their Sing Panel.
Edge banding can take many forms from vinyl and plastic to wood and steel. Sing Panels are not intended for use as an un-banded product and may not qualify for our 50 year warranty if un-banded.
If your intention is to get the best, most long-lasting performance from your Sing Panels, feel free to take advantage of our free consultation to be guaranteed to achieve the results that you desire.
Insulated metal roofing panels
Edge Banding Options Include:
Here is an example of a large lightweight high-strength non-warping sliding door.
Note the steel T molding being installed to complete the door’s composition.
This door is guaranteed not to warp, bend, twist or otherwise fail due to being properly engineered and manufactured to exceed the specifications of this oversized architectural door.
Photo courtesy of Vancouver Doors
Advanced Large Panels
Sing Core specializes in extremely large panels (up to 50 feet) that are extremely true flat and use our nearly seamless assembly process.
This is the most high-end and expensive process where we perform the highly specialized meticulous work in our factory yielding the high level of perfection that many of our most discerning clients require. See: our clients.
These must be manufactured in our plant to ensure accuracy with tolerances within thousandths of an inch and are more costly to ship due to the nature of their being larger than multiple panels that can be assembled on-site.
Connectors for Connecting
One of our many features is the ability to add fasteners/locks to our panels…one example of this is the “S-Hook Lock” with a turn of the hex wrench you can fasten or unfasten your panels quickly.
The “S-Hook” fastening lock that is attached to the side of these panels to allow for easy assembly of the wall system.
With a quick turn of your wrist on the hex key your panels will be attached to each other.
Barn Door Assembly or ‘H’ Channel
If you are planning to keep your panels as a permanent structure you may choose the H-Channel attachment feature. Apply your adhesive the slide panel into the channel on each side then either veneer over the panel and channel or you may choose to putty, sand and paint your panels to cover over the H-channel.
Tongue and Groove
Tongue and groove is another fastening choice especially if you using our panels for flooring or ceiling. Make a nice almost seamless connection but give wood veneer a hardwood flooring appearance.
This is a modified biscuit joint attachment. Similar to the H-joint the you are using a single long “beam” as the connector and gluing them together. Best use is for oversize tables (such as vacuum tables) and oversize doors as well. Because our panels are made of honeycomb rather than solid wood, they will not warp. Our honeycomb is light and strong.
The ever popular ship lap as a connector alternative.
With the wide variety of applications for Sing Core panels, posts and beams, and equally diverse selection of fasteners are used in practical installations.Here are some of the most popular fastening systems used today:Norse Inc. LatchesNorse latches are designed for concealed installation in Sing Panels. Multiple configurations of latches and receivers are possible to suit many applications, and offer numerous advantages.Click Here for More Information …Knape & Vogt Manufacturing Company
More than a century of experience to the design, manufacturing and distribution of functional hardware, storage-related components, and ergonomic products for original equipment manufacturers of the Tite Joint Fastener Draw Bolt.
An International leader of innovative threaded fastening solutions. Developers of the Draw Bolts and Zipbolt™ tight joint fasteners. They are constantly testing and developing fasteners that are easier, faster and less costly to use.
Over the past five years, FastCap has grown exponentially and has expanded its products base from the Fastcap to a vast array of woodworking products and tools, like the FlipBolt Tite-Joint Dog Bone Fastener Tool-less Draw Bolt.
The range of panel fasteners and plastic clips available from ITW Fastex is designed to fill most fastening requirements. The range of applications is wide from machines, appliances, and computers to recreational vehicles and point of purchase displays.
Shur-Lok fasteners and components are designed to satisfy customer requirements in two general application ideas: secondary structures, such as interior stow bins, lavatories and galleys, and primary structures, such as aircraft engines, engine pylons, landing gears, wings, gearboxes, transmissions and helicopter rotors–all critical applications.
Special and bespoke bonding fasteners. In addition to Veck Fasteners standard range of popular bonding fasteners, we provide purpose-designed special and bespoke bonding fasteners for customers who have specific requirements which cannot be fulfilled from our standard range.
CEL FASTENERS are innovative tools to anchor and attach and remove sandwich panels easily and quickly.
The advantages of CEL’s fasteners are:
Possibility to attach and detach the panels quickly to carry out maintenance work or substitution
Precise positioning and multiple removals
Initially developed in compliance with to the needs of shipyards, this anchoring system is more and more used in different sectors:
Shops’, hotels’ and trade fairs’ assembly
Transport: buses, trains, vans, etc.
Solid wood implants can be placed anywhere inside your custom Sing Panels for attaching hardware or other anchoring, including lock blocks and the like.
Individual connection inserts can be specified at specific locations to meet all your connection method needs. These can include, potted inserts, Rivnuts, Helicoil inserts, blind inserts with tabs and spool inserts, just to name a few.
The above data are to the best of our knowledge correct and are intended to give information about our products and their potential applications. No warranty is given or implied in respect of certain properties of the products or their suitability for a particular application. We reserve the right for technical changes without further notice. We guarantee impeccable product quality under our terms of sale.
The paint grade door is the standard Sing Core Panel that we make. It is our most popular option due to the low cost. Even though this is one of our more affordable options, it still performs better than any other panel on the market. It is light, strong, straight and eco friendly.
Wood Grain Panels with Veneer
Our wood grain veneered panels are high end panels meant for staining. They come unfinished and ready for you to stain. This is a more expensive option for those that want that extra fine look of natural wood.
Our Wood Grain panels made of wood planks are a popular option due to the fine wood grain look without the high cost of veneer. These planks are more expensive than the basic paint grade panels but have a unique look and feel without losing the properties that drives people to buy sing core panels in the first place. You can join the panels to create a floor of almost any width. This also provides more options of floor thickness than any other flooring provider. Less solid wood means more eco-friendly.
Metal Panels – Steel or Aluminum
Custom Size and thickness of steel skins to reach the fire code you desire. Solid and sturdy they are the only high strength, lightweight, eco-friendly, affordable door in the world. Any size of window can be cut in the door using a CNC machine. The structure of sing honeycomb can sustain big impacts. Design your own bulletproof door with Sing Core steel panels. These panels are like solid steel blanks but without the weight.
Lightweight and solid fiberglass skins cover both sides of Sing Core doors. It has great weather protection properties and is almost impossible to dent. Use urethane as insulation to reduce energy loss. Windows are easy to create based on your design.
Our Ceramic Skinned Panels are ideal for use as fireproof doors. With the Sing Honeycomb as a substrate it will reduce the impact which is the major cause of cracking on ceramics. See our YouTube channel to see the unbreakable mirror video by Sing Honeycomb. This is the same principle that will keep ceramic panels strong.
The skin selection of Sing door besides our regular wood grain skin, our customers have a choice such as wood veneer , solid wood plank, almost any skin can applied to our Sing core. Choices of skins can make it bullet proof, chemical resistant, highly insulated and/or provide sound deadening qualities.
Sing core is highly impact resistant, extremely dimensionally stable and super lightweight, doors made with our Sing core has a longer life span. If the outer surface is damaged it can be easily patched and repaired due to the structural integrity of the Sing core—the strongest eco friendly core ever invented.
Sing door cores thicknesses start from half inch and go to 6 inches. The size of Sing door can be from as small as kitchen cabinet door to a door as 16 ft tall by 24 ft wide and virtually any size in between or beyond.
There are 4 types of door structures used in a Sing door:
1. Solid door less than 4 ft x 8 ft
2. Barn door which is more than 4 x 8 ft connected together by plywood strips, wood trim or metal braces, which is an easy way to build a super large door, but you will be able to see the joints.
3. Oversize Paint grade door is several Sing core panel joined together using biscuit joints which hides inside the door skin to join several panels together to form a large door. Sing core panel joined together with biscuit joints is still more dimensionally stable than solid door which is extremely critical when building large oversize doors. The surface of a paint grade door has a very tiny seams that will need to be filled and sanded than painted but the seams will never show due to the stability of the entire door is made of Sing core panels.
4. Sing wood grain door are made of Sing core panels as substrate than glue on a thin veneer or heavier wood plank for solid wood effect. Sing wood grain looks more precision than solid wood door but more dimensionally stable and lighter in weight, and with more insulation and better sound deadening ability than solid wood.
Sing Door Panels are easy to order. You may choose from our stock panels or order custom sized panels. Our price is based on the length, width, thickness, and quantity. Submit a Work Order by fax or email, and we will give you a quote within one business day. If you have a tight budget, give us a call, we might have an alternative solution tailored to your needs.
Choose Sing for all your Door Panels! When using Sing Panels, you design your own door by adding the trim, paint, and hardware*. Sing Door Panels are great for millwork shops and door builders. Great pricing is available to distributors and retailers. Doors Pamphlet For Distributors
As long as you cannot see the paper core hide inside the door, they will not change it to Sing core. Sing core does not cost not much more than core made of paper but is at least 49 times stronger.
Punch through a Sing door and you will break your hand. If you can manage to punch through a Sing core punch-proof door and don’t break your hand then you will get a free sing door from us.
The most common doors used in most homes are paper core doors. With one punch you can destroy one of these flims doors. Once the door is broken you will need to take it to a door shop to get if fixed or replaced and then take it back and install it. The cost is not only a door, it is how to dispose of it, take it in and out of the shop, build or replace the door and install it. Why not just buy a Sing door to begin with. Sing doors are not much more expensive than paper core doors when consider the life span and they are free. What is your time worth?
Stronger than Steel,
Lighter than Wood
Your door doesn’t have to be steel to be strong. Sing Honeycomb Doors are stronger, lighter and more stylish than steel and vinyl doors due to the torsion box core.
Sing Doors are more stable, insulated and lightweight than solid wood doors. The torsion box core holds the Sing Door Panel flat so that it willnot warp and sag like ordinary wood. A 16lb steel hammer will easily dent a steel or vinyl door, but not a Sing Door. Because Sing panels are efficient to produce, they are more affordable than solid wood doors.
Patented Sing Door Methods
Sing Honeycomb doors are versatile, and customizable. Even the technoly used to construct the door can cater to our customers’ individual needs.
Products > SING CORE Dunnage and Storage Solutions
The advantages of using SingCore blocks as dunnage and Sing panels for veneer and plywood holding trays:
The super-wide and lightweight super-strong and high compression strength SingCore blocks evenly distribute the weight and allow easy access for forklifts. This minimizes the opportunity for damaging high quality, expensive veneer, plywood, and other sheet goods.
Sing panels come 4 ft x 8 ft x 2.75 inches thick and will work with Sing dunnage to enhance product quality and make your factory happier.
You may purchase Sing panels to cut into the desired width of strips to use as Sing dunnage.
To order Sing panel products, fill out the order form, here.
The easiest method to build an insulated small house is by using patented Sing honeycomb panels!
Earth friendly living is the spirit of Tiny House dwelling. What better way to build Tiny Houses than with Sing Honeycomb Panels?
Sing Tiny House Sandwich Core Panels are great for wood sheds, living spaces, living off code, guest houses, ticket booths, pump houses, studios, disaster relief structures, utility sheds, playhouses, espresso stands and any other small building needs. They travel safely, construct quickly, and look beautiful.
Recycled foam core
Formaldehyde free glue
Minimal carbon footprint
Insulation saves energy
Manufactured efficiently with minimal emissions
All in One
Our prefabricated panels and logs include insulation, framing and interior and exterior siding. Our thin sandwich panel walls give you more space inside your home. We replace the need for sheet rock, which weighs a ton. Sing helps you build your house simply and quickly, so you can start living.
2” thick panels
Simple and Quick
Sing Logs and Sandwich Panels are user friendly. They weigh less than a third as much as an equivalent slab of sheet rock, so you can easily and safely construction your home.
Strong and Stable
Sing Tiny Houses are structurally superior to traditional 2” x 6” framed structures because the glue we use for the sandwich panels covers the entire surface area and creates a stronger bond than nails ever could. This will save thousands of nails and over time will ensure the structural integrity of your Tiny House. Sing Honeycomb Panels have precision to within .007 of an inch. This means your Tiny House will be structurally sound and perfectly smooth. After years of expansion and contraction, nails settle, cracking your timber. The structural glue used with Sing Panels will not settle and cause warping over years. Help us to preserve the environment by using high quality, long lasting Sing Panels.
Compression strength up to 660psi
Resists dents and dings
Rigid and straight
Sing Square Log Homes makes large sandwich panels (4’x8′ and 4’x10′), so your house will have fewer seams. The core is covered by any of a wide variety of skins from natural wood to metal, customized to suit your display style. From rustic to modern, Sing panels are made for your Tiny House!
Yes, Sing Core does make the best reinforced structural insulated panels (RSIP) for use in Tiny House applications as walls, floors, ceilings and roofs. We have a huge desire to support the tiny house industry but be aware that we only offer Sing Panels for tiny house construction to professional distribution channels. Since we offer no support for our products (besides what is readily available via our web site). Our operation is not setup to sell our products to people in need of retail customer service. We suggest that you seek answers to any questions about how to use Sing panels by consulting with your engineer, architect, builder or contractor.
Note: We do occasionally offer products direct to the do it yourselfer, like Tiny House panel Kits or Tiny House Surplus Panels. Though we may provide you with the materials, we offer no how-to support to the DIY enthusiast except that which is available via our Tiny House FAQ (frequently asked questions) and other online resources.
For our customers who desire a more traditional look to their hardwood/laminate flooringis our plank flooring. Our wood veneer features the best and most beautiful wood grainsand our planking system slips together flawlessly for a fit to rival any type of hardwood flooringsystem out there. You can see that our flooring is more than just wood, it’s wood and insulation combinedto become one and then to become one with your home. Strong, lightweight, insulation and sound deadening qualities especially useful for homes with more than 1 story to reduce the sound of walking upstairs.
Sing Honeycomb Insulated, Engineered Flooring is the newest concept in flooring, by using our patented Sing Honeycomb product, we have made a flooring system that has insulation and flooring combined in one package. Besides being incredibly strong, our flooring is lighter than hardwood flooring and other types of flooring such as oak and maple flooring you normally find at lumber stores, and better than the laminate flooring you find at those big box stores that sell you everything from a screw-driver to 5 gallons of paint. Keep in mind our patented torsion box flooring is completely made by hand.
Your Sing Honeycomb Insulated flooring can come with just about any kind of wood species you desire, you can choose the lengths of flooring you want from 8 to 10 feet long, and you can choose our 9″ wide plank or get the job done faster with our solid panel flooring in 4′ x 8′
(finished sizes are 47″ x 95″) sheets.
Pictured above and below: Sing Honeycomb Flooring panels for a NASA clean room.

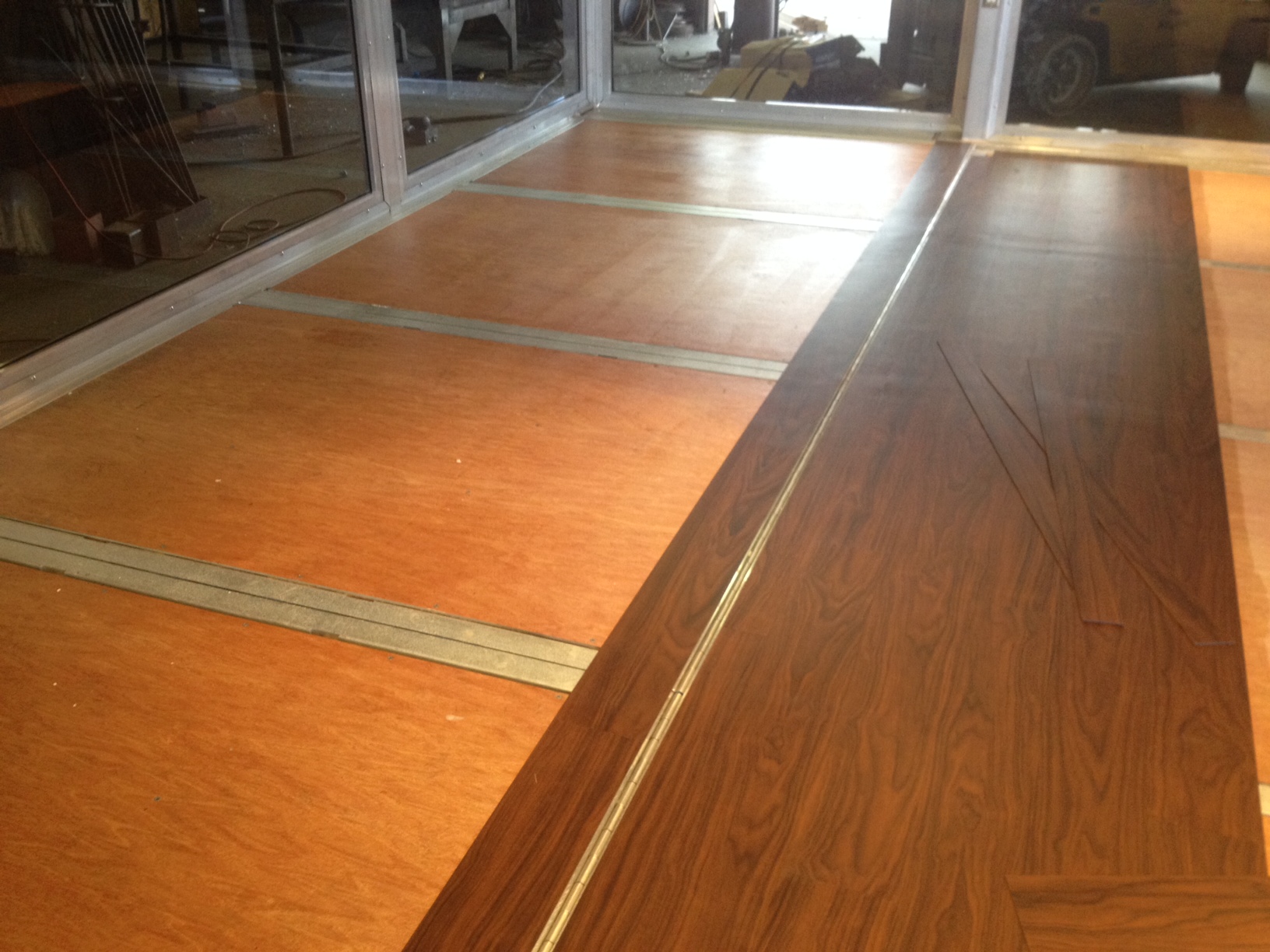

Here photos of our solid panel flooring being installed. Installation is quick and our flooringcan be cut in straight lines or angle cuts, it doesn’t matter and will still look beautiful. Our flooringis also given 5 coats of polyurethane to maintain the wood color and protect it.
Our Sing Honeycomb Insulated flooring is available in assortedtypes of wood, colors, plank widths and lengths or in our convenient 4′ x 8′ panel flooring(finished size = 47″ x 95″)
Patented Sing Core: We put a torsion box in the SIP panel to make it better. The other names for our panels include sandwich panel, honeycomb panel and lightweight panel.
To order Sing panel products, fill out the order form, here.
Sing Ceiling Core
Sing Core is a veneer torsion box embedded in EPS foam. You can finish Sing Core with any load bearing facial material. In our core, we use the strongest material in the strongest form: vertical grain veneer! Our grid is stronger than other honeycomb sandwich cores because the veneer is arranged with the grain perpendicular to the skin.
Sing Ceiling Panel
Sing Panels come complete with solid wood edging sandwiched in between the skins. Sing Panels and Beams are ready to distribute to consumers and businesses. Sing Panels are ready to be stained or painted depending on order type. Just assemble, prepare, paint and enjoy.
Ceiling Cloud Panels
Patented Sing Panels make the best cloud ceiling panels for that upscale appearance while featuring the specific attributes that makes Sing Core the stand out solution when designing your suspended ceiling cloud.
If you want your ceiling cloud systems to be lightweight, stronger than steel, with little or no deflection and enhancing your ceiling clouds acoustic properties due to sound deadening insulation, only Sing Core has the answer.
Panel Technical Properties
Weight: Honeycomb Core sandwich construction is used mostly in aviation. Our core can make panels weigh as little as 30% as much as solid wood panels. Go to our Price and Order page to use our panel weight estimation calculator.
Insulation value: The R-Value of Sing Honeycomb Core is 3.5-6.5, whereas that of solid wood ranges from .71-1.4.
Strength: Vertical grain veneer enables a 2”x4’x8’ Sing panel to withstand up to 600 lbs.
Precision: Torsion Box structure is no longer a dream for the highly trained craftsman. Our endless I beam construction keeps the surface of our panels flatter than solid wood (within .007in!).
Fire Resistance: Level 2
Sing Honeycomb Panels acclimatizing; according to the type of the skin. Aluminum, metal, plastic skin, concrete, and ceramic skin will be delivered in perfectly straight condition without any acclimatizing, plywood, hardboard, and hpl because it will take much less time to acclimatize than mdf. The best way to acclimatize is stand panels on edge with 4” or more of equal spacing between each panel.
