Museum and Trade Show Wall Connection

Sing Core is your Museum and Trade Show Display go to resource. We specialize in providing you with the highest performance materials and components to build the best displays in the world that are lightweight, come in a variety of thicknesses are true flat, high strength walls (from 1/2  inch to 8 inch thick) and can be reconfigured and assemble repurposed quickly and easily.

Nearly Seamless Connection Method

In an effort to remain flexible with all designers and end-users, we have experience with mating our patented Sing Core panels to any connection system with simple cam locks or hidden nuts and bolts to meet your specifications.

Customers sometimes seek us out to retrofit our Sing Panels to existing systems as they replace their old panels with new ones. Whatever your circumstance, we can help you upgrade to high-performance long lasting Sing Panels trying  to match the same life span as your museum display object is our common goal (our dream is building Sing museum panels as museum collections – we offer 100 years structure warranty for museum trade).

Click for More on Connection Methods

Since standard Sing museum and trade show panels feature built-in wood frames and have many skin options such as  wood, metal, HPL, FRP, magnesium board (for sound deadening), as exterior treatment, simple carpentry skills and wood working tools are all that is needed to modify or beautify your panels on site completing your work of art. You will not confused by European imported museum panels that come with dozens of metal parts and heavy aluminum frames to reinforce the panel’s strength. Alternatively Sing Museum Walls, shelves and displays embrace good, old-fashioned American wood craftmanship. European import paper core and particle board lack the strength compared to patented Sing Core and solid skins provided by Sing Museum wall panels.

It’s amazing what an impact some wood trim/molding can add to the appearance of your project. We can provide finishing at extra charge, or you can do it yourself in house.

Even though Sing Panels can be joined in any configuration or designed to your specifications we have a system available for our standard 2.25″ panels that include a connector stile with cam-lock receptacles to match your Sing Panels and we can accommodate any angle to meet your requirements.

Trade Show Panels Q & A

Thru-bolt Joining

One of the most inexpensive and secure ways to join sing panels is by utilizing a simple nut and bolt connection method, especially, if the panels will be routinely or repeatedly assembled and disassembled.

Stainless steel nuts and bolts offer the safety and security when joining sing panels.

Joining your Sing Panels for museum or trade show applications:

Proper corners connections keep your Museum or Trade Show Panels straight and true, and can be adjusted to meet your specifications:

Adjustable feet may be the key to leveling your trade show panels to any environment while maintaining straightness and professional image

See also: Cam Lock Panels with Cam Locks by Norse

singcoreadmin No Comments

Advanced Composites

Sing-composite-panel-core-torsion-box-foam-hybrid-lightweight-high-strengthSing Core technology is manifested in so many ways we’ve tried to narrow down the basics to make the possibilities easy to comprehend.

What are Sing Composites?
Sing Composites are the combining of different abundant raw materials for the greater good. Sing Composites are:

  • Stronger
  • Lightweight
  • Eco-friendly

While reducing:

  • Waste
  • Energy
  • Production costs
  • Labor costs
  • Shipping costs

To understand Sing Core technology, you must understand that in all Sing Core products the Sing Core is the actual core of the product that produces the vast number of characteristics that make up the Sing Core line.

Sing Core with two exterior skins is a Sing Sandwich Panel, adding solid edges makes a Sing Panel. Basically, all the products listed below are Sing Panels, separated into shape, size and dimensional categories and primarily feature wood exteriors, but could be available in nearly any exterior material. We do all this, and make it affordable to have the greatest impact on the world.

All Sing Core products share the same exceptional characteristics.

Best Seller, the most versatile: 2×12

There are three basic formats for demonstrating the attributes of the Sing Core material, they are:

1. Sing Plywood

Sing-composite-engineered-plywood-panels-lightweight-high-strengthSing Plywood enables you to use a lightweight, strong, wooden torsion-box panel empowering you to create anything from basic furniture, large sliding doors or to create affordable housing with unparalleled longevity.

  • available in large almost seamless oversized panels
  • as large as 12 ft wide x 48 ft in length
  • as thin as 1/2 inch
  • Can be as much as 6 inches thick

Oversize Sing Plywood will have the tightest seam that will not shift due to patented technology, making it guaranteed to maintain structural integrity and seal, unlike solid wood.

With an appearance identical to traditional plywood, the physical characteristics are nothing short of shocking in comparison, as Patented Sing Plywood

2. Sing Planks

Eco-friendly-sing-composite-wood-planks-high-strength-lightweight-structural-insulatedSing Core Wood Planks are elongated and rectangular solid wood on six sides, a lightweight super-strong eco-friendly alternative to solid wood material used in carpentry and the construction of ships, houses, bridges and other structures.

In stock standard sizes of Sing Planks:

  • 2×8
  • 2×10
  • 2×12

Sing wood planks are available in any width from eight to twelve inches, any thickness from 1/8 inch to six inches and any length up to 50 feet long.

A variety of options are available for your Sing Wood Planks and wood door blanks

3. Sing Post and Beam

Sing-composite-post-and-beam-structural-insulated-lightweight-high-strengthSing Posts and Beams are more dimensionally stable and structurally sound than any other building material; maintaining unparalleled strength over long spans, while remaining lightweight. Sing Posts and beams are super strong and resistant to rot, weather and temperature variations, warp and twist.

In stock standard sizes of Sing Posts and Beams:

  • 4×4
  • 4 x 6
  • 5 x 8
  • 6 x 8
  • 8 x 8
  • 8 x 10
  • 8 x 12

Sing Posts and Beams are available in any width from four to twelve inches, any thickness from 4 inches to forty-eight inches and any length up to 50 feet long.

Sing Laminate Beams replace oversize traditional laminate beams sporting superior strength and lightweight, while retaining all the natural wood beauty. For more information, see Sing Post and Beam






Sing Core Menu

SKIN Thickness PANEL PLANK POST & BEAM CUSTOM
Plywood 1/8″ – 1 1/8″ 4 x 8 – 4 x 16 2″ x 6″ – 2″ x 24″ 4″ x 4″ – 12″ x 12″ Almost any size…
Wood Stave 1/8″ 4 x 8 – 4 x 16 2″ x 6″ – 2″ x 24″ 4″ x 4″ – 12″ x 12″ Almost any size…
Wood Plank 1/4″ – 2″ 4 x 8 – 4 x 16 2″ x 6″ – 2″ x 24″ 4″ x 4″ – 12″ x 12″ Almost any size…
Aluminum .020 – .090 4 x 8 – 4 x 16 2″ x 6″ – 2″ x 24″ 4″ x 4″ – 12″ x 12″ Almost any size…
Metal varies 4 x 8 – 4 x 16 2″ x 6″ – 2″ x 24″ 4″ x 4″ – 12″ x 12″ Almost any size…
Fiberglass varies 4 x 8 – 4 x 16 2″ x 6″ – 2″ x 24″ 4″ x 4″ – 12″ x 12″ Almost any size…
HPL .020 – .040 4 x 8 – 4 x 16 2″ x 6″ – 2″ x 24″ 4″ x 4″ – 12″ x 12″ Almost any size…
Cement Bd 1/8 – 1/4 4 x 8 – 4 x 16 2″ x 6″ – 2″ x 24″ 4″ x 4″ – 12″ x 12″ Almost any size…



The surface material that is featured on Sing Core material greatly enhances the characteristics of the end product and endows it with unique properties for a variety of products and applications. Examples include:

1. Plywood

Sing-composite-plywood-lightweight-high-strength-to-your-specifications-engineered-woodWhen Sing Core is sandwiched between two exterior skins of plywood, the result is a building material that is unmatched in the world of standard building materials due to the increased strength and lightweight properties of the end product, as well as resistance to warp and twist.

Standard plywood exterior surfaces are available in

  • 1/8”
  • 1/4″
  • 3/8”
  • 1/2”

You may specify the individual characteristics of the plywood used to your specifications. For more information, see: Sing Plywood

2. Wood Stave

Sing-composite-flooring-panels-lightweight-high-strength-engineered-woodWoodstaves (a narrow length of wood “stave” with a slightly beveled edge) can be utilized to form the exterior of Sing Core. These can be used to replace other types of solid wood building materials.

Standard wood stave exterior measures:

  • 1/8”

Other thicknesses of wood stave may be available upon request, in nearly any wood species.

For more information on Sing Core’s wood staves, see Wood Staves

3. Wood Plank

Sing-composite-natural-wood-plank-lightweight-eco-friendly-high-strengthSandwiching Sing Core between two wood planks results in an incredibly strong structural-strength building material, that will remain straight and true, lasting the test of time.

Standard wood plank thicknesses include:

  • 1/4″
  • 1/2”
  • 3/4″
  • 1”
  • 1 1/2″
  • 2”

Other thicknesses are available upon request per your specifications. Fore more information, see Sing Wood Planks

4. Aluminum

Sing-composite-lightweight-aluminum-panels-high-strength-eco-friendlyOne of our most popular Sing Core surface material is aluminum due to its unique properties, especially when maintaining true flatness over a long spans.

Standard aluminum facing material sizes are:

  • .020
  • .032
  • .063
  • .090

For more information on Sing aluminum materials see Sing Aluminum

5. Metal

Sing-composite-lightweight-metal-panels-aluminum-stainless-steel-galvanized-high-strengthExpanding on the widespread potentials of Sing Core, metal is used in order to imbue it with essential attributes for specific design integration, solving the problems of lightweight without compromising strength (as Sing Core bonded with metal is actual stronger than solid metal).

Standard metal panels are lighter and stronger than steel and available in the following metals:

  • Aluminum
  • Tin
  • Colled-rolled steel
  • Galvonized
  • Stainless steel
  • Stainless diamondplate

That is just a sample of the many varieties of metal that can be used to house Sing Core. We can use nearly any metal material to accommodate your needs while resulting in a superior end product.

For More information of Sing Metal, see Metal Index

6. FRP Fiberglass

Fiberglass, FRP and plastic skins are popular exterior surfaces for Sing Core. A variety of options exist, for more information, see Fiberglass Index

7. HPL High Pressure Laminate

High Pressure Laminate (HPL) is resistant to abrasion, high temperatures, shock, flame and can be used in both interior and exterior applications.

Available in standard thicknesses: .020, .040

8. Cement Board

Cement board is a versatile Sing Core exterior due to its unique properties of water resistance, will not mold, mildew or physically break down in the continued presence of moisture or leaks.

Available in standard thickness: 1/8”, 1/4″

… And nearly any other building material known to man…







singcoreadmin No Comments

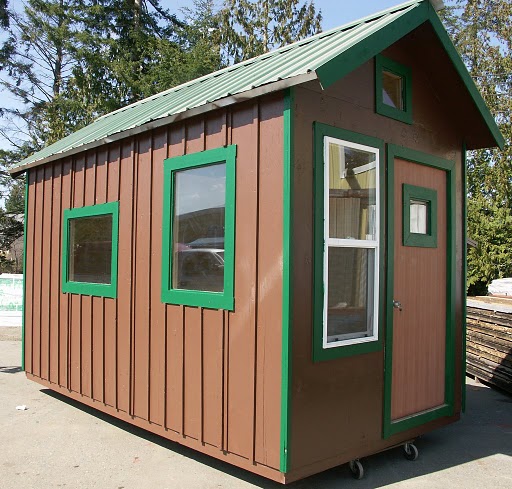

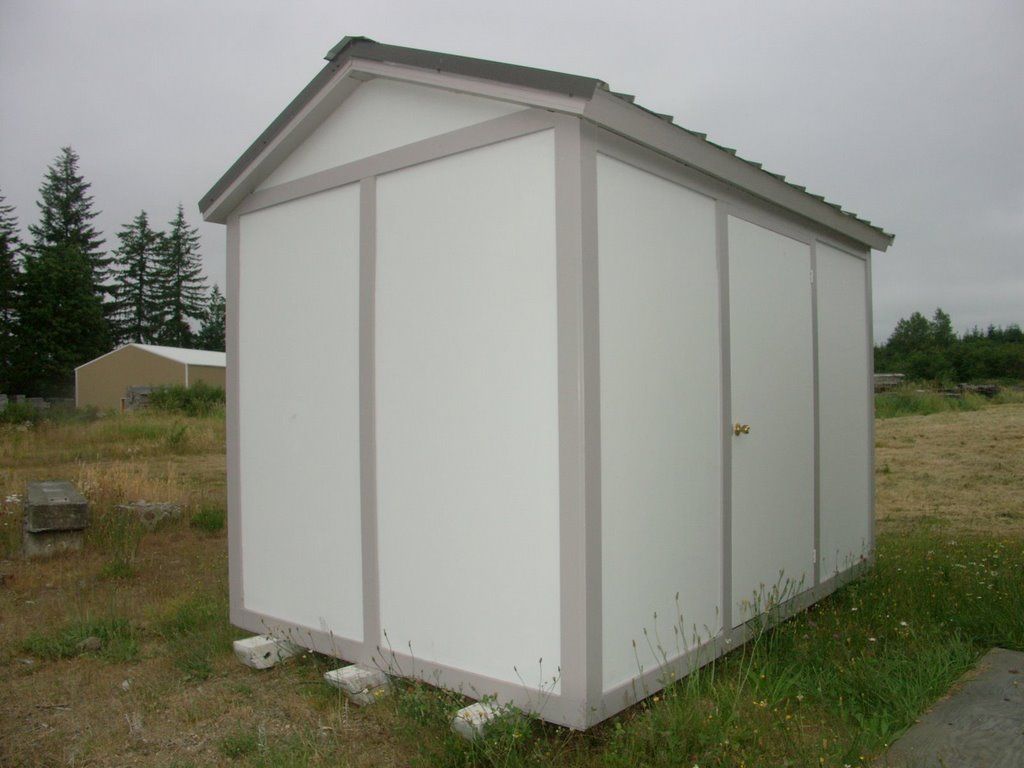

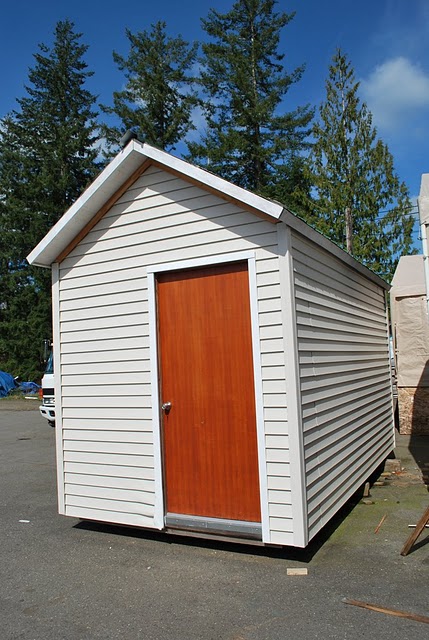

Tiny House Links



Products >Tiny house > Links

Expires August 25th, 2017


Tiny Industrial Links

Tiny House Map- Connect all things Tiny House on a national and local level.

Tumbleweed Tiny House- Learn from those that have lived the life.

Tiny House Journal- Tumbleweed Tiny Houses built by you.

Tiny House Listings- Buy, Sell, Rent Tiny Homes.

Designboom- Small dwellings of every shape and size.

Tiny House Forum- Forum about Tiny Houses.

Tiny House Blog- Blog for Tiny House people.

Tiny House Design- How to build Tiny Houses.

Siding hub- A one stop site for all of your siding needs.



singcoreadmin No Comments

Furninture Index

Products >Furniture

About the Sing Furniture Line



Chic, Strong, Lightweight, Long-Lasting, and Versatile: The Sing Honeycomb Furniture line is chic, strong, lightweight, long lasting, and versatile. Our furniture is made of our patented Sing Honeycomb panels which utilize torsion box technology to ensure strength. Each Sing furniture piece is strong enough to support up to 600 lbs. Sing furniture is also completely DIY. Our products are easy to put together and take down.

torsion box, sandwich panel, honeycomb panel, lightweight panel

Environmentally Friendly and Made in the USA: Sing furniture panels are environmentally friendly. The only materials used to construct our panels are wood veneer combined with recycled EPS foam and non-toxic glues. All of our products are manufactured right here in the USA.



Sing Furniture Strongest Furniture is Sing Honeycomb





Book-Column

How to Buy

Ordering Sing Furniture is easy! To order Sing Furniture submit an Order Form either by email, info@singhome.com, or print and fax it to: 360.495.4585. We’ll provide a quote within one business day.

Above: A beautiful captan’s bed made from SingCore Furniture Panels

Strong drawers complete the funtional beauty of the captain’s bed.

Look! This drawer is easily holding up to 600 pounds!

A modular bookshelf constructed from SingCore Furniture Panels.



Furniture Video

singcoreadmin No Comments

Sing Sandwich Panel

Sandwich Panel

torsion box, sandwich panel, honeycomb panel, lightweight panel

Standard sandwich panels utilize an insulating foam core sandwiched in between two thin sheets of hard material.  However, this design offers very little strength and durability. Sandwich panels made by Sing Core are stronger, lighter, and more eco-friendly than these conventional panels because we replace the standard foam core with our patented vertical grain, natural veneer torsion box grid also known as the Sing Core.  For the consumer, this translates into a higher quality product at a fraction of the cost.

(click to visit our product gallery)

Insulated doors made with traditional sandwich panels are highly susceptible to dents and structural damage because of their weak foam core.  Doors made with our Sing Core sandwich panel technology can withstand much higher impacts resulting in little or no damage due to our unique core properties.  The University of Washington has confirmed that our doors can withstand pressure of up to 660 psi, as compared to the average sandwich panel which can only withstand 60-100 psi.



http://singcore.com/images/GarageEcoStrong.jpghttp://singcore.com/images/GarageEcoStepThumb.jpg





How can Sing Core sandwich panels be used? Doors, shelving, table-tops, flooring, bookcases, furniture, outdoor decking material, truck/trailer beds even water tanks, to name a few. The possibilities are endless.





If you desire products that are lightweight, strong, durable, dimensionally stable, and eco-friendly, then you must try our Sing Core Sandwich Panels.  We like to demonstrate our confidence in the integrity of our products by offering our customers a 10 year structural guarantee.

(click to visit our product gallery)

Since our company’s inception, our products have made in the U.S.A..

Please share this message with your friends and business associates.



Or fill out our Work Order Form to get a free quote.



singcoreadmin No Comments

Connect Index

Applications -> Building Components -> Assembly & Connecting

Connecting Panels

How to Build Gallery

Connection Page



There are many ways to join Sing Panels

Simple Joining

The simplest and least expensive way to join sing panels is to join in any way according to your budget and/or expertise.

Due to Sing Panels being so straight and true it is easier to join panels together because they line up perfectly unlike other building materials.



sing-core-panel-cam-locks-3sing-core-panel-cam-locks-2In many cases, for instance, standard 4×8 panels can be nailed, glued or channel-joined quickly and easily with satisfactory results.

Other options for fastening panels may include cam locks (see examples left and right) that can be pre-installed, making assembly and joining easy and more secure.


The Sing cam-lock panel solution is a high-demand solution for panels that are routinely assembled and disassembled, especially in moveable walls, trade show booths, and various wall cladding applications. See: Cam Lock Panels

Connect multiple panels together in any configuration

Add lightweight high strength Sing modular shelves

Thru-bolt Joining

One of the most inexpensive and secure ways to join sing panels is by utilizing a simple nut and bolt connection method, especially, if the panels will be routinely or repeatedly assembled and disassembled.

Stainless steel nuts and bolts offer the safety and security when joining sing panels.



Biscuit Joining

In many cases, Sing Panels can be pre-configured for biscuit joining at your site of factory.

Especially for large projects, this enables Sing Core panels to be sent individually, reducing shipping and handling costs, for assembly at your facility or job site.

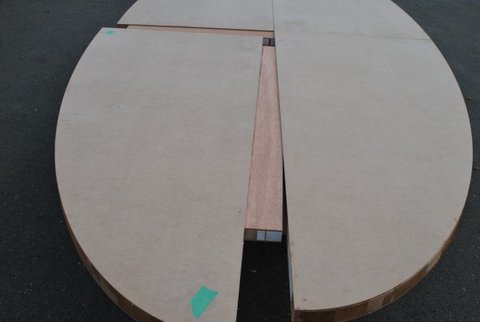

See images below for example of biscuit assembly of Sing Panels

Joining-2-or-more-aluminum-panels-for-large-oversize-panels-do-it-yourself-diy-2-pieces

Spline Joint Connection Method


additional images


Sing Core Dowel Joint

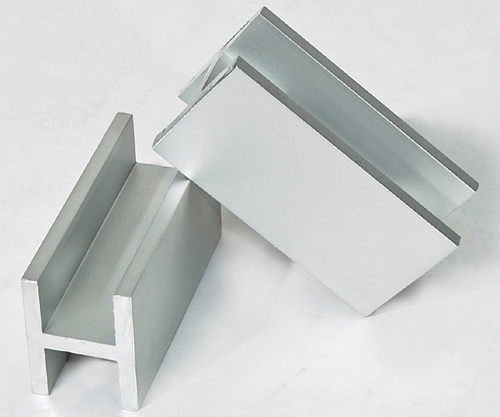

Joining With H Channel and H Molding

Embedded T-Slot Extruded Aluminum

In your choice of T1 (1 exposed slot) or T3 (3 exposed slots)

See: Sing T Slot Panels for more information.

Edge Banding

Unless specified Sing Panels do not ship edge-banded as 93% of our wholesale customers do their own edge-banding when finishing their Sing Panel.

Edge banding can take many forms from vinyl and plastic to wood and steel. Sing Panels are not intended for use as an un-banded product and may not qualify for our 50 year warranty if un-banded.

If your intention is to get the best, most long-lasting performance from your Sing Panels, feel free to take advantage of our free consultation to be guaranteed to achieve the results that you desire.

Edge Banding Options Include:

T Molding

Metal T molding closeup on sliding door lightweight high strength steelMetal T molding on large lightweight high strength non warping steel doorHere is an example of a large lightweight high-strength non-warping sliding door.

Note the steel T molding being installed to complete the door’s composition.

This door is guaranteed not to warp, bend, twist or otherwise fail due to being properly engineered and manufactured to exceed the specifications of this oversized architectural door.

T Molding

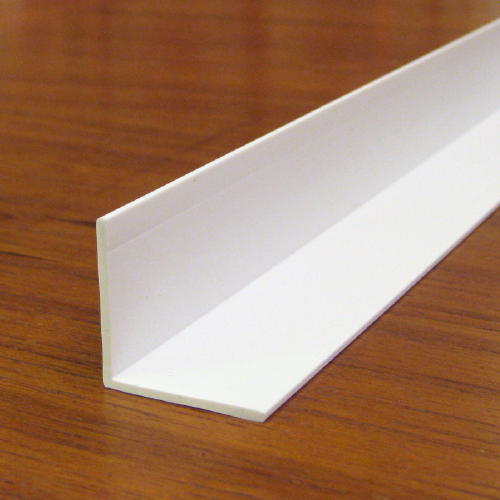

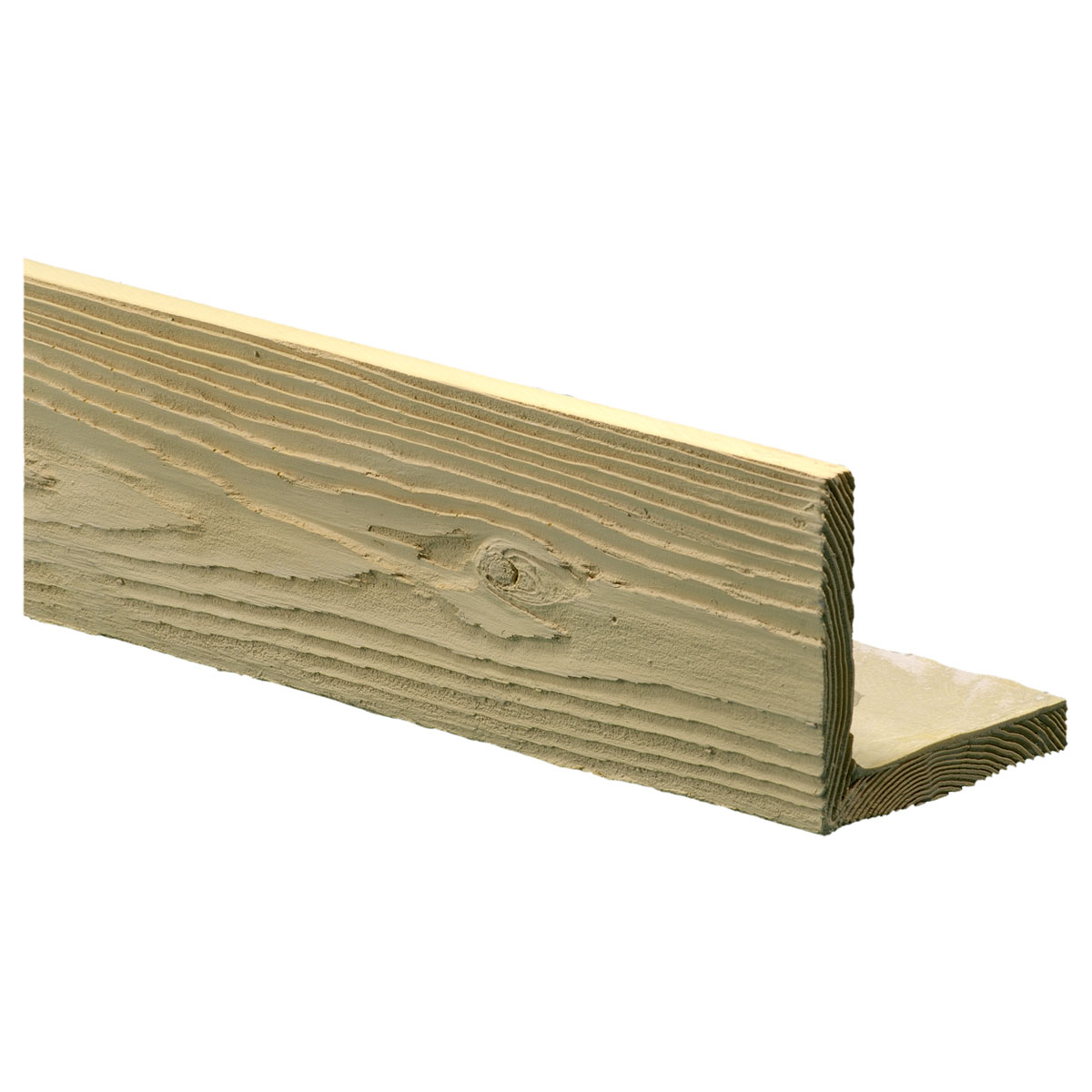

L Molding

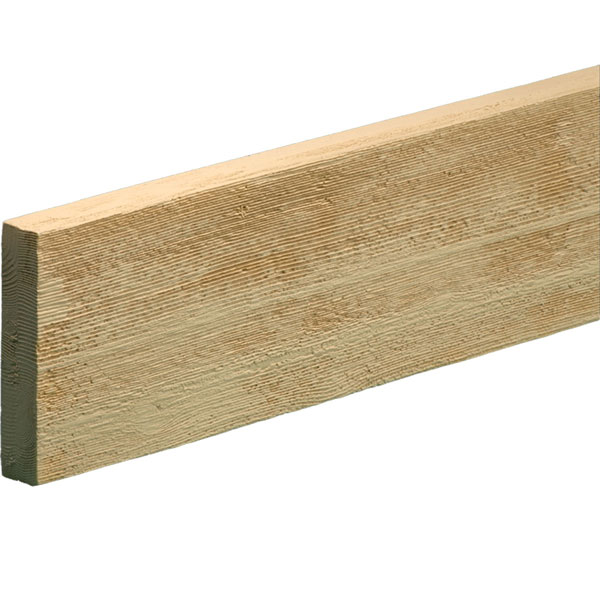

Flat Molding

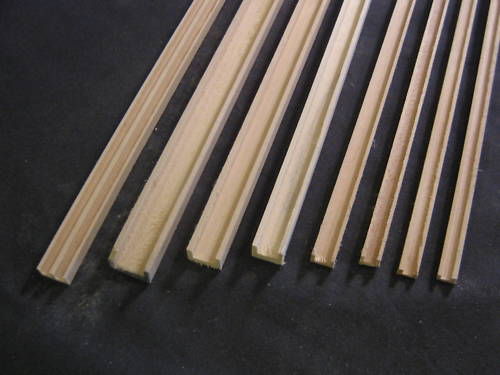

U Channel

modern-door-hardware

Photo courtesy of Vancouver Doors



Advanced Large Panels

Sing Core specializes in extremely large panels (up to 50 feet) that are extremely true flat and use our nearly seamless assembly process.

This is the most high-end and expensive process where we perform the highly specialized meticulous work in our factory yielding the high level of perfection that many of our most discerning clients require. See: our clients.

These must be manufactured in our plant to ensure accuracy with tolerances within thousandths of an inch and are more costly to ship due to the nature of their being larger than multiple panels that can be assembled on-site.

Connectors for Connecting

Cam-Locks

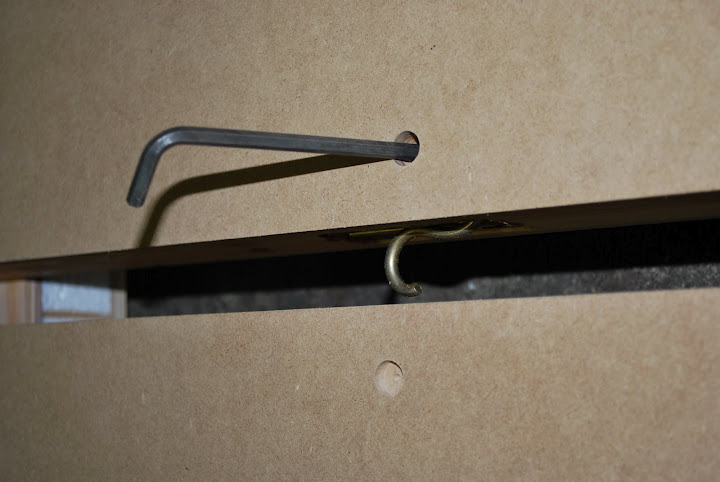

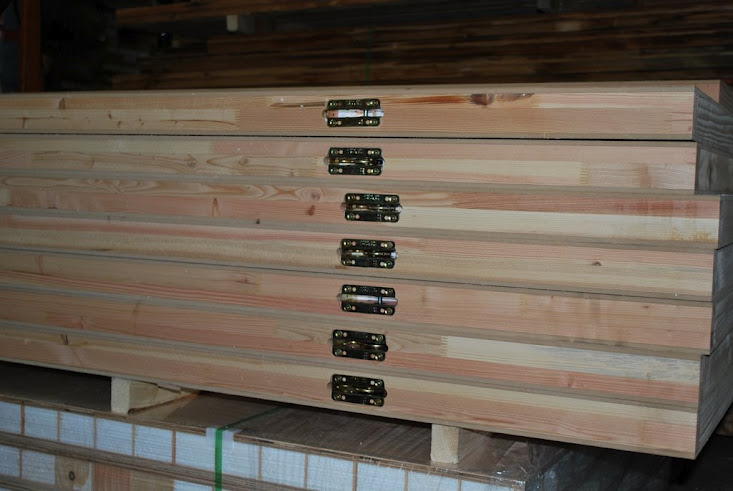

One of our many features is the ability to add fasteners/locks to our panels…one example of this is the “S-Hook Lock” with a turn of the hex wrench you can fasten or unfasten your panels quickly.

The “S-Hook” fastening lock that is attached to the side of these panels to allow for easy assembly of the wall system.

With a quick turn of your wrist on the hex key your panels will be attached to each other.





Barn Door Assembly or ‘H’ Channel

If you are planning to keep your panels as a permanent structure you may choose the H-Channel attachment feature. Apply your adhesive the slide panel into the channel on each side then either veneer over the panel and channel or you may choose to putty, sand and paint your panels to cover over the H-channel.

Tongue and Groove

Tongue and groove is another fastening choice especially if you using our panels for flooring or ceiling. Make a nice almost seamless connection but give wood veneer a hardwood flooring appearance.

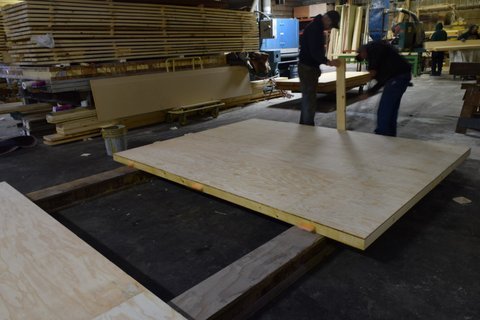

Biscuit Joint

This is a modified biscuit joint attachment. Similar to the H-joint the you are using a single long “beam” as the connector and gluing them together. Best use is for oversize tables (such as vacuum tables) and oversize doors as well. Because our panels are made of honeycomb rather than solid wood, they will not warp. Our honeycomb is light and strong.

Ship Lap

The ever popular ship lap as a connector alternative.

With the wide variety of applications for Sing Core panels, posts and beams, and equally diverse selection of fasteners are used in practical installations.sing-core-panel-cam-locks-2Here are some of the most popular fastening systems used today:Norse Inc. LatchesNorse latches are designed for concealed installation in Sing Panels. Multiple configurations of latches and receivers are possible to suit many applications, and offer numerous advantages.Click Here for More InformationKnape & Vogt Manufacturing Company

Sing-Panel-FastenersMore than a century of experience to the design, manufacturing and distribution of functional hardware, storage-related components, and ergonomic products for original equipment manufacturers of the Tite Joint Fastener Draw Bolt.

Click Here for More Information

Pan American Screw

An International leader of innovative threaded fastening solutions. Developers of the Draw Bolts and Zipbolt™ tight joint fasteners. They are constantly testing and developing fasteners that are easier, faster and less costly to use.

Click Here for More Information

FastCap

Sing-Panel-Fastener-FlipBolt-Dog-BoneOver the past five years, FastCap has grown exponentially and has expanded its products base from the Fastcap to a vast array of woodworking products and tools, like the FlipBolt Tite-Joint Dog Bone Fastener Tool-less Draw Bolt.

Click Here for More Information

ITW Fastex

The range of panel fasteners and plastic clips available from ITW Fastex is designed to fill most fastening requirements. The range of applications is wide from machines, appliances, and computers to recreational vehicles and point of purchase displays.

Click Here for More Information

shur-lok-btn-mf2Shur-Lok

Shur-Lok fasteners and components are designed to satisfy customer requirements in two general application ideas: secondary structures, such as interior stow bins, lavatories and galleys, and primary structures, such as aircraft engines, engine pylons, landing gears, wings, gearboxes, transmissions and helicopter rotors–all critical applications.

Click Here for More Information

Veck Fasteners

Special and bespoke bonding fasteners. In addition to Veck Fasteners standard range of popular bonding fasteners, we provide purpose-designed special and bespoke bonding fasteners for customers who have specific requirements which cannot be fulfilled from our standard range.

Click Here for More Information

Just to name a few…

Fasteners and Anchors for Sandwich panels

fasteners



CEL FASTENERS are innovative tools to anchor and attach and remove sandwich panels easily and quickly.

The advantages of CEL’s fasteners are:

  • Possibility to attach and detach the panels quickly to carry out maintenance work or substitution
  • Invisible bolts
  • Precise positioning and multiple removals
  • Quick assembly
  • Cost reduction

Initially developed in compliance with to the needs of shipyards, this anchoring system is more and more used in different sectors:

  • Shops’, hotels’ and trade fairs’ assembly
  • Lifts
  • Transport: buses, trains, vans, etc.
  • Carpentry
  • Furnishing

potted inserts rivnuts helicoil inserts blind inserts with tabs spool inserts for sing honeycomb panelsImplants

Solid wood implants can be placed anywhere inside your custom Sing Panels for attaching hardware or other anchoring, including lock blocks and the like.

Individual connection inserts can be specified at specific locations to meet all your connection method needs. These can include, potted inserts, Rivnuts, Helicoil inserts, blind inserts with tabs and spool inserts, just to name a few.

Liability disclaimer

The above data are to the best of our knowledge correct and are intended to give information about our products and their potential applications. No warranty is given or implied in respect of certain properties of the products or their suitability for a particular application. We reserve the right for technical changes without further notice. We guarantee impeccable product quality under our terms of sale.



Examples of Joining Sing Panels

singcoreadmin No Comments

Torsion Box

Torsion Box



Sing Core Torsion Box Panels

Patented Sing Core: We put a torsion box in the SIP panel to make it better. The other names for our panels include sandwich panel, honeycomb panel and lightweight panel.



Sing Punch-Proof Doors

SINGCORE-The torsion box core makes it impossible to punch through and destroy.



torsion box, sandwich panel, honeycomb panel, lightweight panel
Punch proof Sing Core door.
Typical paper core door. (click to see more)



What door companies do not want you to know.

torsion box animationAs long as you cannot see the paper core hide inside the door, they will not change it to Sing core. Sing core does not cost not much more than core made of paper but is at least 49 times stronger.

Punch through a Sing door and you will break your hand. If you can manage to punch through a Sing core punch-proof door and don’t break your hand then you will get a free sing door from us.

The most common doors used in most homes are paper core doors. With one punch you can destroy one of these flims doors. Once the door is broken you will need to take it to a door shop to get if fixed or replaced and then take it back and install it. The cost is not only a door, it is how to dispose of it, take it in and out of the shop, build or replace the door and install it. Why not just buy a Sing door to begin with. Sing doors are not much more expensive than paper core doors when consider the life span and they are free. What is your time worth?

Stronger than Steel,

Lighter than Wood

Your door doesn’t have to be steel to be strong. Sing Honeycomb Doors are stronger, lighter and more stylish than steel and vinyl doors due to the torsion box core.

Sing Doors are more stable, insulated and lightweight than solid wood doors. The torsion box core holds the Sing Door Panel flat so that it willnot warp and sag like ordinary wood. A 16lb steel hammer will easily dent a steel or vinyl door, but not a Sing Door. Because Sing panels are efficient to produce, they are more affordable than solid wood doors.

Patented Sing Door Methods

Sing Honeycomb doors are versatile, and customizable. Even the technoly used to construct the door can cater to our customers’ individual needs.

To see more torsion box pictures and web sites visit the Google image galery.

singcoreadmin No Comments

Tiny Index

Expires August 25th, 2017


Products > Tiny House

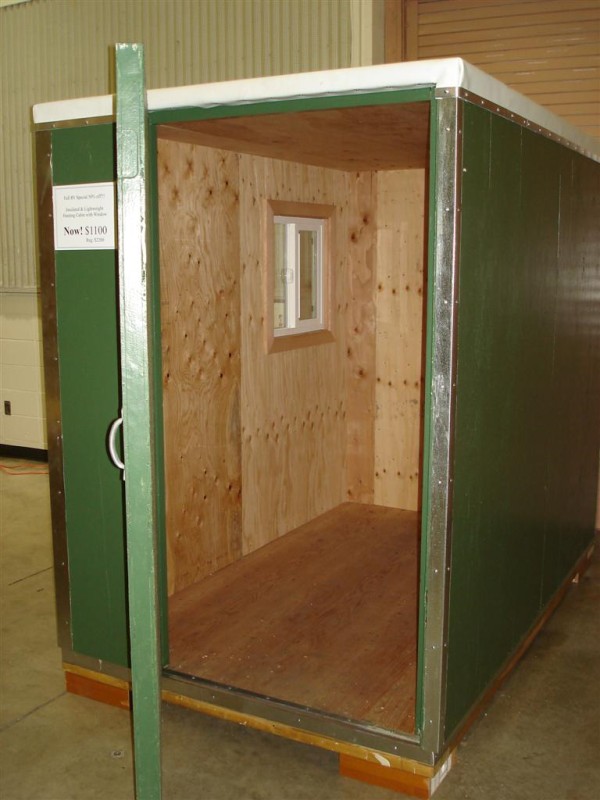

Tiny House Panels

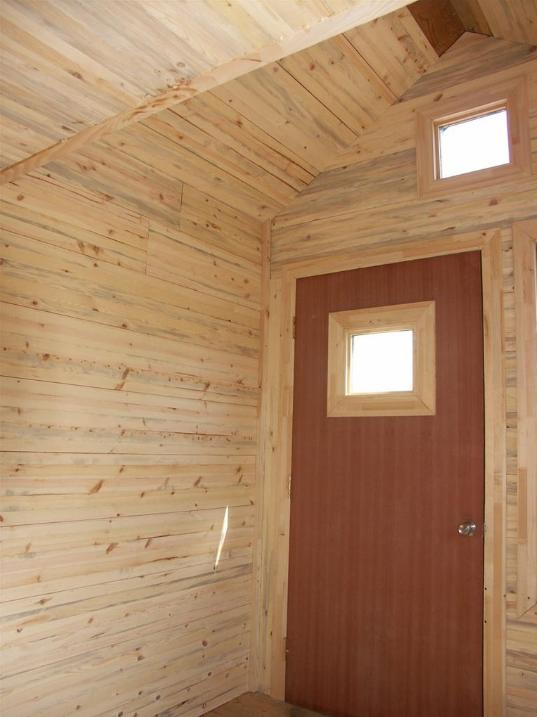

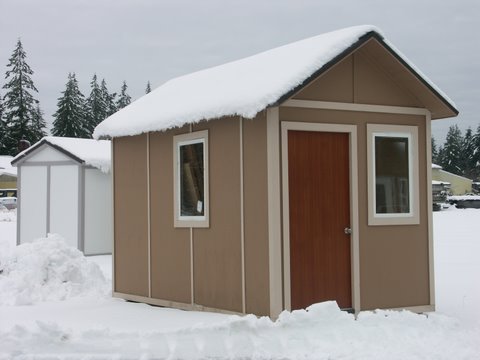

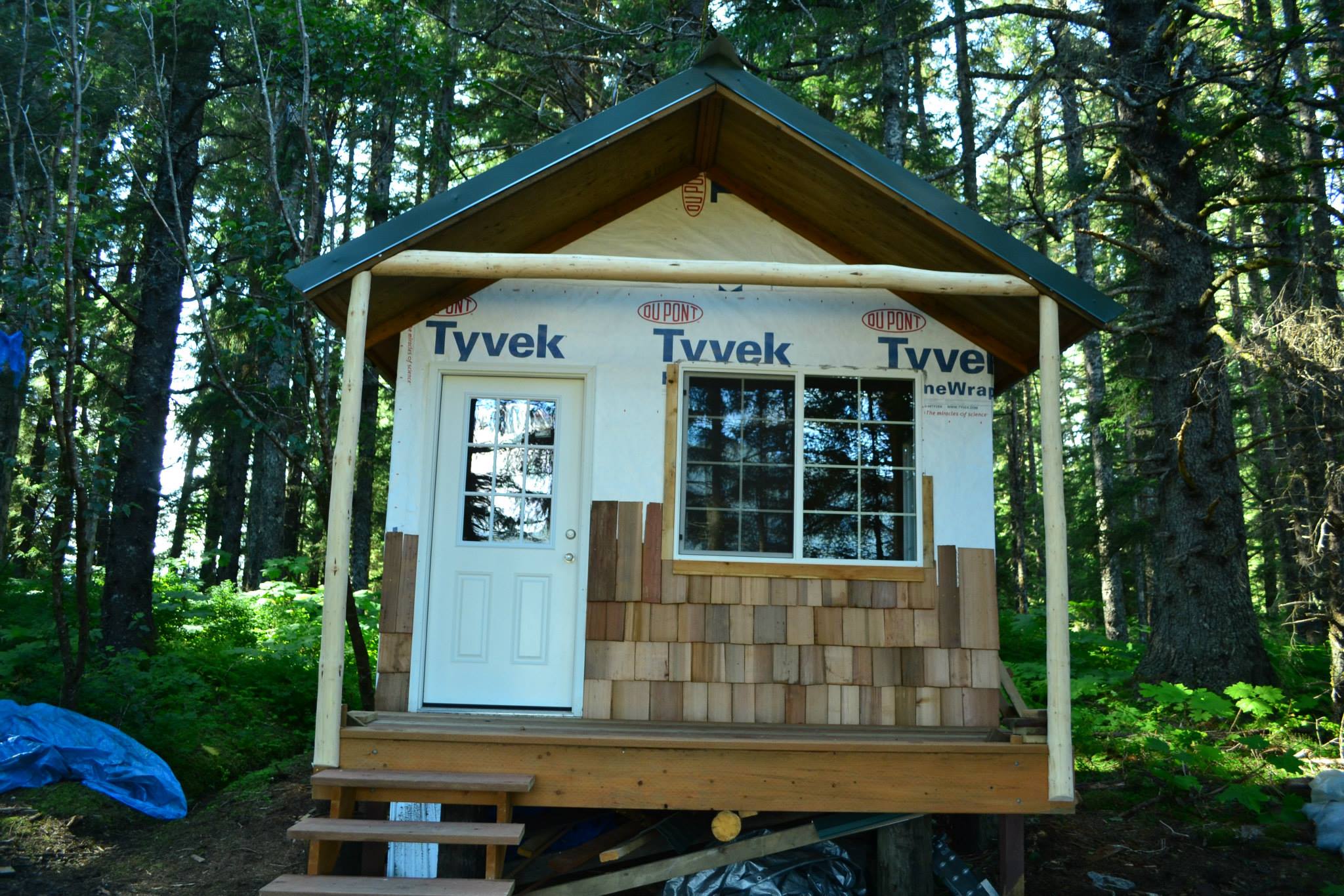

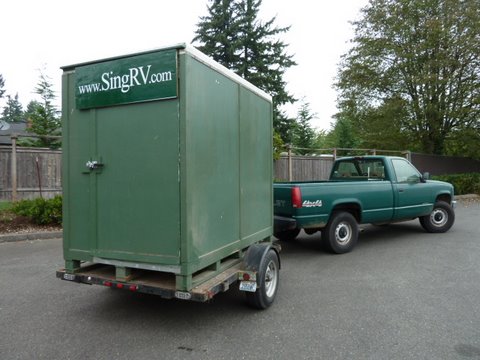

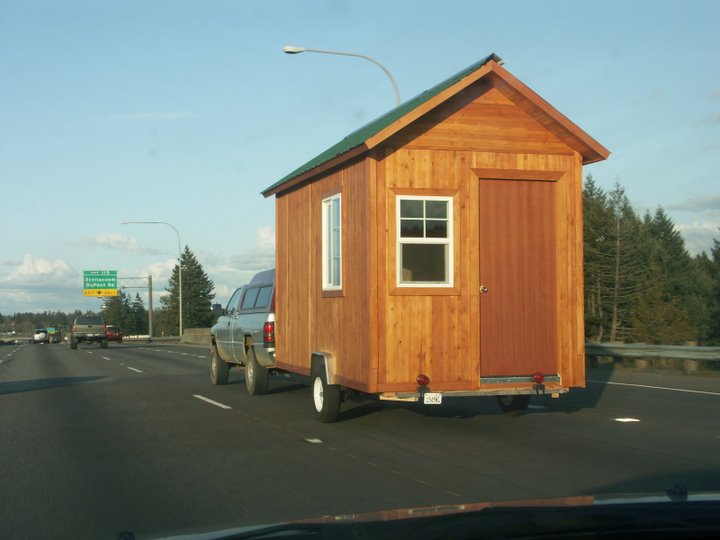

Tiny House Mobile Small Home on Wheels







Photo Gallery   &   See our Folding Modular House Competition



Getting Started

Stronger than Steel, Lighter than Wood

The easiest method to build an insulated small house is by using patented Sing honeycomb panels!

Earth friendly living is the spirit of Tiny House dwelling. What better way to build Tiny Houses than with Sing Honeycomb Panels?

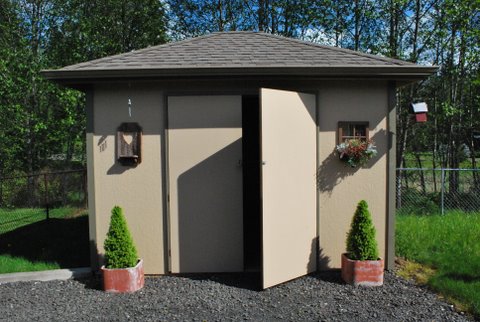

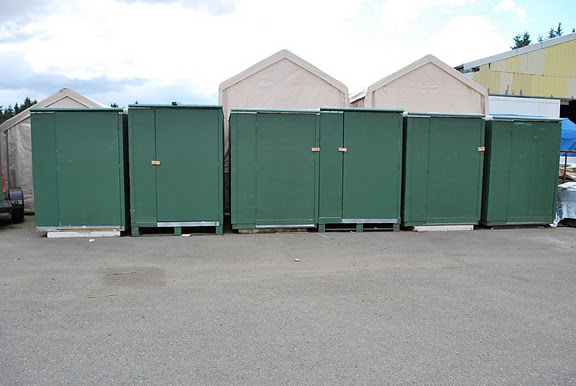

Sing Tiny House Sandwich Core Panels are great for wood sheds, living spaces, living off code, guest houses, ticket booths, pump houses, studios, disaster relief structures, utility sheds, playhouses, espresso stands and any other small building needs. They travel safely, construct quickly, and look beautiful.

Green

  • Recycled foam core
  • Renewable veneer
  • Formaldehyde free glue
  • Minimal carbon footprint
  • Insulation saves energy
  • Manufactured efficiently with minimal emissions



All in One

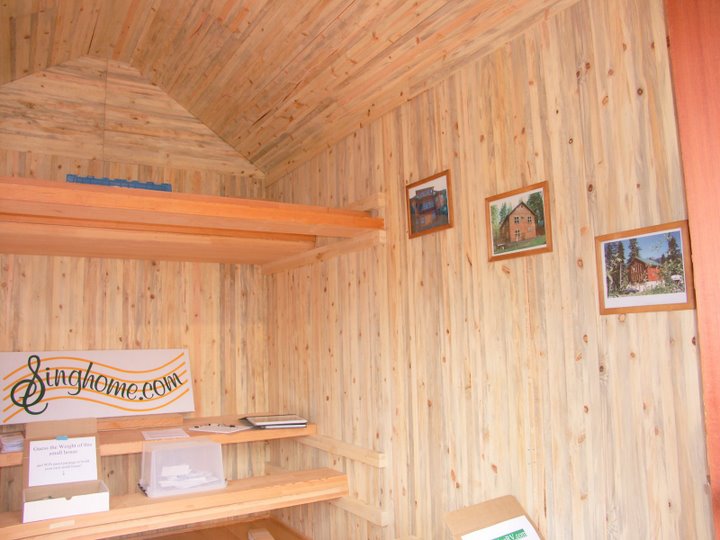

Our prefabricated panels and logs include insulation, framing and interior and exterior siding. Our thin sandwich panel walls give you more space inside your home. We replace the need for sheet rock, which weighs a ton. Sing helps you build your house simply and quickly, so you can start living.

  • Insulation
  • Siding
  • 2” thick panels

Simple and Quick

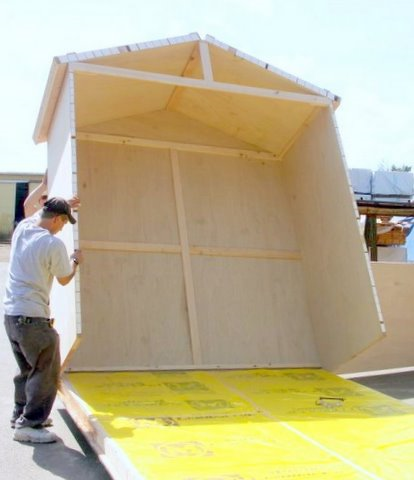

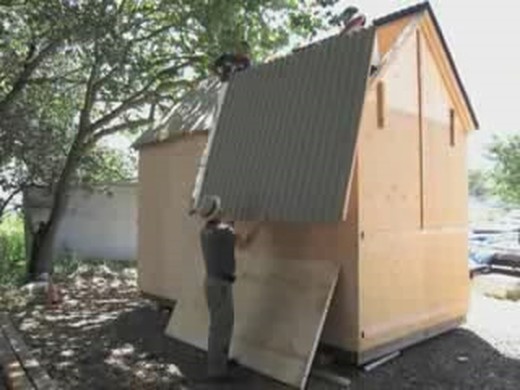

Sing Logs and Sandwich Panels are user friendly. They weigh less than a third as much as an equivalent slab of sheet rock, so you can easily and safely construction your home.

  • Fewer materials
  • Fewer steps
  • Lightweight

Strong and Stable

Sing Tiny Houses are structurally superior to traditional 2” x 6” framed structures because the glue we use for the sandwich panels covers the entire surface area and creates a stronger bond than nails ever could. This will save thousands of nails and over time will ensure the structural integrity of your Tiny House. Sing Honeycomb Panels have precision to within .007 of an inch. This means your Tiny House will be structurally sound and perfectly smooth. After years of expansion and contraction, nails settle, cracking your timber. The structural glue used with Sing Panels will not settle and cause warping over years. Help us to preserve the environment by using high quality, long lasting Sing Panels.

  • Compression strength up to 660psi
  • Resists dents and dings
  • Rigid and straight

Beauty

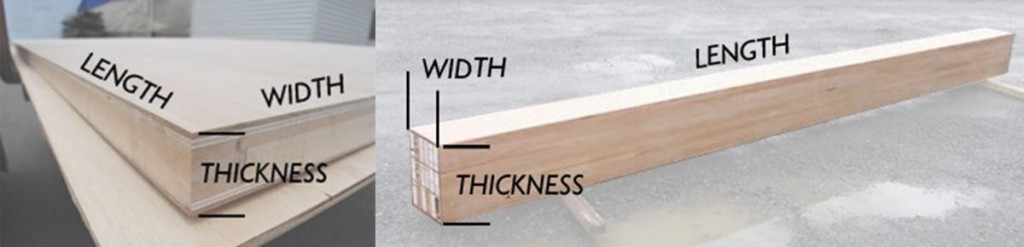

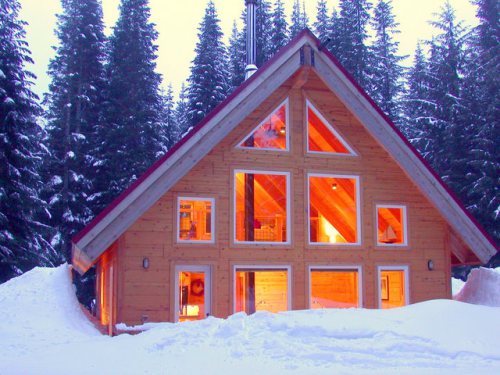

Sing Square Log Homes makes large sandwich panels (4’x8′ and 4’x10′), so your house will have fewer seams. The core is covered by any of a wide variety of skins from natural wood to metal, customized to suit your display style. From rustic to modern, Sing panels are made for your Tiny House!

We offer many skin choices*:

  • Aluminum
  • Marine Grade Plywood
  • Plywood
  • Douglas Fir
  • Birch/Luan
  • Cedar

*Specialty orders are available at a cost.



fs 3

Technical InfoFAQTestimonialsPrice & Order



Testimonial

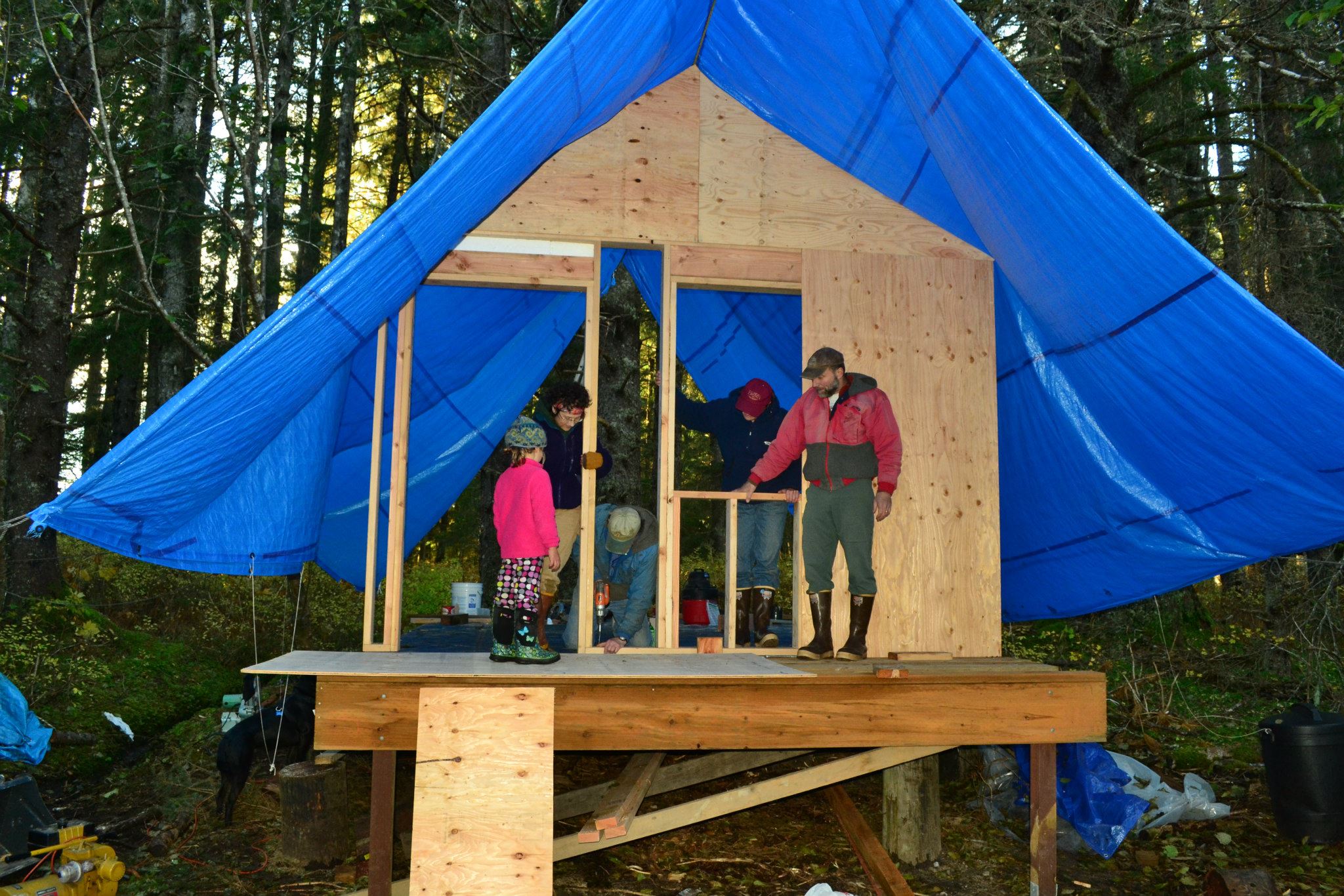

Celina Dill Tiny House Blog

“Learning about Sing Panels completely changed the way I look at building.”

— Celina Dill, Tiny House Blogger

See pictures at her blog and in our gallery.

Yes, Sing Core does make the best reinforced structural insulated panels (RSIP) for use in Tiny House applications as walls, floors, ceilings and roofs. We have a huge desire to support the tiny house industry but be aware that we only offer Sing Panels for tiny house construction to professional distribution channels. Since we offer no support for our products (besides what is readily available via our web site). Our operation is not setup to sell our products to people in need of retail customer service. We suggest that you seek answers to any questions about how to use Sing panels by consulting with your engineer, architect, builder or contractor.

Note: We do occasionally offer products direct to the do it yourselfer, like Tiny House panel Kits or Tiny House Surplus Panels. Though we may provide you with the materials, we offer no how-to support to the DIY enthusiast except that which is available via our Tiny House FAQ (frequently asked questions) and other online resources.

singcoreadmin No Comments

Flooring Index

3-1-2 Floors

Door | Floor | Walls

Click Here for More Applications

torsion box, sandwich panel, honeycomb panel, lightweight panel

For our customers who desire a more traditional look to their hardwood/laminate flooringis our plank flooring.  Our wood veneer features the best and most beautiful wood grainsand our planking system slips together flawlessly for a fit to rival any type of hardwood flooringsystem out there.  You can see that our flooring is more than just wood, it’s wood and insulation combinedto become one and then to become one with your home.  Strong, lightweight, insulation and sound deadening qualities especially useful for homes with more than 1 story to reduce the sound of walking upstairs.

Sing Floors are also available as Wide plank floorLarge floor panelsIce hocky and ice skating event floorStage floors and Temporary industrial floor

Sing Honeycomb Insulated, Engineered Flooring is the newest concept in flooring, by using our patented Sing Honeycomb product, we have made a flooring system that has insulation and flooring combined in one package.  Besides being incredibly strong, our flooring is lighter than hardwood flooring and other types of flooring such as oak and maple flooring you normally find at lumber stores, and better than the laminate flooring you find at those big box stores that sell you everything from a screw-driver to 5 gallons of paint. Keep in mind our patented torsion box flooring is completely made by hand.



Your Sing Honeycomb Insulated flooring can come with just about any kind of wood species you desire, you can choose the lengths of flooring you want from 8 to 10 feet long, and you can choose our 9″ wide plank or get the job done faster with our solid panel flooring in 4′ x 8′

(finished sizes are 47″ x 95″) sheets.

Pictured above and below: Sing Honeycomb Flooring panels for a NASA clean room.





Here photos of our solid panel flooring being installed.  Installation is quick and our flooringcan be cut in straight lines or angle cuts, it doesn’t matter and will still look beautiful.  Our flooringis also given 5 coats of polyurethane to maintain the wood color and protect it.



Our Sing Honeycomb Insulated flooring is available in assortedtypes of wood, colors, plank widths and lengths or in our convenient 4′ x 8′ panel flooring(finished size = 47″ x 95″)
