Large Sliding Door

Sing Core introduces the problem-solving warp-free large sliding door systems to custom fit any opening, up to 40 feet wide or more, that are fully insulated for sound dampening and climate control, lightweight, and stronger than steel pound for pound.

Sing non-warping large sliding doors, create large exterior openings that provide superior weather performance when closed due to the high precision manufacturing process featuring insulation values to meet or exceed your architectural door specifications.

This unique patented and patent-pending large sliding door technology allows door designers, architects, and highly specialized door engineers to create large sliding doors of enormous size with the highest performance standards, each of these unique large sliding panels, providing additional strength and protection to any space from industrial and commercial to utility and residential applications.



It might not be uncommon for you to be looking directly at a product with Sing Core inside when you are in the presence of large sliding mirror wall panels. Large sliding mirrors could be extremely dangerous if they are not attached to a wall’s surface area. Free-hanging large mirrors creates many challenges. That’s why the best large mirror sliding door has Sing Core inside, with its “unbreakable mirror” technology.

Among the high-profile museums and art galleries, entire sliding art walls are also examples of Sing Core’s best of show, which are basically the same as our interior sliding doors, specifically designed for displaying art in the most elegant ways.

You may also find Sing Core inside uniquely fashioned large patio doors, which can limit the view when closed, or have large window openings, such as French doors, and can be one large sliding door, or multiple sliding doors when used as multi-slide patio doors.

Large door openings are made for Sing American French doors or large sliding doors guaranteed to insulate any interior space from and exterior conditions with specially designed swinging doors and French doors, each one an individual work of art, proudly made in the USA.

The Sing Core factory is nestled inside its remote location in the scenic Pacific Northwest where all the magic happens and inventor Peter Sing works in tandem with the largest door companies in the world to create one-of-a-kind doors that can be guaranteed not to warp, bend, twist, or otherwise fail for 50 years.

50-year Warp-free Guarantee

There is only one way to build a warp-free door. So, if you have an Eco-friendly lightweight long, large sliding door installed in your doorway opening which is stronger than steel and has a 50-year warp-free guarantee, you can bet it has Sing Core inside.

No matter whether you’re looking for the perfect large feature doors or large factory doors, you know that you can depend on Peter sing’s invention(s) to have the best large sliding door solutions for all your aviation, commercial, industrial, agricultural metal building system needs.

Sing’s reinforced insulated torsion box core has revolutionized traditional sliding door technology, which can be applied to any functional door application from large opening folding door systems to sliding doors for large façades.

Eliminate heavy regular maintenance of your large format interior or exterior sliding door systems by applying the most innovative solutions by Sing’s True Flat Team, who help create larger sliding doors than were fiscally unapproachable before.

New possibilities abound when you no longer have to worry about having to deal with all the challenges that are associated with large heavy door, when you can create lightweight high strength doors in any shape, style, or size with Sing Core inside.

And how easy is it for you to get this new generation of large sliding door?

Just go to your favorite custom large sliding door company and tell them what you want, the height, width, and thickness, as well as the exterior surface material you would like to see on your door, and if you want one of the best doors in the world, make sure you tell them, “I want Sing Core inside.”

singcoreadmin No Comments

Large Sliding Doors in Stable Renovation

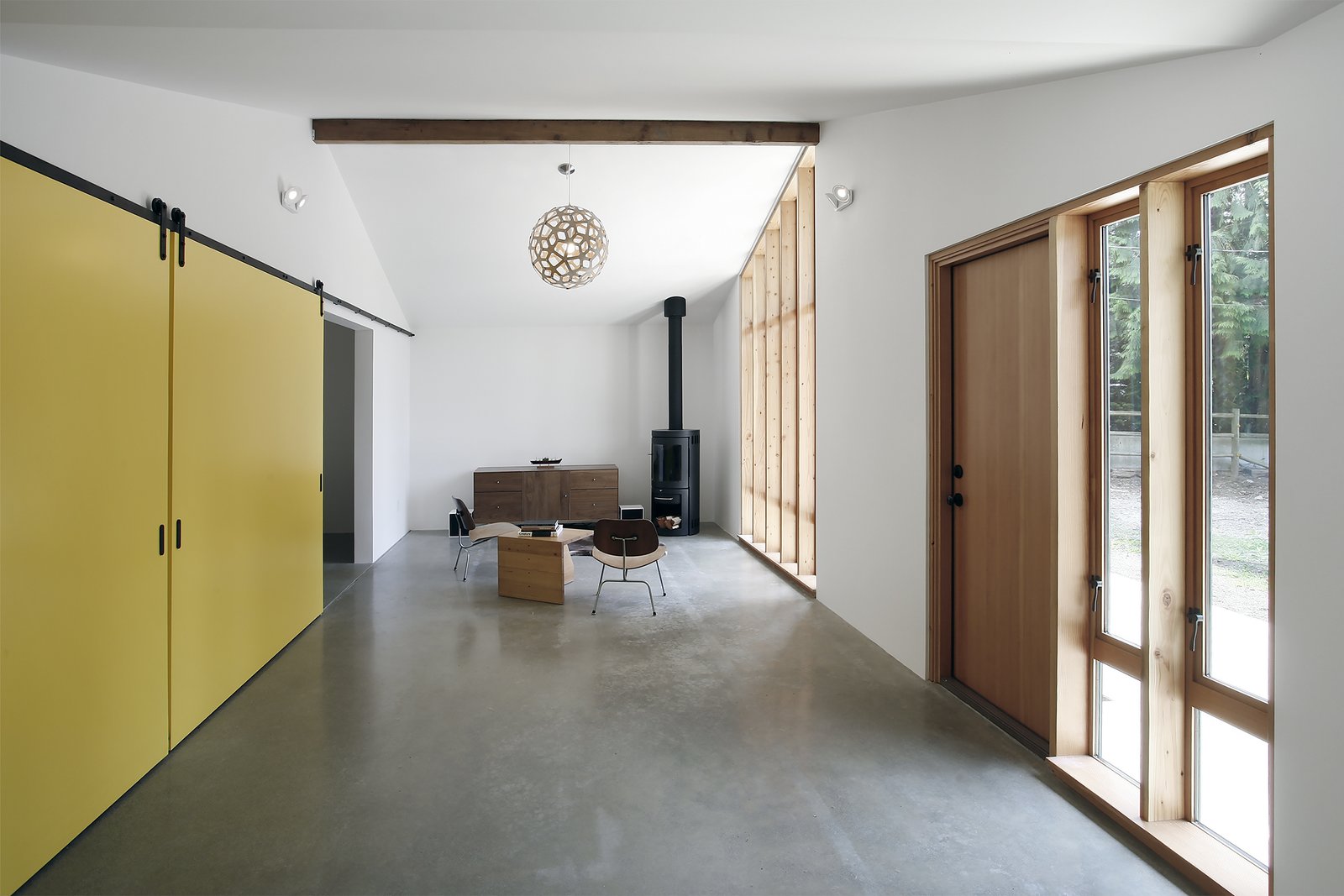

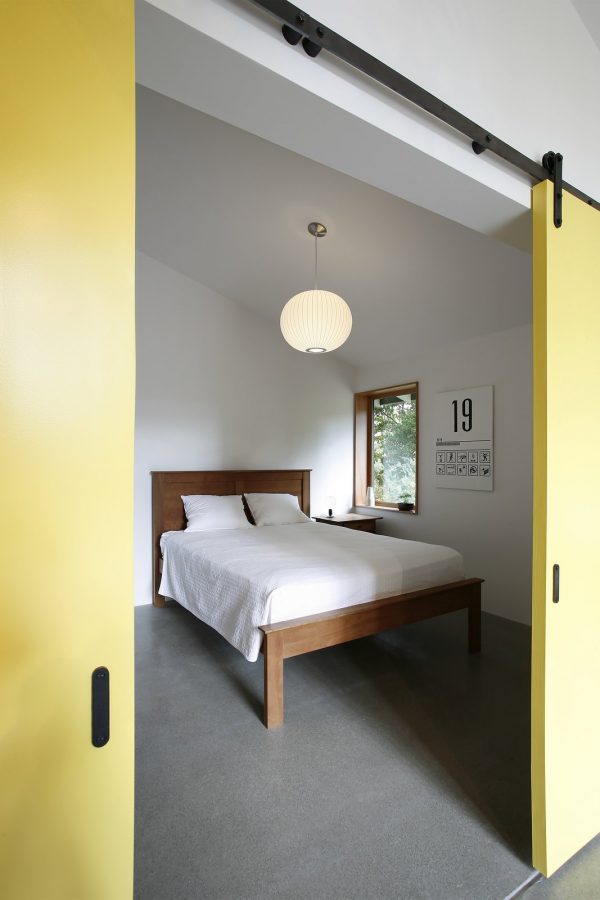

Take a look at what our friends over at SHED Architecture did when they combined Eco-friendly insulated lightweight high strength patented Sing Core with a horse stable repurpose transforming the site into an elegant workspace studio and extra bedroom thanks to a few large sliding barn doors with Sing Core inside.

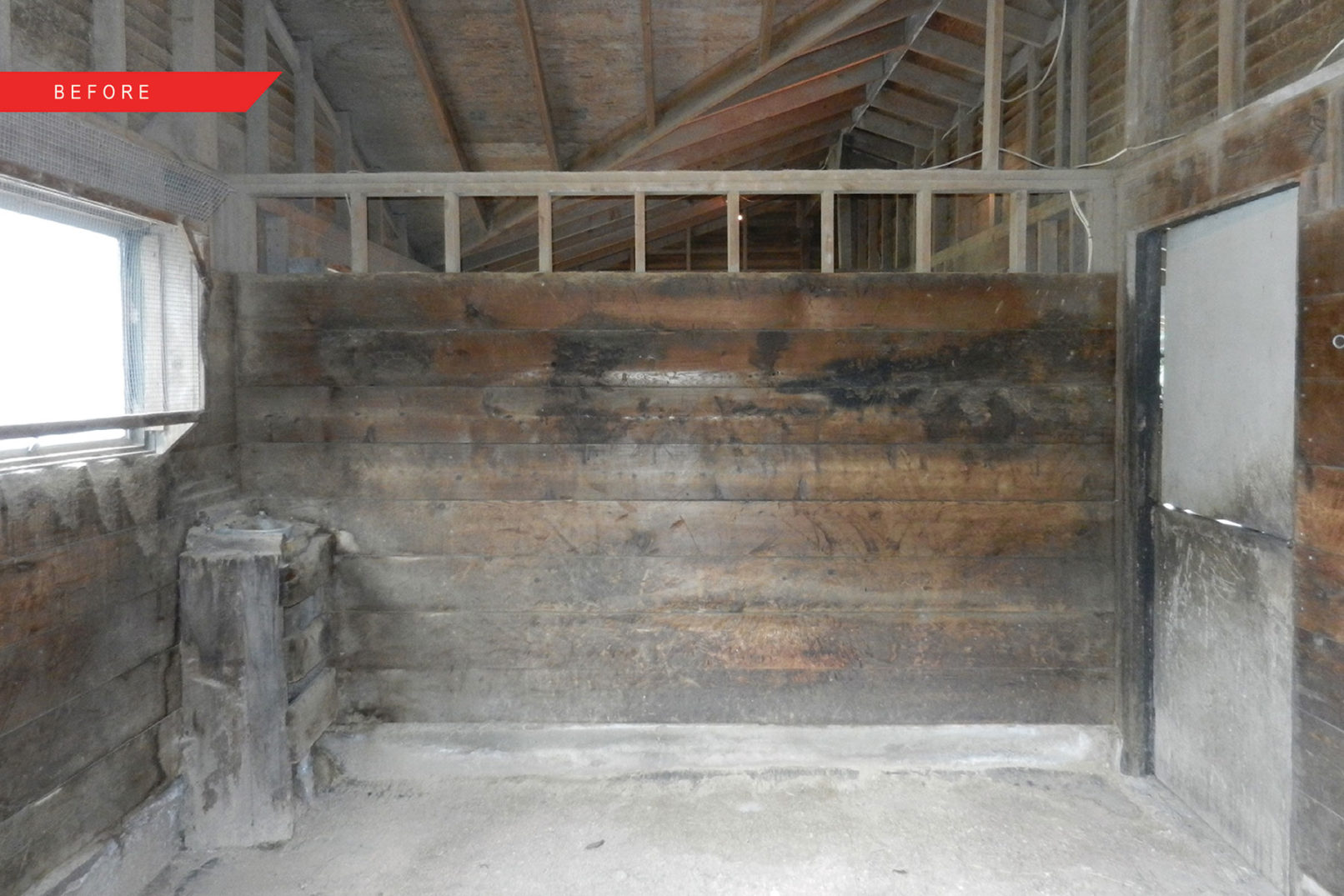

BEFORE

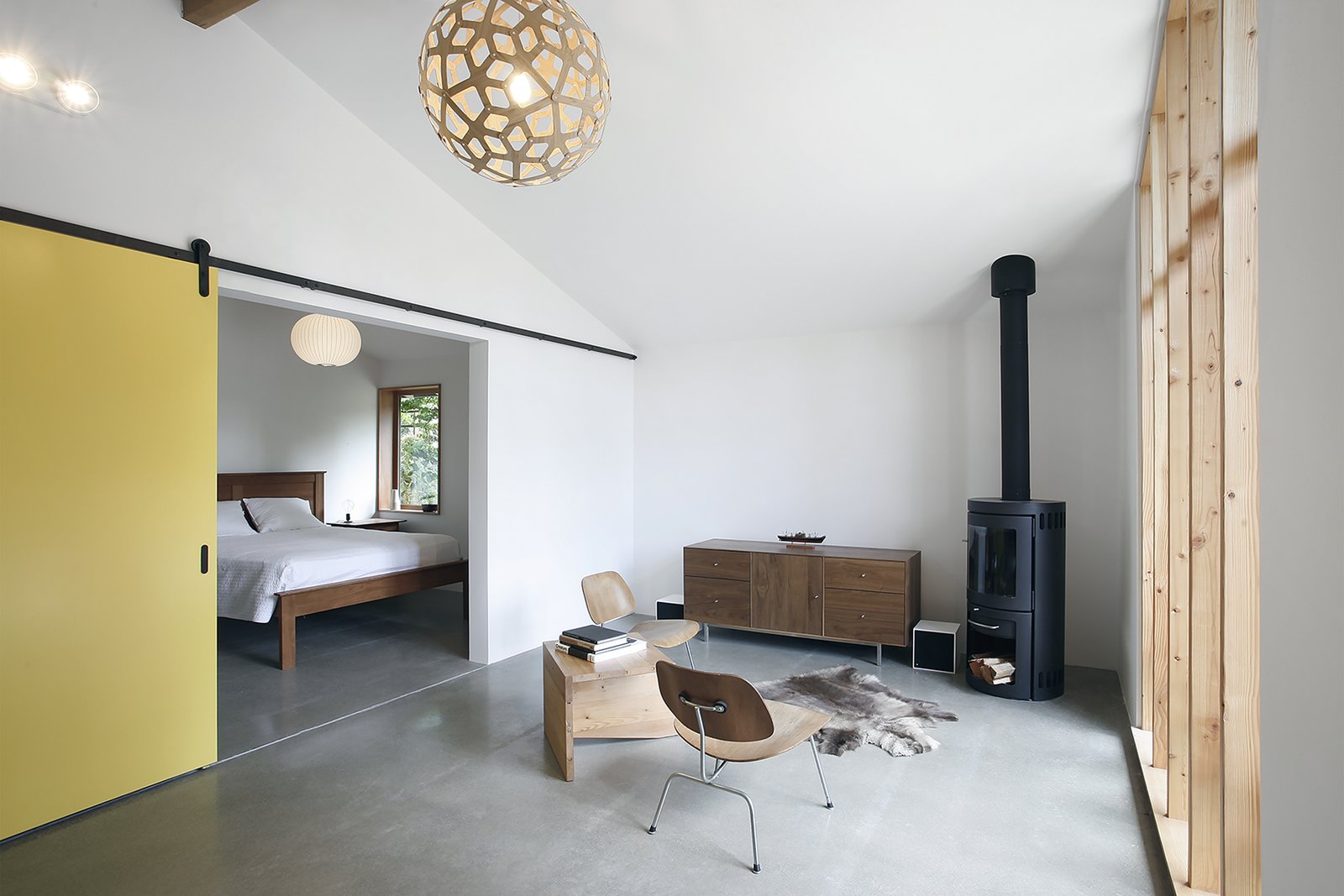

AFTER



Daniel Sing Core No Comments

A Low Cost Alternative Way to Build Very Large Sliding Doors

Although not as tough as our original one piece door designs with a 50 year guarantee, our segmented doors still come with our patented Sing Core structure inside and carry a 5 year warp-free guarantee. And, they can be sold at a much reduced price.

In the past, very large and oversize specified doors were often made as a single piece and shipped whole to the contractor for installation. This is particularly true of very large pivot doors and sliding doors. With modern door construction techniques pioneered by Sing Core large doors can be produced and shipped to the customer in several pieces. These segmented doors pass on savings to the customer while maintaining the highest quality standards for warp free door construction.

Benefits of Modern Segmented Door Construction

Building a door in sections provides numerous benefits without compromise in strength, lightness, and flatness:

See Them Come Together

More Efficient to Build

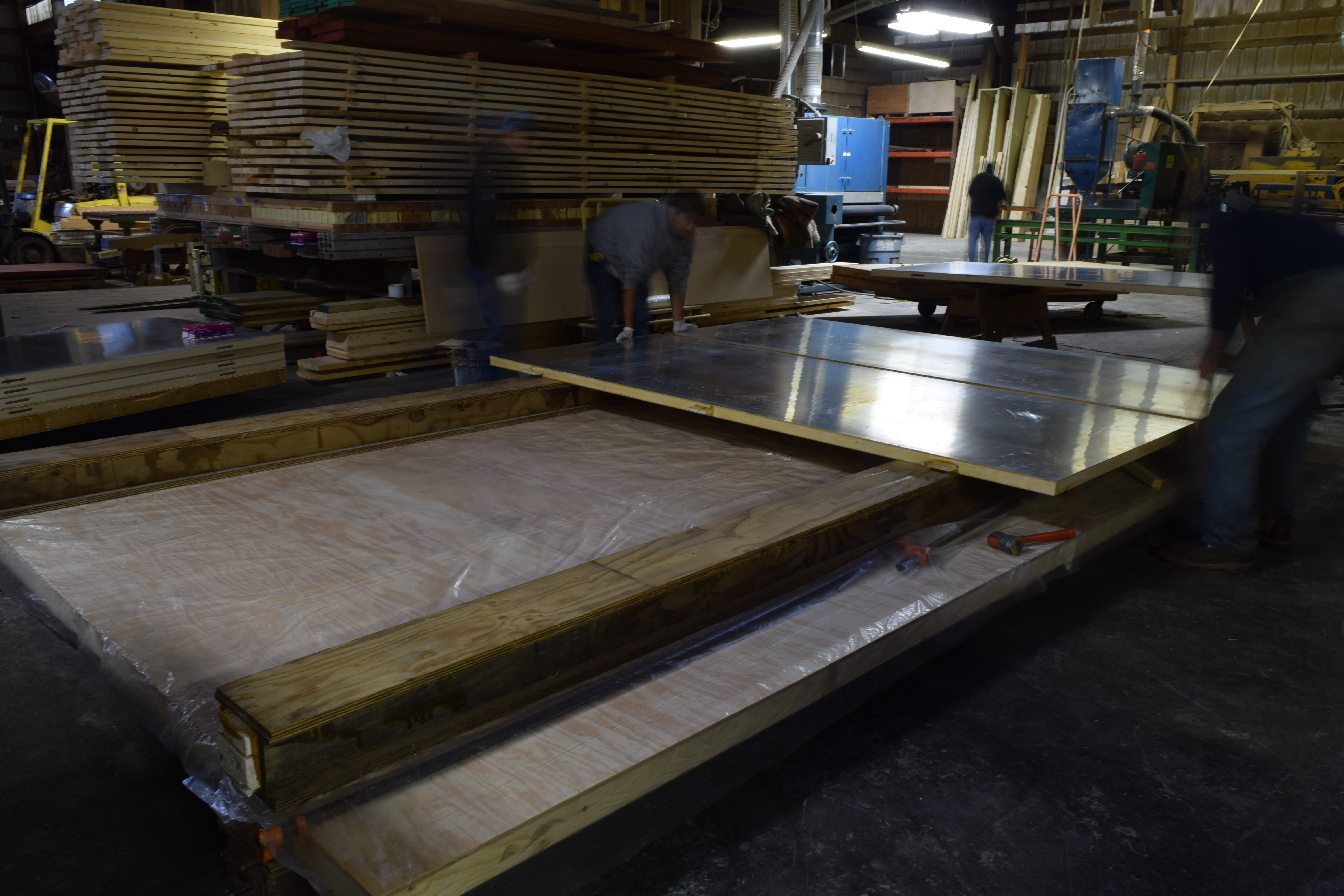

Constructing a door in smaller sections makes the door easier to handle in the factory and easier to produce in general. Having more manageable sections leads to quick and efficient construction, at a cheaper cost. Doors constructed with our modern sectional approach pass on savings to the customer.

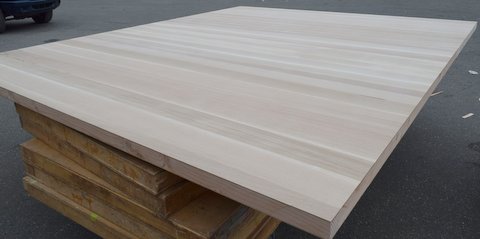

Cheaper to Ship

Doors cores produced in sections are built to be convenient and cheap to ship compared to a door built in one piece. This may reduce shipping costs payed by the customer to receive their door purchase.

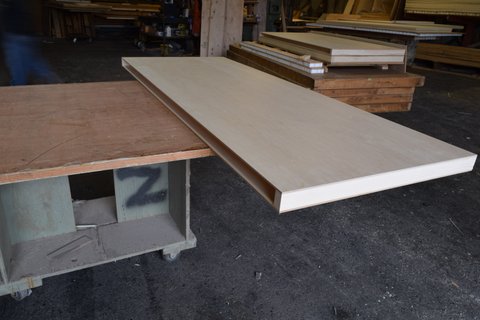

Easier to Handle

Very large doors constructed in segments conform to common sizes. When you receive the door at your site handling it in segments is usually more natural for workers used to traditional sized doors than and 4×8 materials than handling an extra large door. Leaving joining the door until it reaches the site cuts costs and saves time all the way from our factory to your building site.

Strong and Stable

Sing Core doors shipped in sections and assembled on site maintain the highest standards for strength, lightness, and straightness. At Sing core we guarantee warp-free performance of segmented doors for 5 years.

How to Assemble a Sing Core Segmented Door

Assembly of a modern sliding door constructed using Sing Core technology without any specialized tools and equipment.

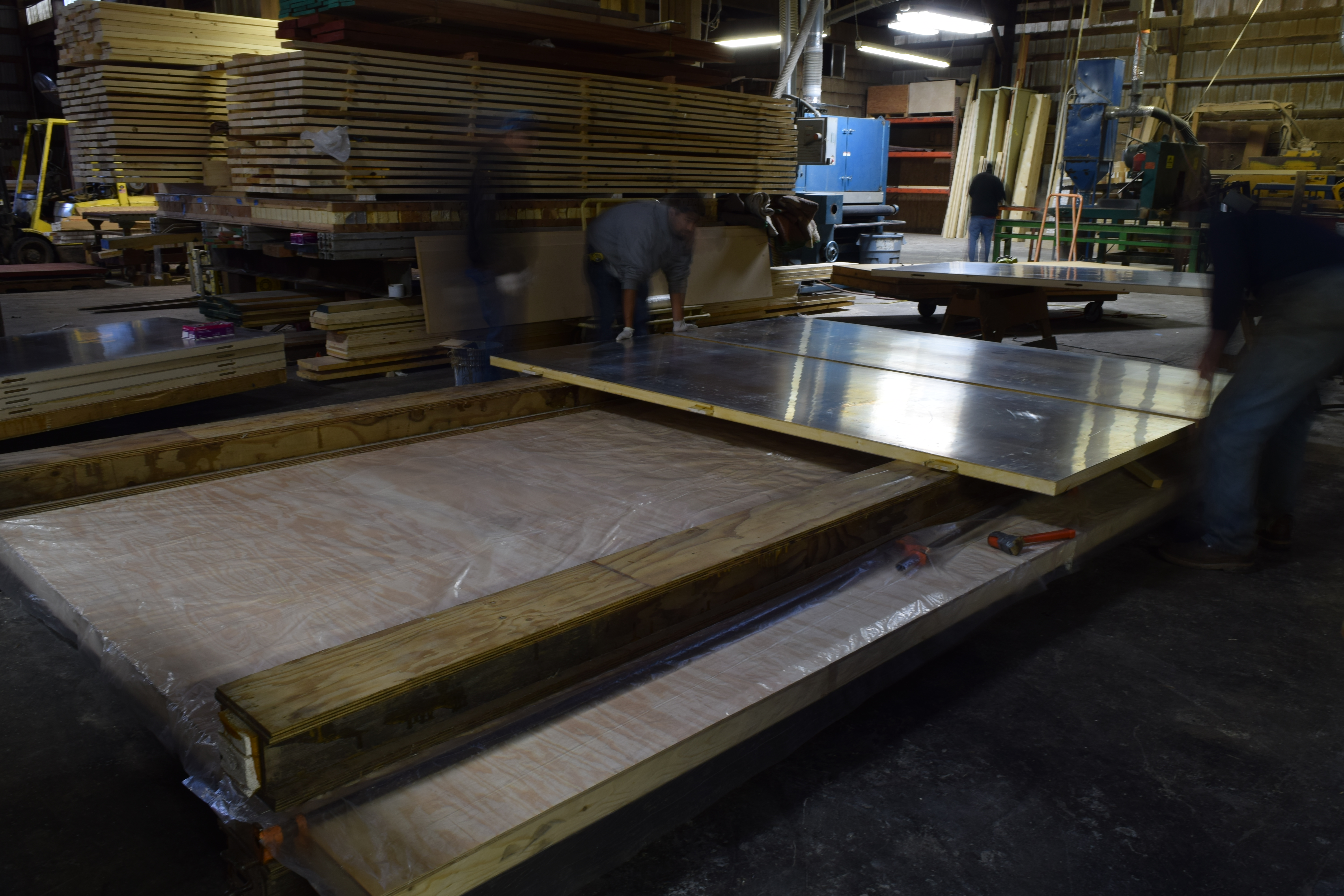

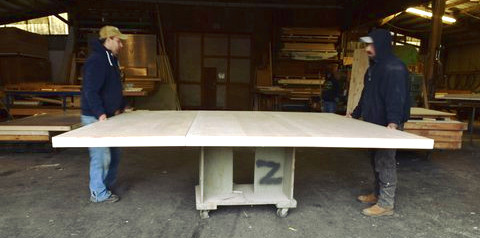

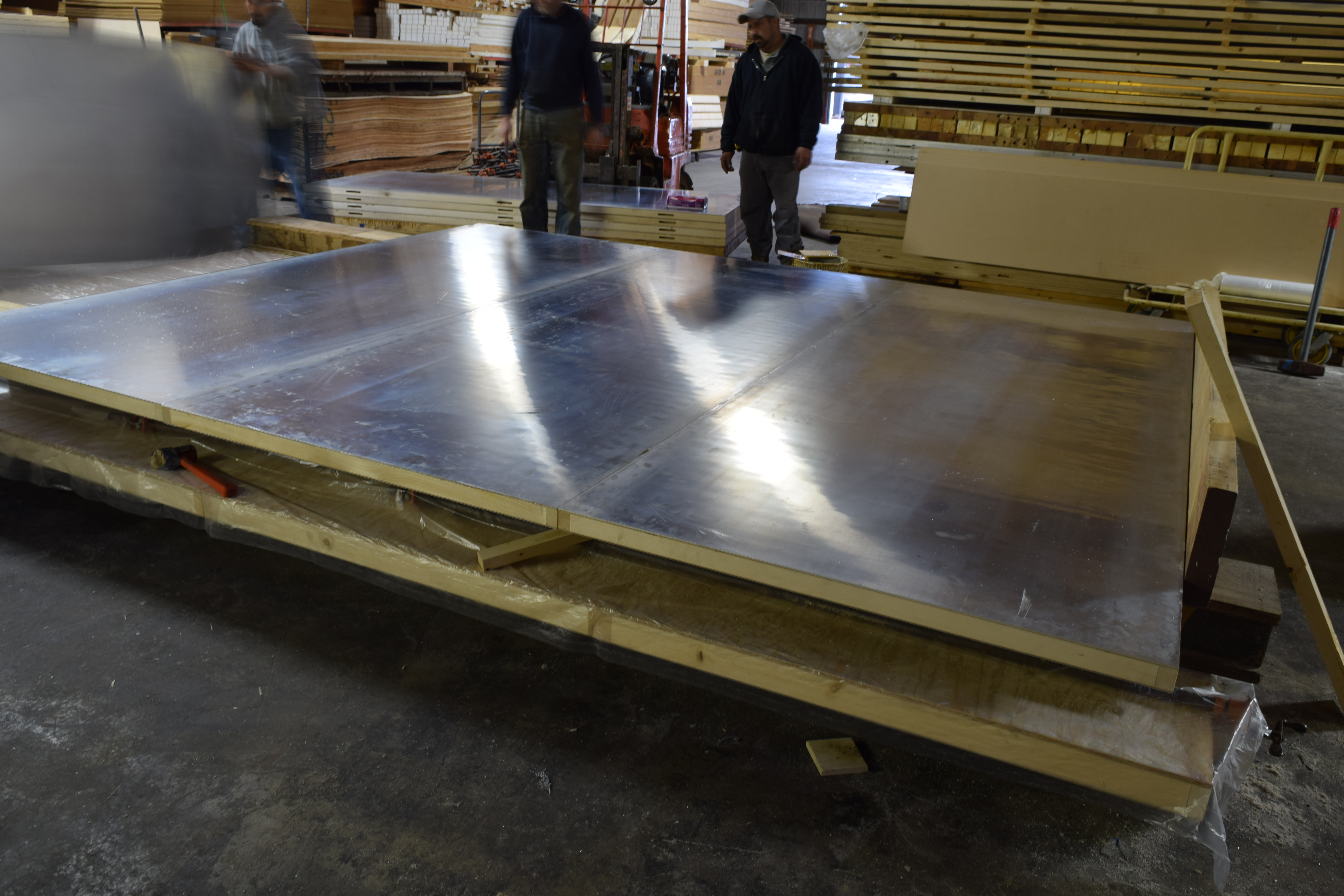

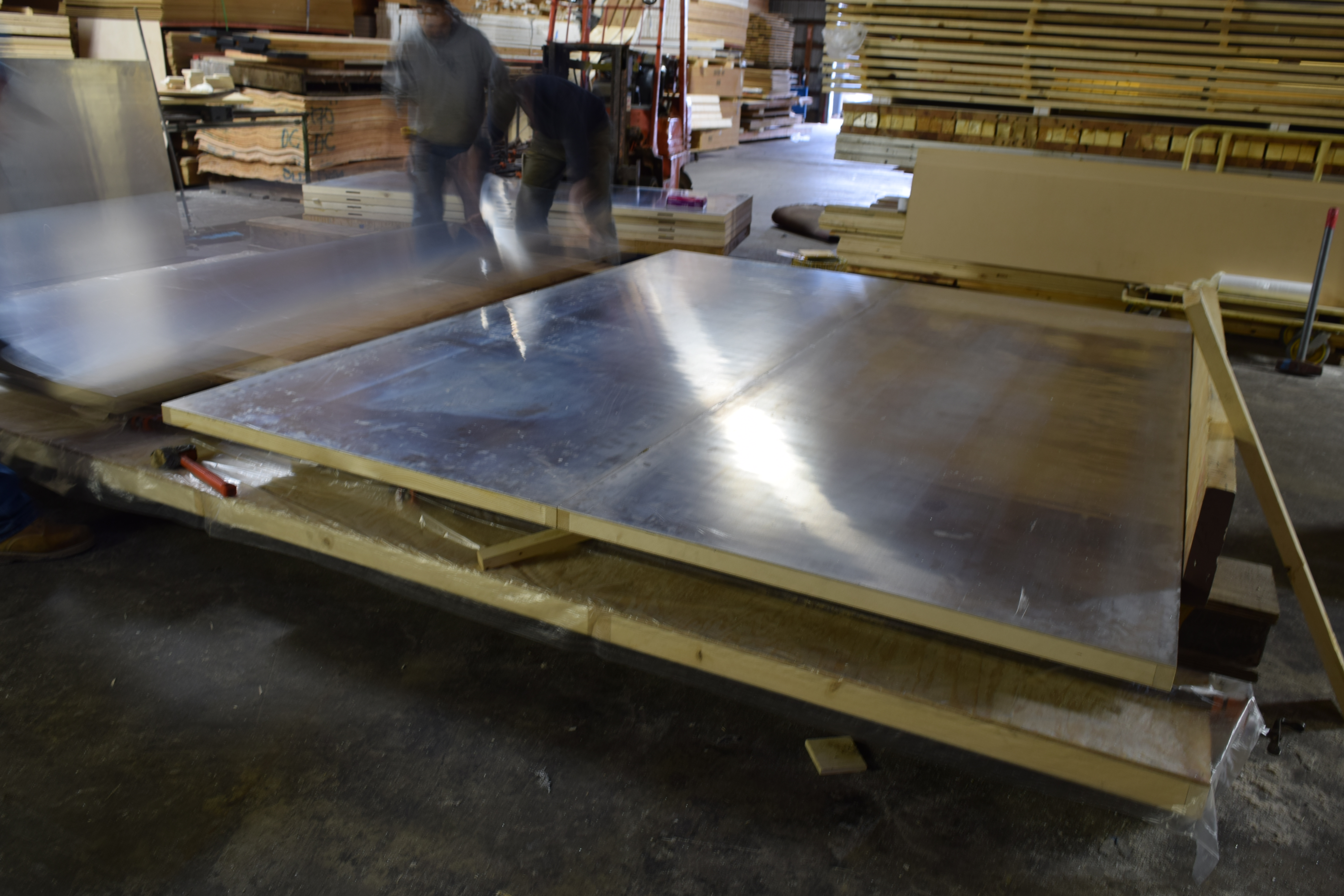

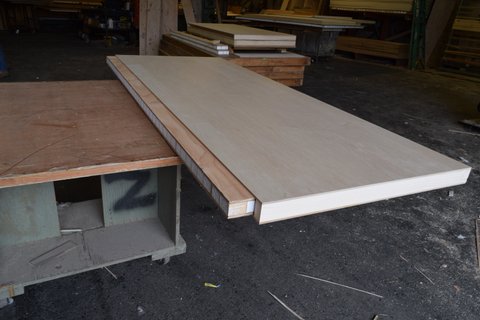

1. Lay Each Panel Flat

The first step to join a Sing Core sectional door is to lay the panels on a flat surface. Any flat clean surface will work. For very large doors we like to use two straight beams laid on the ground along  to hold the top and bottom of each door segment.

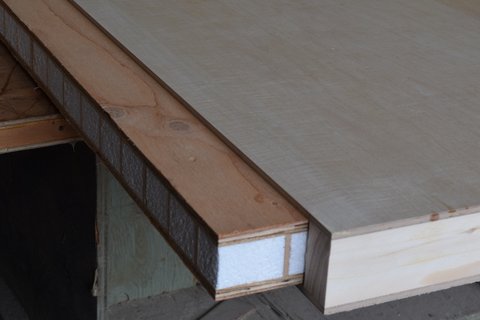

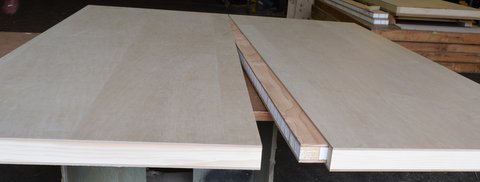

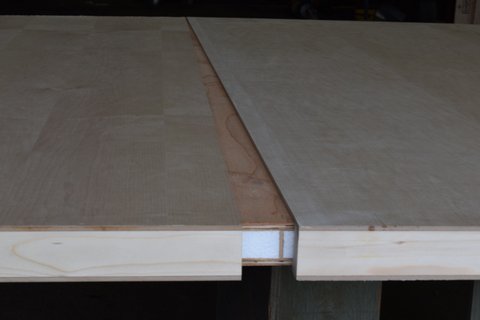

2. Slide a Spline in to One Side

Each spline and pocket are precisely cut to fit with strength. Our products are built with our 5 year warp-free guarantee in mind. Simply push or lightly hammer the spline in place on one side of the joint. Then your panels are ready to be fit together.

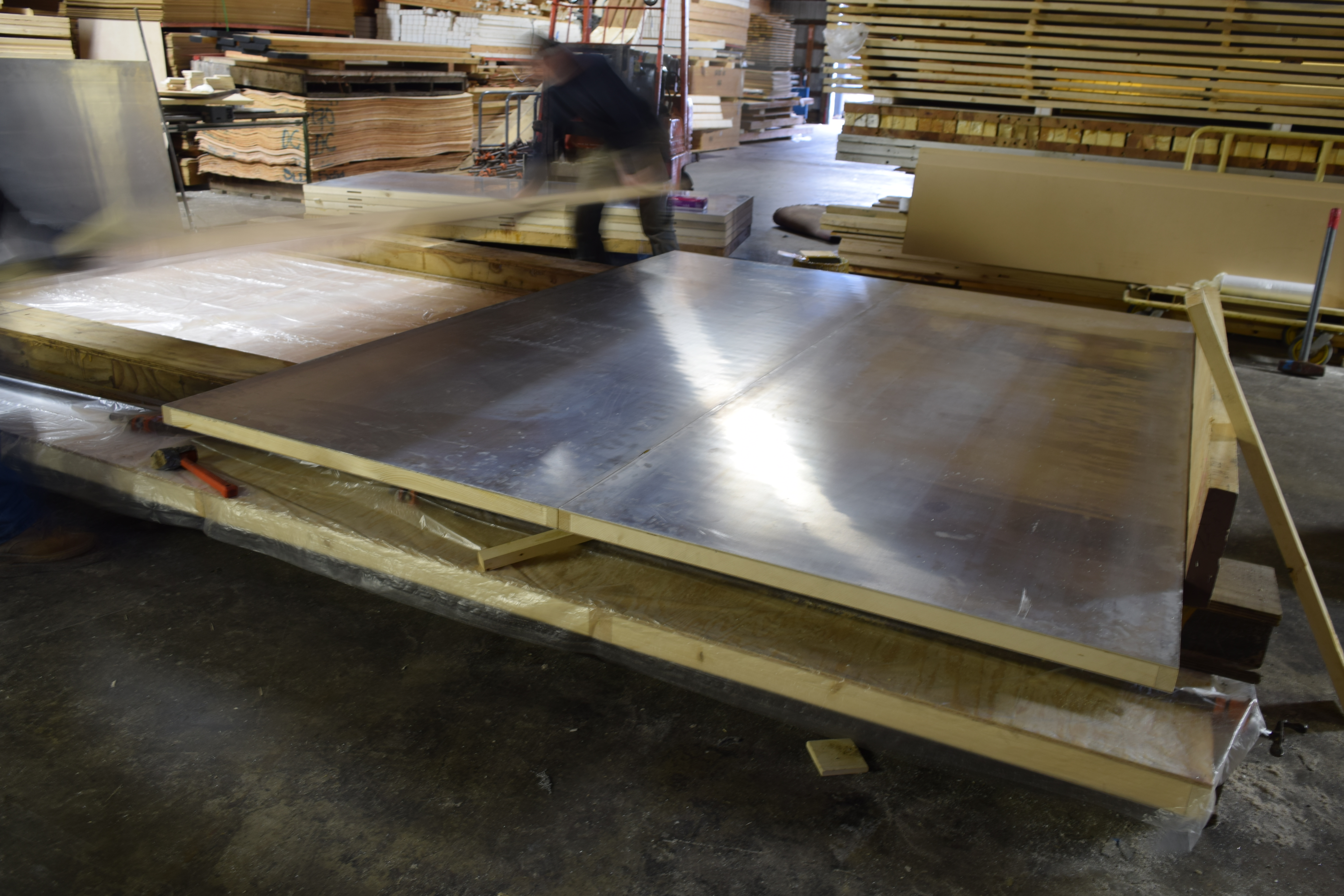

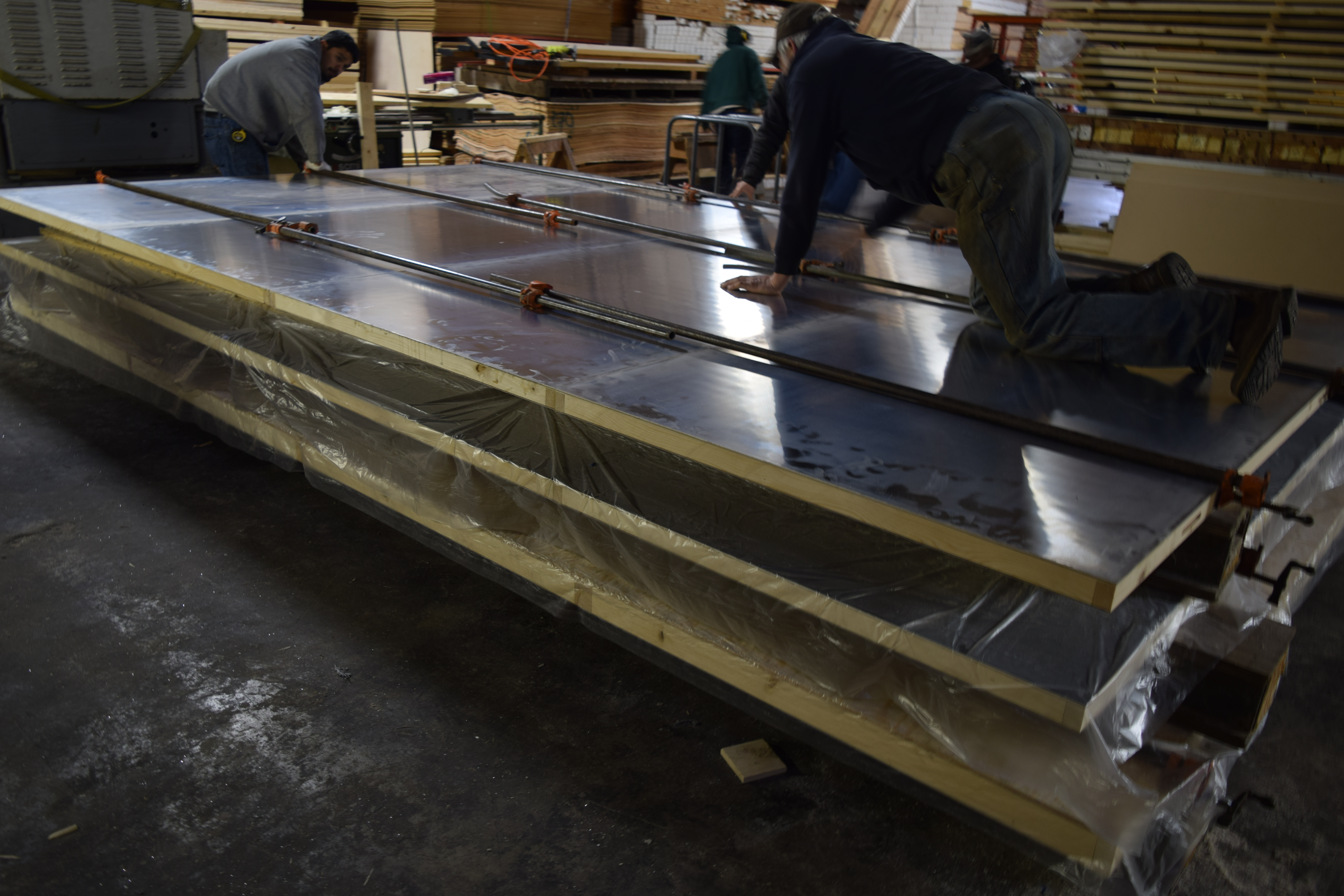

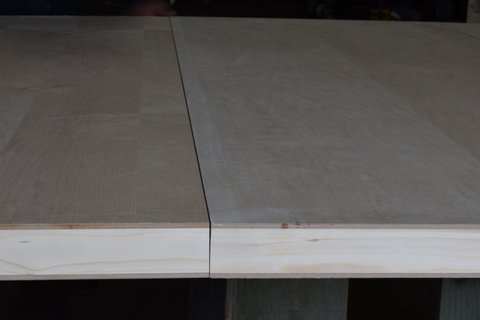

3. Joining the Panels

The final step in joining a modern sliding or pivot door is to press the sides together. This can be accomplished a variety of ways, including gentle application of a sledge hammer, a few ratchet straps, clamps, or any other means you have of providing joining force. Once joined, the door is strong and secure, built to last, and can be finished and installed as any other Sing Core door.

How to Build a Modern Door



singcoreadmin No Comments

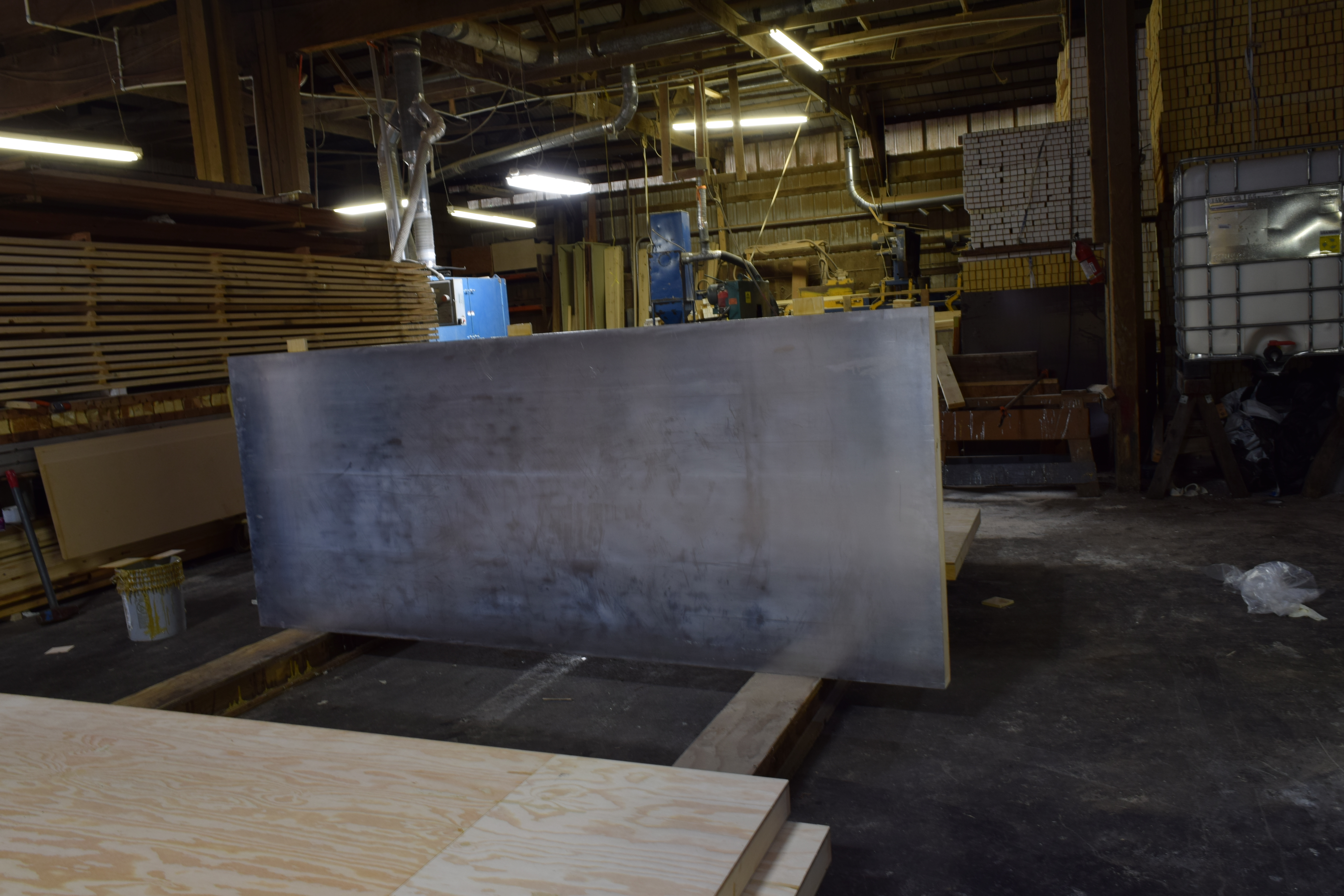

Large Cold Rolled Steel Sliding Door with Man Door Specifications

General Specifications

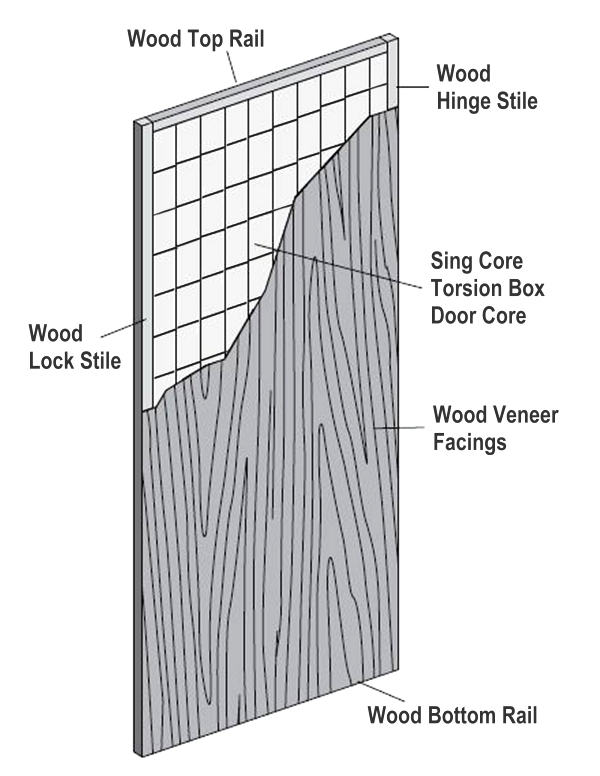

Standard Sing Core Cold Rolled Steel Sliding Door Blanks are manufactured with patented Sing Core material as the base interior substrate of the door. The Sing Core substrate material is created using a vertical grain natural wood torsion box design while the traditionally empty voids are filled wall to wall with recycled foam. The foam material is available in various forms depending on your specification. The default is recycled EPS foam. Natural wood lock blocks can be positioned at locations as necessary for locking mechanism placement and/or as sliding hardware anchor points. The core material is framed by 1.25-inch wood stiles and rails for finishing strength and attaching hardware. The torsion box is completed by adhering 20 gauge cold rolled steel as exterior material (skin) according to your specifications. The man door opening is cut out to architectural specifications.

Cold Rolled Steel Sliding Door Surface Material

The door blank surface material is made of 20 gauge cold rolled steel unless otherwise specified. Bonding agent used in adhesion of the entire composite material is formaldehyde-free.

Click here for tips on How to Create the Right Sing Panel for your specific project.

Every Sing Core manufactured door blank is unfinished (unless specified otherwise) and professional grade is guaranteed for 50 years for warp-free and structural integrity.

Detailed Specifications:

Scope: Subject to local building codes, the standard Sing Core sliding door blank is intended for use in:

  • Single family dwelling interior applications
  • Multifamily dwelling, low-rise professional office, library and low-rise motel interior applications
  • Lighter use industrial building and factory, hotel and retail sales building interior applications



Cold Rolled Steel Sliding Door Materials: Sing Core cold rolled steel door blanks are manufactured using Eco-friendly cold-press process. Composite materials include:

  • Sing Core vertical wood-grain torsion substrate filled with recycled EPS foam
  • Core material is framed with solid wood stiles and rails
  • Facings are 20 gauge cold rolled steel
  • Formaldehyde-free bonding agent is used for adhesion of all components

Man Door Component: The man door leaf is created to specifications to match the large cold rolled steel sliding door and is to be fitted inside the opening in the large sliding door panel. In this case, 20 g cold rolled steel with 1.25 embedded solid wood frame and lock blocks on either side of the man door.

Architectural Specifications Substitutes

For information on some of our architectural substitutes click here.

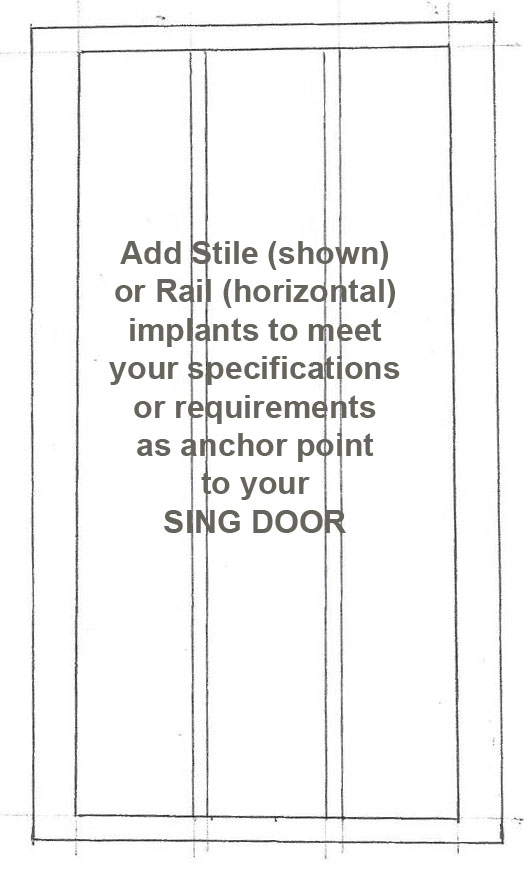

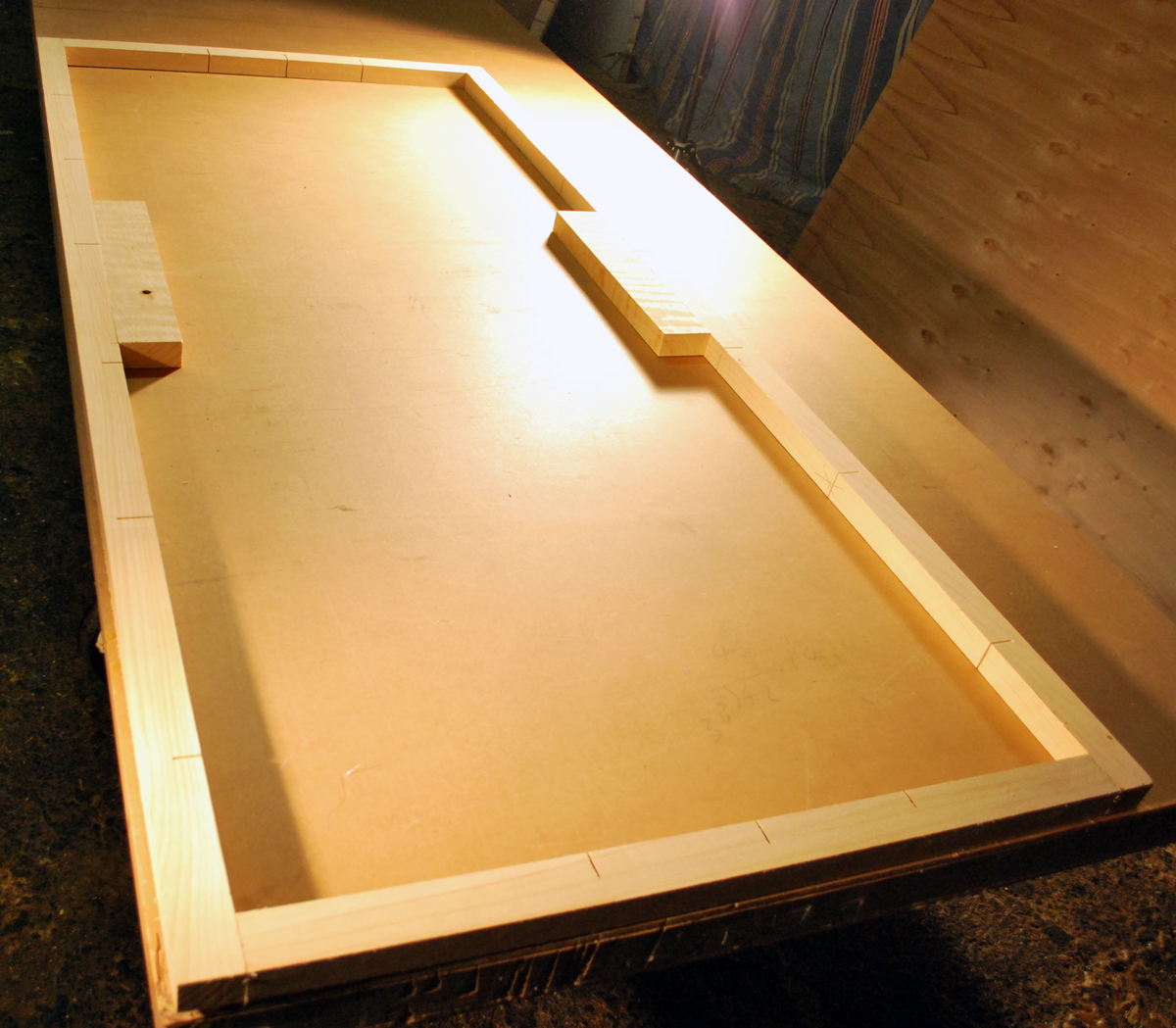

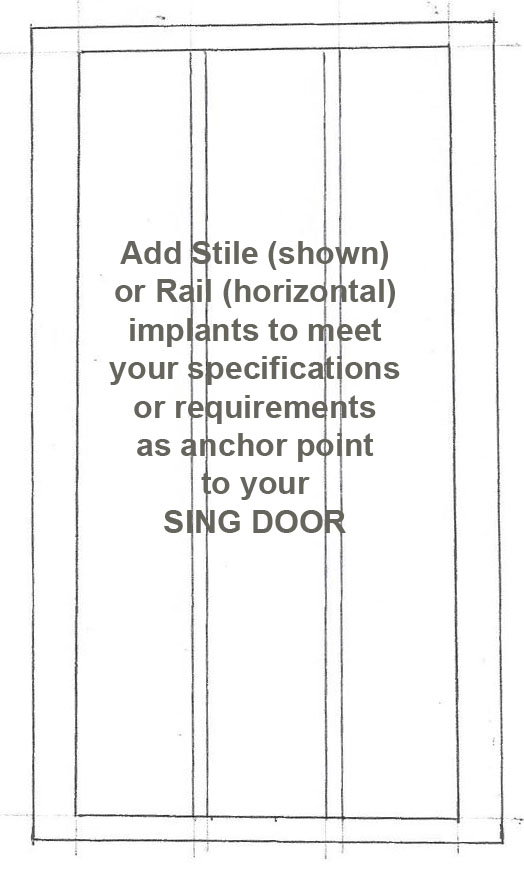

Interior Blocking: Solid wood implants can be inserted as lock blocks or anchor points. Also additional stiles (vertical wood implants) or rails (horizontal wood implants) can be positioned at any desired location inside the cold rolled steel sliding door and man door leaf. (Note: Depending on your expectations, solid wood implants should be supported by at least 12 inches of Sing Core material to maintain true flatness.)

Delivery: Reasonable care is taken to ensure safe transportation of your Sing Core large cold rolled steel sliding door with man door from factory to your location including proper crating to protect the natural beauty of your cold rolled steel doors during transport.

Storage and Protection: Store your Sing Core large cold rolled steel sliding doors in an upright position and allow to acclimate to room temperature following shipment receipt or prior to finishing or installation.

Preparation: Per manufacturer’s specifications, ensure that openings or attachment walls are constructed plumb, true and level prior to installation. Select fasteners of adequate type, number and quality to assure proper function.

Installation: Installer shall be specialized in the installation of the type of work that is associated with the project and will comply with manufacturer’s installation policies and procedures to ensure proper end use.

Verify that attachment, hinging and latching assemblies operate freely and correctly

Finishing: The finishing of the Sing Core large cold rolled steel sliding doors and man doors are the responsibility of the client due to the product being delivered in unfinished condition unless specified otherwise in writing for use in interior applications only. Any exterior use must be approved in advance to avoid warranty exception and sealing must be in accordance with manufacturer’s specifications to protect against a variety of environmental conditions as necessary. In reference to exterior applications:

  • Seal all 6 surfaces with two coat minimum on operable panel(s)
  • Finishing or re-finishing must be completed following acclimatization and installed within 7 days
  • Avoid finishing after rain (or damp) or during periods of higher than average humidity
  • At least once a year, conduct periodic inspections of coating to ensure no wall panel components are exposed
  • Reseal the surface as necessary

Machining: Sing Core large cold rolled steel sliding doors are easy to work with in the metal shop for machining or on-site for finishing, and fastening.

Strength Performance: Patented Sing Core has an unsurpassed strength as compared to other lightweight substrate materials tested at 660 PSI (based on 2″ x 2″ grids and 3/4″ thick) for superior structural integrity and is resistant to warp, twist and crack when compared to other materials.

Light Weight Performance: Sing Core weighs much less than other traditional building materials, as much as 50% less; or more, as little as 4 lbs. per sq. ft. yet sustainable and true green technology.

Insulation Performance: Standard Sing Core sliding door blanks feature built-in insulation value with an R3 (can be upgraded to to R6.5 or more) rating per inch, depending on architect’s specifications.

Acoustical Performance: Sing Core standard sliding door blanks have a natural sound-deadening quality for noise control. Standard sound transmission class (STC) is 30. Additional noise control specifications can be met at the behest of the customer or designer and must be noted in advance.

Eco-friendly: Sing Core is manufactured using natural wood fibers, no formaldehyde, or toxic chemicals, is created using less energy than any other core material with little or no waste. The structure of Sing Core is 100% renewable (nature-grown) clean wood fiber and/or recycled material.

Warranty: Sing Core sliding door blanks come with a 10-year warranty, while professional manufactured sliding door blanks can be structurally guaranteed and warp-free for 50 years under normal conditions.

Basic Sing Door Spec Drawings: Click here

variety-of-design-options-for-architectural-doors-illistration-sing-core
Custom-cut Window/Lite Openings: Lite openings for glass inserts can be custom cut per your specifications (drawings above show examples of standard openings) for glass insertion.

Door Specifications

Door Width
Rough Opening Width
Rough Opening Height 6/8
2/0 (Single) 26″ 82-1/2″
2/4 (Single) 30″ 82-1/2″
2/6 (Single) 32″ 82-1/2″
2/8 (Single) 34″ 82-1/2″
3/0 (Single) 38″ 82-1/2″
4/0 (Double) *50″ 82-1/2″
4/8 (Double) *58″ 82-1/2″
5/0 (Double) *62″ 82-1/2″
5/4 (Double) *66″ 82-1/2″
6/0 (Doulble) *74″ 82-1/2″

See also: Door Technical Information

Appearing regularly in Contemporary Architecture Design

* Note: STC rating varies according to size, thickness, skin, and other factors. Sing Core does not rate doors, although we are fortunate enough to have one of the best sound testing labs in the world, here in the Pacific Northwest. If you require a specific STC rating, Sing Core can build a door to your architectural specifications and have the resulting door tested at our rating facility for an official rating.
