Kate Miller No Comments

19′ Pivot Entry Door





Interior view of extremely large pivot door with hardware



Case study:

A 55” wide x 19’ tall x 3.25” pivot door. With differing Cedar and oak wood stave skins.



Being approached by a client who is in need of a uniquely large pivot door to withstand the difficult climates of Lake Tahoe can seem like a near impossible feat. This pivot door needed to be lightweight for ease of installation and daily use by the client, impact resistant to hold up to everyday use, sound deadening to drown out the hustle and bustle of everything outside

A pivot door built with patented and patent-pending SingCore inside can make anything possible.

Exterior view of oversize pivot door with hardware

Opposing wood species

Dissimilar wood species on the interior and exterior of the door means differing rates of expansion and contraction. SingCore has the strength and stability to remain rigid against the push and pull of the dissimilar skins.



Lightweight oversize door

Lightweight

Now let’s take a look at why this door needs to be lightweight.

First off, big pivots doors tend to be very heavy which makes them more difficult to manage, they require custom made specialized hardware and require a lot of maintenance due to the stress that the pivot door adds to the structure.
Secondly a pivot door is only held with two points of contact on the top and bottom of the pivot door; meaning that if the door warps or twists, the door operation will be degraded or completely fail.

A pivot door this size with a solid core will weigh around 800lbs before any skins are added.
Now with SingCore, this door’s weight is a fraction of what other solid pivot doors would have weighed. This weight savings translates into a reduced overall budget by having lower shipping costs, lower hardware cost and lower cost for the labor of the installation.

Adverse climate for keeping oversize pivot doors straight

Ready for any climate
Lake Tahoe is known for its incredible skiing and breathtaking beauty. Not for its temperate climate.

This pivot door will see outside temperatures as low as 4°F while the inside temperature may be a toasty 76°F, which is a 72° difference.
SingCore pivot, sliding, hinge, and pocket door slabs are fully insulated with your choice of recycled EPS foam core (3.5 R value per inch) or urethane foam core (5.7 R value per inch).

Perfectly straight oversize pocket door

Straight
At 19’ tall this pivot door is as big of a challenge as it gets to keep straight.

All door slabs fabricated by SingCore are completely custom. The SingCore team takes into account the finishing, hardware, and climate when building each core. No two doors are alike. And we take great pains to ensure every pivot, sliding, pocket, and hinge door stays within AWI standards.

We love creating one of a kind oversize doors that no one else can.



Need help finding hardware for your oversize pivot door?

We recommend https://www.bridgeportworldwide.com/ for all of your large pivot door hardware needs.





Kate Miller No Comments

Hinged Entry Door 3x13x1.75

Here’s another great example of how straight a SingCore door is.

See other great examples of SingCore hinged doors here.

Ian Sage No Comments

High Precision Doors

Sing High Precision Doors are a marked improvement in door development, design and implementation thanks to a newly invented Eco-friendly core material that is lightweight, insulated and stronger than steel pound for pound.

This new technology is revolutionizing the door industry especially in regards to large oversize doors. Architects, designers, mill works and door manufacturers all experience problems with doors that are larger than normal size.

Large doors present a variety of challenges in areas, like:

  1. choice of available materials
  2. lightweight doors are weak and tend to fail
  3. Copper-Doorheavy doors strain hardware and structure
  4. increased regular maintenance
  5. failure due to warping

Sing High Precision Doors solve all these issues with an Eco-friendly insulated solution.

How high precision are Sing High Precision Doors?

Sing High Precision doors are created with so much accuracy that the original door slabs are perfectly flat within .0006 inch accuracy.

After applying your desired composite materials and/or skin, your high precision door can be laser CNC machined for a perfectly flat surface, limited only by the accuracy of your CNC machine shop capabilities.

The Large Challenge

Certainly, you could use laser CNC cutting and engraving to machine nearly any door made of almost any commonly used door material for a flat result. The challenge comes from standing the door upright and expecting a degree of effective usefulness over time.

lightweight high strength engineered plywood for making large sliding doors aluminumWhy Large Doors Fail

The effects of gravity, varying degrees of moisture and/or atmospheric change, and the natural limitations of the characteristics of the building materials that comprise the door all contribute to its failure. This causes dissatisfaction for the end user, who has invested a great deal of expense in the design, manufacture and installation of this specialty large door.

Door warping is the number one problem for oversized doors that are otherwise enjoyed by the most discriminating end users.

The Disappointment

No one wants to spend that kind of money on a door that is going to warp, bend, twist, delaminate or compromise the structure or hardware with normal recommended use.

Now, here’s the exciting part…

Sing High Precision Doors can be guaranteed not to warp, bend twist or otherwise fail for 50 years!

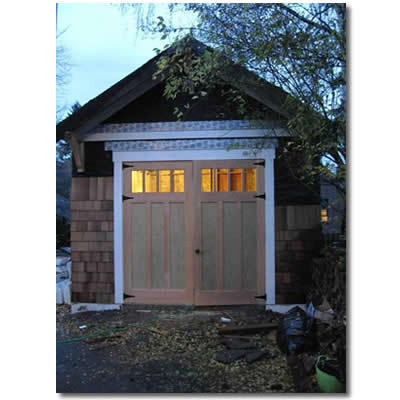

large-lightweight-high-strength-garage-carriage-doorsImagine having a large door that can be installed that will not pave the way for repeated service calls over the life of the door.

Take a look at some of our clients who trust us with those difficult door challenges because they are the most reputable high performers in the industry who only deliver the highest marks in terms of customer satisfaction, especially now that they can deliver a fail-free large door that will not cause frustration for their client’s or their service departments. See clients List.



Highest Precision in Doors

true-flat-definition

Click Image for True Flat

No other building material can be guaranteed to maintain a true flat surface and milled with laser precision for long-term maintenance-free performance for 50 years. This is why you can find the growing demand for the Sing solution from beneath the sea (US Navy) to outer space (NASA) and everywhere in between.

The high precision Sing solution is not just for doors; turned flat these very same Sing Panels can become floors, tables, counter tops, ceilings and roofs. Turned on their sides, these patented panels become walls, moveable partitions or virtually any other type of application.

No Comments

Doors Doors Doors

Sing Door Gallery



Ian Sage No Comments

Big Aluminum Door

Patented Sing Core’s unique attributes enables us to make the biggest doors that are lightweight, extremely strong and Eco-friendly. Sing Core produces the only affordable solution to building a big door that can be guaranteed true flat… and will stay flat for lifetimes. Sing Core doors are pre-insulated and are resistant to climate change, bend, warp, twist, rot and insect threat.

big-aluminum-doors-37-foot-tallBig Doors for Your Big Expectations

Sing Core can help solve the challenges facing architects and designers. Obviously size is where Sing Core shines, but we also help solve other issues that face designers. Some of the functionality solutions that we help to provide include:

Lightweight

The larger a door becomes the heavier it gets. This can be a huge problem because these heavy doors cause strain on the structure and hardware. Lightweight big sing aluminum doors help to mitigate the damages of traditionally too-heavy-to-be-practical doors.

High Strength

There are other lightweight panels solutions that use honeycomb technology, but they simply do not have the strength, that is why the aerospace community is looking at Sing Core. Other lightweight composite core material used in aircraft are may not be heavy, but only weigh-in at 10-to-100 PSI, while Sing Core has been tested at 660 PSI, and could be upgraded to meet nearly any specification(s).

Eco-friendly

Green-eco-friendly-sing-coreIn this topsy-turvy world, Made in the USA Eco-friendly Sing Core is the true green building material that supports our commitment to make the world a better place for all of its inhabitants, while being the most significant, revolutionary new building material invention to be introduced in this century.

Affordable

When compared to other materials, like other space-age composite panels, Sing Core is not only more environmentally friendly but costs much less that the others. Why not get all the added value and benefit of Sing Core at a fraction of the price?

True Flat

One of the problems of big doors, is that they tend to warp or twist over time, making a secure seal all but impossible compromising your project and calling for continued maintenance. Not so with your big Sing door, which can be customized to be true flat literally forever even under the most rigorous conditions.

Stay Flat

It’s one thing to install a big door, especially a large sliding door, and have it be flat when installed… but only a Sing Core big aluminum door will stay flat, virtually forever. This means huge savings in maintenance costs due to having the door’s flatness fail over time.

Pre-insulated

Sing Core’s big aluminum doors are all packed with insulation imbued with an R-value that saves energy, while offering sound dampening qualities. And these values can be custom-suited to meet your specifications for energy efficiency or sound proofing.

Traditional-Torsion-Box-DiagramElement-proof

Your Sing big aluminum door is resistant to climate change and can handle the most extreme weather conditions per your specifications. Due to Sing Core’s unique vertical grain torsion box design these big aluminum doors are will not bend, warp, twist, rot or suffer damage due to insect or vermin assault.

How big can a Sing Door be?

To date, less than 50 feet for a single door panel is no problem… and we would certainly welcome the challenge of providing a solution that exceeds the 50 foot barrier.



Substitute Architectural Spec # 08 13 16 Aluminum Doors

No Comments

How to Attach Wood Planks to Sing Panels

Add-stiles-and-rails-to-your-sing-door-as-anchor-points-drawingSing Panels are so versatile, you can do just about anything with them.

As a matter of fact, prepare to adjust your thinking, because thanks to Sing Wood Planks you can,

Say Goodbye to Tongue and Groove

Tongue and groove joinery is designed to keep wood planks flat when attaching because wood moves. Natural wood (or most any wood product) tends to warp, bend or twist due to environmental changes.

Not necessary when using Sing Hardwood that is created true flat and will stay flat indefinitely.

What if you needed to attach wood or tongue and groove planks to the surface of your Sing Panel?

No problem.

Just make sure that you order your Sing Panel with the solid wood (or other material) implants to meet your requirements.

You can add stiles (vertical implants) or rails (horizontal implants) to have the anchor points that you need to match your expectations.

The only caveat, is that you must leave at least 12 inches of Sing Core material on either side of the implant in order not to compromise the sustained flatness of the lightweight, high-strength panel or door.







Ian Sage No Comments

Architectural Door Specifications

SECTION 08 14 00 – WOOD DOORS

PART 1 – GENERAL

1.1 SUMMARY

  1. Section Includes:
  • Lightweight, high-strength architectural doors utilizing SingCore technology.
  1. Related Sections:
  • Section 06 10 00 – Rough Carpentry: Wood framing.
  • Section 08 71 00 – Door Hardware: Hinges, locks, and accessories.
  • Section 09 91 00 – Painting: Finishing of door surfaces.

1.2 SUBMITTALS

  1. Product Data:
  • Manufacturer’s specifications and installation instructions for SingCore doors.
  1. Shop Drawings:
  • Include door dimensions, core type, face material, edge construction, and hardware preparation.
  1. Warranty:
  • 50 year warranty

1.3 QUALITY ASSURANCE

  1. Manufacturer Qualifications:
  • SingCore patented warp free door slab
  1. Performance Standards:
  • Comply with ANSI/WDMA I.S.1A for architectural wood doors.
  • Meet specified tolerances for flatness, strength, and weight.

1.4 DELIVERY, STORAGE, AND HANDLING

  1. Deliver doors wrapped or crated to protect against damage. B. Store doors in a clean, dry area, lying flat and supported at regular intervals.

1.5 WARRANTY

  1. Manufacturer’s Warranty:
  • Provide a 50-year structural warranty against warping, delamination, or core failure.

PART 2 – PRODUCTS

2.1 MANUFACTURER

  1. Approved Manufacturer:
  • SingCore, Inc.
  • Address:

1134 N Summit Rd.

McCleary, WA 98557

  • Contact-Kate Miller-sales@singcore.com-509-557-0183
  • Website: www.singcore.com

2.2 MATERIALS

  1. Door Core:
  • Patented SingCore core, featuring:
    • High-strength patented core reinforced with rigid torsion box.
    • Insulating foam for thermal and acoustic properties.
    • Lightweight and warp-resistant construction.
  1. Face Material:
  • Options: Depends on final finish (please reach out to SingCore for assistance)
  1. Edge Construction:
  • Solid wood edges or other materials as required to accommodate hardware preparation.
  1. Thickness:
  • Dependent on size and finish

2.3 PERFORMANCE REQUIREMENTS

  1. Strength and Stability:
  • Core compression strength: Minimum 660 PSI.

PART 3 – EXECUTION

3.1 EXAMINATION

  1. Verify that opening dimensions are correct and plumb before door installation.

3.2 INSTALLATION

  1. Install doors in accordance with manufacturer’s instructions and approved shop drawings. B. Fit doors accurately in frames with uniform clearance and alignment. C. Prepare and reinforce doors for hardware as specified.

3.3 FIELD FINISHING

  1. Finish doors in accordance with Section 09 91 00 – Painting. B. Sand surfaces lightly and clean thoroughly before applying finish.

3.4 ADJUSTING AND CLEANING

  1. Adjust hardware for proper function and operation. B. Clean doors using methods recommended by the manufacturer.





Receiving Instructions and Maintenance

Receiving Your Shipment

Inspect Before the Driver Leaves

  • Photograph and document any visible damage to the crate beforethe driver leaves
    • All damage must be noted on the driver’s copy of the BOLfor insurance purposes
    • Photograph the driver-notated BOL before the driver departs

Failure to document damage at delivery may void freight claims.

Delivery Planning and Unloading

  • If you do not have a dock or forklift, arrange a team for hand unloading in advance
    • The freight carrier will contact you when the crate arrives at the local hub to schedule delivery
    • Be prepared during the scheduled delivery window
    • Delays may result in storage charges from the carrier

Arrival and Storage of Sing Products

Upon Arrival

  • Sing products are delivered unfinished
    • Offloading may require a dock or forklift
    • Additional millwork or door shop work is required before the product is retail-ready

Temporary Appearance of Warp

  • When multiple door blanks are shipped stacked or side by side, exterior pieces may appear warped
    • This is normal and does notindicate a defective product
    • Proper acclimatization will restore the panel to true flat condition

Acclimatization Procedure

  • Stand the door on its long edge
    • Keep it at least 12″ away from walls or other surfaces
    • Allow up to 72 hours for acclimatization
    • Re-measure after acclimatization
    • If the door does not return to true flat, document and contact Sing Core

Proper Storage

  • Store doors vertically at all times
    • Do not lean doors against walls
    • Store in a clean, dry, climate-controlled environment

If doors must be stored stacked
• Wrap in plastic
• Place plywood sheets underneath and on top of the stack
• This helps maintain even acclimatization

Jobsite Conditions

  • Deliver doors only after plaster, concrete, and drywall mud have fully cured
    • Do not store doors in damp basements or uncontrolled environments
    • Moisture exposure will void the warranty
    • Unequal moisture on opposite sides of a panel may cause warping

Fabrication

Safety

  • Wear protective eyewear and a filter mask when cutting
    • Position panels so saw blades enter from the exterior face first to prevent chipping

Blocking and Machining

  • Blocking locations are marked in pencil
    • Re-mark blocking if trimmed or sanded away
    • All drilled holes and cutouts must be filled and sealed with an approved sealer

Failure to seal machined areas may void the warranty.

Finishing Requirements

General Requirements

  • All six sides of the door must be fully sealed
    • Includes top and bottom edges
    • Use a high-quality finish rated for at least 15 years
    • Primer or stain alone is notsufficient

Surface Preparation

  • Sand the entire door surface with fine sandpaper before finishing
    • Remove handling marks and oils

Timing

  • After hardware fitting, apply a sealer or first finish coat promptly
    • The sooner finishing begins after acclimatization, the better the door will perform
    • Complete the finishing process without long interruptions

Finish Quality

  • Variations in gloss, texture, or appearance caused by field finishing are not warrantable
    • Consult your finish supplier for proper techniques
    • Finishing should be performed or overseen by a professional millwork company with at least 5 years of experience

Sun Exposure and Color

  • Avoid dark stains or paints on doors exposed to direct sunlight
    • Black or very dark exterior doors exposed to sunlight are not covered under warranty

Exterior Overhang Requirement

All exterior doors must have a sufficient overhang.

Minimum requirements
• Overhang depth must equal half the distance from the bottom of the door to the underside of the overhang
• Overhang width must extend half of that same distance beyond each side of the door

This protects the door from weather exposure and is required for warranty eligibility.

Warranty-Critical Notes

  • Doors must be protected from excessive heat, dryness, humidity, moisture, and direct sunlight
    • Balanced skins are required to maintain warranty
    • All finishing plans must be discussed with Sing Core in advance
    • Mirrors, tile, or similar applied materials will void the warranty
    • Only skins applied by Sing Square Log Home Inc. are covered
    • Skins thicker than 1/8″ require prior written approval
    • Machining of face grooves, reveals, or decorative cuts voids the warranty

Customers are responsible for notifying Sing Square Log Home Inc. in writing of all finishes and skins applied.

Maintenance

  • Exterior finishes deteriorate over time
    • Inspect exterior doors at least once per year
    • Refinish immediately if deterioration is visible
    • Refinish all six sidesof the door
    • Keep inspection and refinishing records to maintain warranty











No Comments

Ceramic

Sing Core is the revolutionary ceramic laminate substrate that supersedes all other ceramic reinforcement while being lightweight, stronger than steel and eco-friendly.

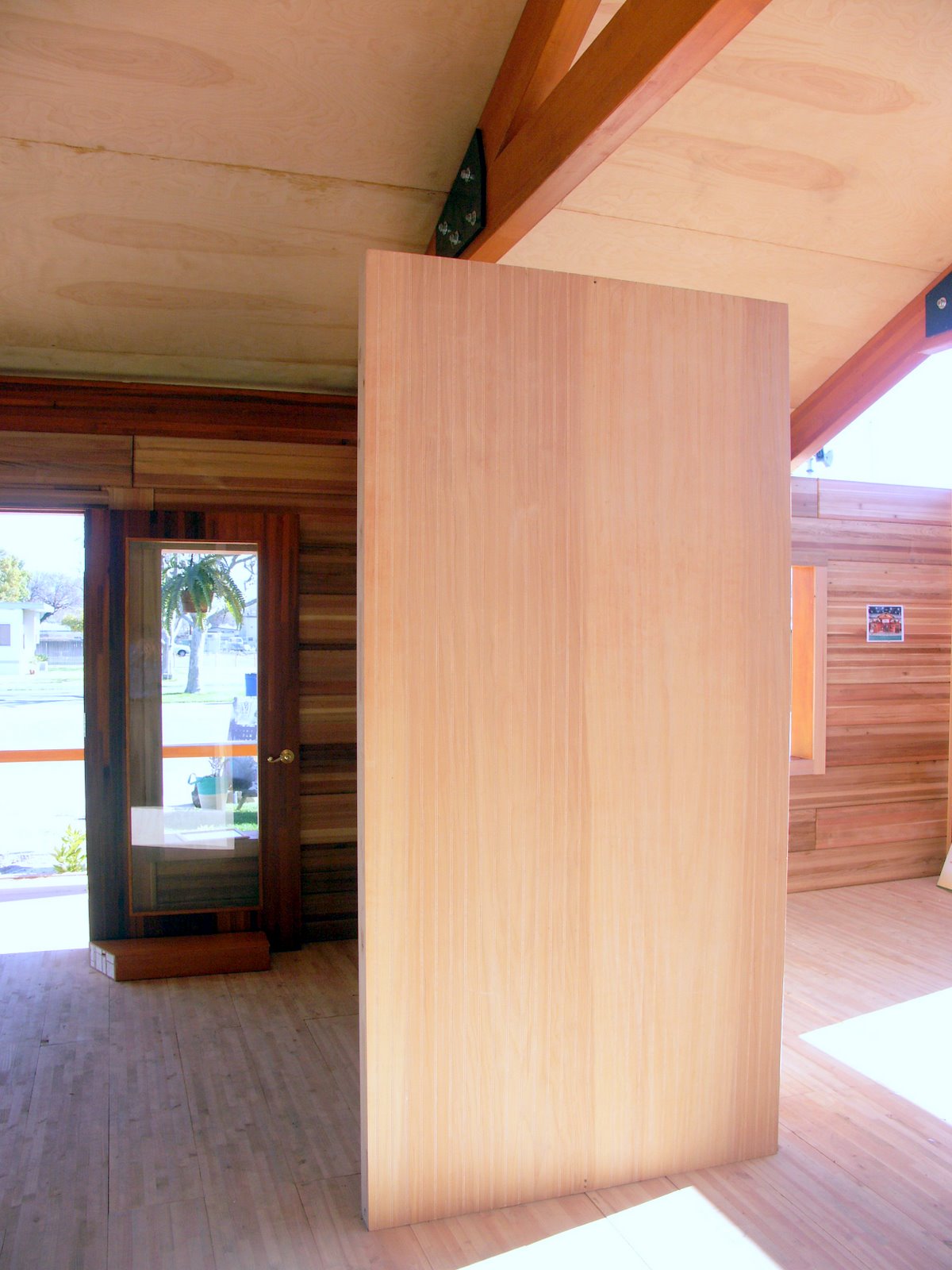

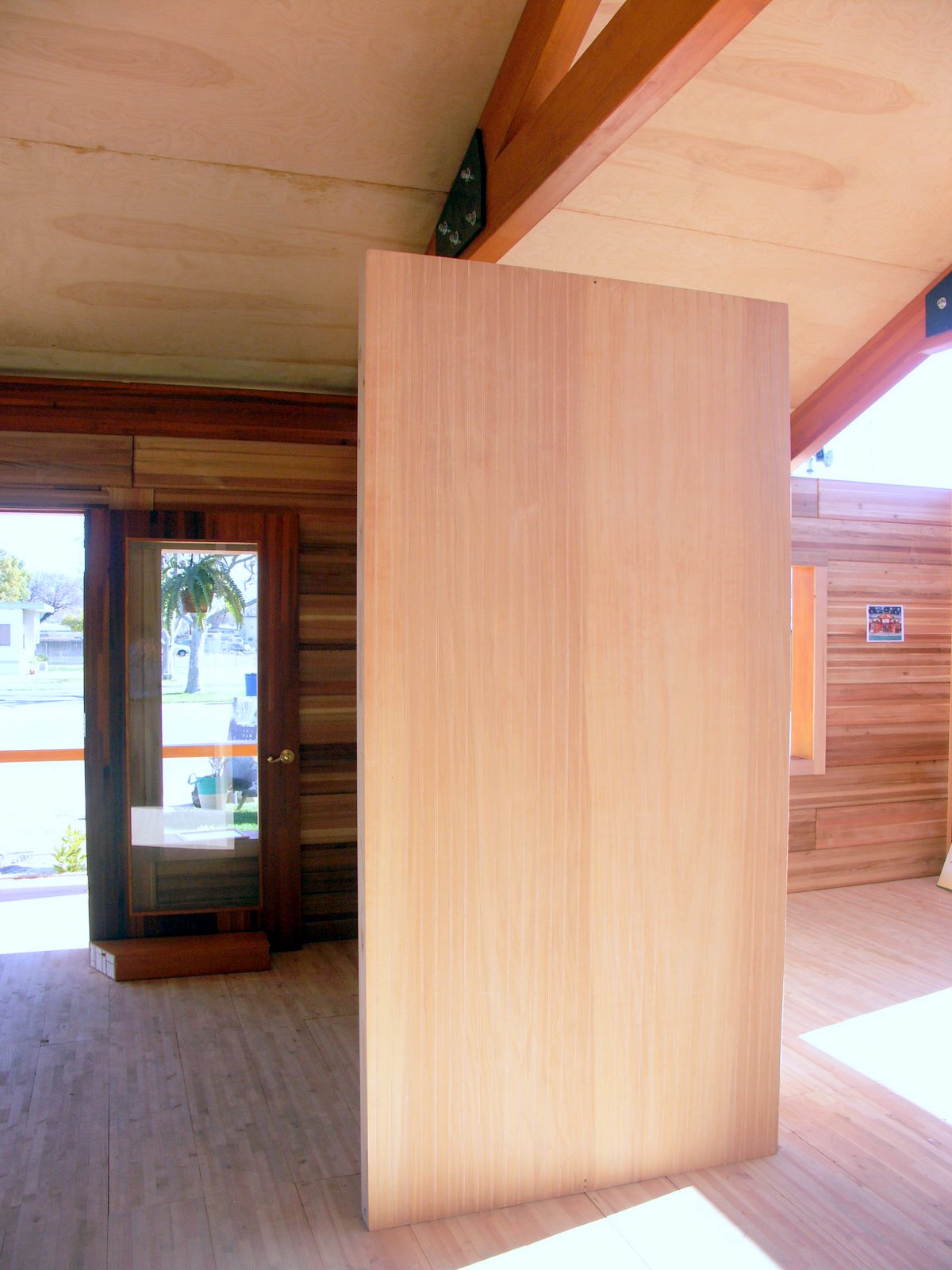

KONICA MINOLTA DIGITAL CAMERAWorking hand-in-hand with architects, designers, contractors and end-users, Sing Core ceramic substrate helps to solve the structural challenges often associated with ceramic-work including remaining true-flat, while maintaining the highest levels of structural integrity and minimizing construction and maintenance costs.

Applications include:

  • Bathrooms
  • Ceramic tile floors
  • Commercial kitchens
  • Countertops
  • Doors
  • Floors
  • Laboratories
  • Marine
  • Pivot doors
  • Refrigeration floors
  • Saunas
  • Stair treads
  • Tables
  • Wall art
  • Walls

Our Sing composite ceramic skinned panels are ideal for use as fireproof doors. With the Sing Honeycomb as a substrate it will reduce the impact which is the major cause of cracking on ceramics. See our YouTube channel to see the unbreakable mirror video by Sing Honeycomb. This is the same principle that will keep ceramic panels strong.

Other Sing composite panel solutions can be found as other building materials.
